Published: Jun 20, 2024 by Isaac Johnson

Today, we’ll look at a few apps that have been in my backlog to check out. The first is from Linuxserver and is Netbox. It’s a Datacenter management suite aimed to create a full site management platform. The next is a local binary, ‘Encrypted Notedpad II’ which is a go-based PGP encrypted Notepad. One has to compile to use as the binaries are pay-for. Lastly, we’ll look at CryptPad, a nice Open-Source web-based app that is like Google Docs with extra encryption and destruction features.

Netbox

From the Linuxserver group comes Netbox.

We can launch with docker using

docker run -d \
  --name=netbox \
  -e PUID=1000 \
  -e PGID=1000 \
  -e TZ=Etc/UTC \
  -e SUPERUSER_EMAIL= \
  -e SUPERUSER_PASSWORD= \
  -e ALLOWED_HOST= \
  -e DB_NAME= \
  -e DB_USER= \
  -e DB_PASSWORD= \
  -e DB_HOST= \
  -e DB_PORT= \
  -e REDIS_HOST= \
  -e REDIS_PORT= \
  -e REDIS_PASSWORD= \
  -e REDIS_DB_TASK= \
  -e REDIS_DB_CACHE= \
  -e BASE_PATH= `#optional` \
  -e REMOTE_AUTH_ENABLED= `#optional` \
  -e REMOTE_AUTH_BACKEND= `#optional` \
  -e REMOTE_AUTH_HEADER= `#optional` \
  -e REMOTE_AUTH_AUTO_CREATE_USER= `#optional` \
  -e REMOTE_AUTH_DEFAULT_GROUPS= `#optional` \
  -e REMOTE_AUTH_DEFAULT_PERMISSIONS= `#optional` \
  -p 8000:8000 \
  -v /path/to/netbox/config:/config \
  --restart unless-stopped \
  lscr.io/linuxserver/netbox:latest

But I want to skip right to Kubernetes.

I’ll first create the postgres and redis instances

$ cat database.yaml
apiVersion: v1
kind: Service
metadata:
  name: postgres-service
spec:
  selector:
    app: postgres
  ports:
    - protocol: TCP
      port: 5432
      targetPort: 5432
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: postgres-deployment
spec:
  replicas: 1
  selector:
    matchLabels:
      app: postgres
  template:
    metadata:
      labels:
        app: postgres
    spec:
      containers:
        - name: postgres
          image: postgres:latest
          env:
            - name: POSTGRES_USER
              value: mydbuser
            - name: POSTGRES_PASSWORD
              value: NotThePassWord
          ports:
            - containerPort: 5432
          volumeMounts:
            - name: postgres-pvc
              mountPath: /var/lib/postgresql/data
      volumes:
        - name: postgres-pvc
          persistentVolumeClaim:
            claimName: postgres-pvc
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: postgres-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 1Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: redis-deployment
spec:
  replicas: 1
  selector:
    matchLabels:
      app: redis
  template:
    metadata:
      labels:
        app: redis
    spec:
      containers:
        - name: redis
          image: redis:latest
          env:
            - name: REDIS_PASSWORD
              value: myredispassword
          ports:
            - containerPort: 6379
---
apiVersion: v1
kind: Service
metadata:
  name: redis-service
spec:
  selector:
    app: redis
  ports:
    - protocol: TCP
      port: 6379
      targetPort: 6379

I’ll create the namespace

$ kubectl create ns netbox
namespace/netbox created

Then I can add the objects

$ kubectl apply -f database.yaml -n netbox
service/postgres-service created
deployment.apps/postgres-deployment created
persistentvolumeclaim/postgres-pvc created
deployment.apps/redis-deployment created
service/redis-service created

A quick shows everything is in order

$ kubectl get pvc -n netbox
NAME           STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   AGE
postgres-pvc   Bound    pvc-438b6117-83e8-4030-9bfb-5bb2b2385f90   1Gi        RWO            local-path     4m17s

$ kubectl get pods -n netbox
NAME                                   READY   STATUS    RESTARTS   AGE
redis-deployment-5f78879c54-9qb22      1/1     Running   0          4m21s
postgres-deployment-8598888695-fbdc7   1/1     Running   0          109s

$ kubectl get svc -n netbox
NAME               TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)    AGE
postgres-service   ClusterIP   10.43.92.40   <none>        5432/TCP   4m32s
redis-service      ClusterIP   10.43.78.70   <none>        6379/TCP   4m31s

Next, If I did this right, I should have the right Redis and PostgreSQL in the app yaml

$ cat app.yaml
apiVersion: v1
kind: Service
metadata:
  name: netbox-service
spec:
  selector:
    app: netbox
  ports:
    - protocol: TCP
      port: 8000
      targetPort: 8000
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: netbox-deployment
spec:
  replicas: 1
  selector:
    matchLabels:
      app: netbox
  template:
    metadata:
      labels:
        app: netbox
    spec:
      containers:
        - name: netbox
          image: lscr.io/linuxserver/netbox:latest
          env:
            - name: PUID
              value: "1000"
            - name: PGID
              value: "1000"
            - name: TZ
              value: "Etc/UTC"
            - name: SUPERUSER_EMAIL
              value: "isaac@freshbrewed.science"
            - name: SUPERUSER_PASSWORD
              value: "FakePasswordNotIt"
            - name: DB_HOST
              value: "postgres-service"
            - name: DB_USER
              value: "mydbuser"
            - name: DB_PASSWORD
              value: "NotThePassWord"
            - name: REDIS_HOST
              value: "redis-service"
            - name: REDIS_PASSWORD
              value: "myredispassword"
            # Add other environment variables as needed
          ports:
            - containerPort: 8000
          volumeMounts:
            - name: netbox-config
              mountPath: /config
      volumes:
        - name: netbox-config
          persistentVolumeClaim:
            claimName: netbox-pvc
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: netbox-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 1Gi

I can then apply

$ kubectl apply -f ./app.yaml -n netbox
service/netbox-service created
deployment.apps/netbox-deployment created
persistentvolumeclaim/netbox-pvc created

I can see the new pod come up

$ kubectl get pods -n netbox
NAME                                   READY   STATUS    RESTARTS   AGE
redis-deployment-5f78879c54-9qb22      1/1     Running   0          12m
postgres-deployment-8598888695-fbdc7   1/1     Running   0          9m50s
netbox-deployment-54dd46d65-xbt7m      1/1     Running   0          2m36s

I think I can now add an A record

$ az account set --subscription "Pay-As-You-Go" && az network dns record-set a add-record -g idjdnsrg -z tpk.pw -a 75.73.224.240 -n

Then an ingress that could use it

$ cate netbox.ingress.yaml
$ cat netbox.ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  annotations:
    cert-manager.io/cluster-issuer: azuredns-tpkpw
    ingress.kubernetes.io/ssl-redirect: "true"
    kubernetes.io/ingress.class: nginx
    kubernetes.io/tls-acme: "true"
    nginx.ingress.kubernetes.io/ssl-redirect: "true"
    nginx.org/websocket-services: netbox-service
  name: netbox-ingress
spec:
  rules:
  - host: netbox.tpk.pw
    http:
      paths:
      - backend:
          service:
            name: netbox-service
            port:
              number: 8000
        path: /
        pathType: Prefix
  tls:
  - hosts:
    - netbox.tpk.pw
    secretName: netbox-tls

which can be easily applied

$ kubectl apply -f ./netbox.ingress.yaml -n netbox
ingress.networking.k8s.io/netbox-ingress created

I tend to gloss over it, but I should from time to time point out that the cluserissuer uses Azure DNS with an SP.

It’s setup like

$ kubectl get clusterissuer azuredns-tpkpw -o yaml
apiVersion: cert-manager.io/v1
kind: ClusterIssuer
metadata:
  creationTimestamp: "2024-03-03T17:31:15Z"
  generation: 1
  name: azuredns-tpkpw
  resourceVersion: "154819"
  uid: d3eb617b-7784-454a-9be5-60529d50eeab
spec:
  acme:
    email: isaac.johnson@gmail.com
    preferredChain: ""
    privateKeySecretRef:
      name: azuredns-tpkpw
    server: https://acme-v02.api.letsencrypt.org/directory
    solvers:
    - dns01:
        azureDNS:
          clientID: 7d420c37-xxxx-xxxx-xxxx-cd3e3066ec00
          clientSecretSecretRef:
            key: client-secret
            name: azuredns-config
          environment: AzurePublicCloud
          hostedZoneName: tpk.pw
          resourceGroupName: idjdnsrg
          subscriptionID: d955c0ba-xxxx-xxxx-xxxx-a29a-8fed74cbb22d
          tenantID: 28c575f6-xxxx-xxxx-xxxx-8e7c-7e6d1ba0eb4a
status:
  acme:
    lastPrivateKeyHash: EB1ZBoDVqpcHfESDWkjtRqFizP+iUjLUnnarg1/tKqk=
    lastRegisteredEmail: isaac.johnson@gmail.com
    uri: https://acme-v02.api.letsencrypt.org/acme/acct/1581682847
  conditions:
  - lastTransitionTime: "2024-03-03T17:31:16Z"
    message: The ACME account was registered with the ACME server
    observedGeneration: 1
    reason: ACMEAccountRegistered
    status: "True"
    type: Ready

Once I see the cert is valid

$ kubectl get cert -n netbox
NAME         READY   SECRET       AGE
netbox-tls   True    netbox-tls   2m32s

Redis auth seemed to block me, so I tore the whole stack down and recreated. I also added health checks and startup probes to the app:

$ cat app.yaml
apiVersion: v1
kind: Service
metadata:
  name: netbox-service
spec:
  selector:
    app: netbox
  ports:
    - protocol: TCP
      port: 8000
      targetPort: 8000
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: netbox-deployment
spec:
  replicas: 1
  selector:
    matchLabels:
      app: netbox
  template:
    metadata:
      labels:
        app: netbox
    spec:
      containers:
        - name: netbox
          image: lscr.io/linuxserver/netbox:latest
          env:
            - name: PUID
              value: "1000"
            - name: PGID
              value: "1000"
            - name: TZ
              value: "Etc/UTC"
            - name: SUPERUSER_EMAIL
              value: "isaac@freshbrewed.science"
            - name: SUPERUSER_PASSWORD
              value: "FakePasswordNotIt"
            - name: DB_HOST
              value: "postgres-service"
            - name: DB_USER
              value: "mydbuser"
            - name: DB_PASSWORD
              value: "NotThePassWord"
            - name: REDIS_HOST
              value: "redis-service"
            # Add other environment variables as needed
          ports:
            - containerPort: 8000
          volumeMounts:
            - name: netbox-config
              mountPath: /config
          readinessProbe:
            tcpSocket:
              port: 8000
            initialDelaySeconds: 30
            periodSeconds: 10
            failureThreshold: 3
          livenessProbe:
            tcpSocket:
              port: 8000
            initialDelaySeconds: 60
            periodSeconds: 30
            failureThreshold: 5
      volumes:
        - name: netbox-config
          persistentVolumeClaim:
            claimName: netbox-pvc
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: netbox-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 1Gi

and the services

$ cat database.yaml
apiVersion: v1
kind: Service
metadata:
  name: postgres-service
spec:
  selector:
    app: postgres
  ports:
    - protocol: TCP
      port: 5432
      targetPort: 5432
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: postgres-deployment
spec:
  replicas: 1
  selector:
    matchLabels:
      app: postgres
  template:
    metadata:
      labels:
        app: postgres
    spec:
      containers:
        - name: postgres
          image: postgres:latest
          env:
            - name: POSTGRES_USER
              value: mydbuser
            - name: POSTGRES_PASSWORD
              value: NotThePassWord
            - name: POSTGRES_DB
              value: netbox
          ports:
            - containerPort: 5432
          volumeMounts:
            - name: postgres-pvc
              mountPath: /var/lib/postgresql/data
      volumes:
        - name: postgres-pvc
          persistentVolumeClaim:
            claimName: postgres-pvc
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: postgres-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 1Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: redis-deployment
spec:
  replicas: 1
  selector:
    matchLabels:
      app: redis
  template:
    metadata:
      labels:
        app: redis
    spec:
      containers:
        - name: redis
          image: redis:latest
          ports:
            - containerPort: 6379
---
apiVersion: v1
kind: Service
metadata:
  name: redis-service
spec:
  selector:
    app: redis
  ports:
    - protocol: TCP
      port: 6379
      targetPort: 6379

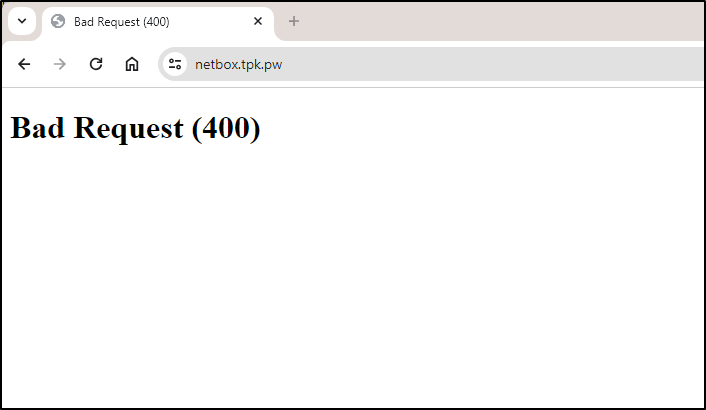

But I keep getting a 400 bad request

i did some searching and others suggested the absence of an “ALLOWED_HOSTS” would do that.

I added to the app yaml

... snip ...

            - name: ALLOWED_HOST
              value: "netbox.tpk.pw"
... snip ...

Then applied

$ kubectl apply -f ./netbox.app.yaml -n netbox
service/netbox-service unchanged
deployment.apps/netbox-deployment configured
persistentvolumeclaim/netbox-pvc unchanged

Gemini suggested

... snip ...

            - name: ALLOWED_HOST
              value: "*"
... snip ...

I can see it’s running just fine

$ kubectl logs netbox-deployment-84956dc6d-ldk25 -n netbox
[migrations] started
[migrations] no migrations found
───────────────────────────────────────

      ██╗     ███████╗██╗ ██████╗
      ██║     ██╔════╝██║██╔═══██╗
      ██║     ███████╗██║██║   ██║
      ██║     ╚════██║██║██║   ██║
      ███████╗███████║██║╚██████╔╝
      ╚══════╝╚══════╝╚═╝ ╚═════╝

   Brought to you by linuxserver.io
───────────────────────────────────────

To support LSIO projects visit:
https://www.linuxserver.io/donate/

───────────────────────────────────────
GID/UID
───────────────────────────────────────

User UID:    1000
User GID:    1000
───────────────────────────────────────
Linuxserver.io version: v4.0.3-ls204
Build-date: 2024-06-04T18:42:09+00:00
───────────────────────────────────────

Building local documentation
/lsiopy/lib/python3.12/site-packages/strawberry/utils/deprecations.py:23: UserWarning: _type_definition is deprecated, use __strawberry_definition__ instead
  self.warn()
Operations to perform:
  Apply all migrations: account, auth, circuits, contenttypes, core, dcim, django_rq, extras, ipam, sessions, social_django, taggit, tenancy, users, virtualization, vpn, wireless
Running migrations:
  No migrations to apply.
Superuser creation skipped. Already exists.
[custom-init] No custom files found, skipping...
[uWSGI] getting INI configuration from uwsgi.ini
[uwsgi-static] added mapping for /static => static
*** Starting uWSGI 2.0.25.1 (64bit) on [Wed Jun  5 11:32:47 2024] ***
compiled with version: 13.2.1 20240309 on 17 May 2024 06:11:37
os: Linux-5.15.0-97-generic #107-Ubuntu SMP Wed Feb 7 13:26:48 UTC 2024
nodename: netbox-deployment-84956dc6d-ldk25
machine: x86_64
clock source: unix
pcre jit disabled
detected number of CPU cores: 4
current working directory: /app/netbox/netbox
detected binary path: /usr/sbin/uwsgi
your memory page size is 4096 bytes
detected max file descriptor number: 1048576
building mime-types dictionary from file /etc/mime.types...1390 entry found
lock engine: pthread robust mutexes
thunder lock: disabled (you can enable it with --thunder-lock)
uwsgi socket 0 bound to TCP address :8000 fd 3
Python version: 3.12.3 (main, Apr 18 2024, 07:52:31) [GCC 13.2.1 20240309]
PEP 405 virtualenv detected: /lsiopy
Set PythonHome to /lsiopy
Connection to localhost (127.0.0.1) 8000 port [tcp/*] succeeded!
Python main interpreter initialized at 0x7fb38612e688
python threads support enabled
your server socket listen backlog is limited to 100 connections
your mercy for graceful operations on workers is 60 seconds
mapped 203184 bytes (198 KB) for 1 cores
*** Operational MODE: single process ***
running "exec:python3 ./manage.py collectstatic --noinput" (pre app)...
[ls.io-init] done.

493 static files copied to '/app/netbox/netbox/static'.
running "exec:python3 ./manage.py remove_stale_contenttypes --no-input" (pre app)...
running "exec:python3 ./manage.py clearsessions" (pre app)...
WSGI app 0 (mountpoint='') ready in 2 seconds on interpreter 0x7fb38612e688 pid: 156 (default app)
*** uWSGI is running in multiple interpreter mode ***
spawned uWSGI master process (pid: 156)
spawned uWSGI worker 1 (pid: 191, cores: 1)
[uwsgi-daemons] spawning "python3 ./manage.py rqworker" (uid: 1000 gid: 1000)
No queues have been specified. This process will service the following queues by default: high, default, low
11:33:20 Worker rq:worker:6107c061b3de4c22a1ae273d7e071532 started with PID 192, version 1.16.2
11:33:20 Subscribing to channel rq:pubsub:6107c061b3de4c22a1ae273d7e071532
11:33:20 *** Listening on high, default, low...
11:33:20 Scheduler for default, high, low started with PID 194
11:33:20 Cleaning registries for queue: high
11:33:20 Cleaning registries for queue: default
11:33:20 Cleaning registries for queue: low
[pid: 191|app: 0|req: 1/1] 10.42.0.20 () {54 vars in 1004 bytes} [Wed Jun  5 11:33:28 2024] GET /favicon.ico => generated 143 bytes in 6307 msecs (HTTP/1.1 400) 3 headers in 121 bytes (1 switches on core 0)
[pid: 191|app: 0|req: 2/2] 10.42.0.20 () {58 vars in 1103 bytes} [Wed Jun  5 11:33:44 2024] GET / => generated 143 bytes in 11 msecs (HTTP/1.1 400) 3 headers in 121 bytes (1 switches on core 0)
[pid: 191|app: 0|req: 3/3] 10.42.0.20 () {54 vars in 1004 bytes} [Wed Jun  5 11:33:44 2024] GET /favicon.ico => generated 143 bytes in 12 msecs (HTTP/1.1 400) 3 headers in 121 bytes (1 switches on core 0)
[pid: 191|app: 0|req: 4/4] 10.42.0.20 () {58 vars in 1103 bytes} [Wed Jun  5 11:33:45 2024] GET / => generated 143 bytes in 11 msecs (HTTP/1.1 400) 3 headers in 121 bytes (1 switches on core 0)
[pid: 191|app: 0|req: 5/5] 10.42.0.20 () {54 vars in 1004 bytes} [Wed Jun  5 11:33:45 2024] GET /favicon.ico => generated 143 bytes in 18 msecs (HTTP/1.1 400) 3 headers in 121 bytes (1 switches on core 0)

But the app just dumps

Same with just a basic port-forward

Sometimes these settings are populated into the database at create time. I’ll try a full rotation of the stack (minus ingress)

$ kubectl delete -f ./netbox.db.yaml -n netbox
service "postgres-service" deleted
deployment.apps "postgres-deployment" deleted
persistentvolumeclaim "postgres-pvc" deleted
deployment.apps "redis-deployment" deleted
service "redis-service" deleted
$ kubectl delete -f ./netbox.app.yaml -n netbox
service "netbox-service" deleted
deployment.apps "netbox-deployment" deleted
persistentvolumeclaim "netbox-pvc" deleted
$ kubectl apply -f ./netbox.db.yaml -n netbox
service/postgres-service created
deployment.apps/postgres-deployment created
persistentvolumeclaim/postgres-pvc created
deployment.apps/redis-deployment created
service/redis-service created
# wait for the pods to come up
$ kubectl apply -f ./netbox.app.yaml -n netbox
service/netbox-service created
deployment.apps/netbox-deployment created
persistentvolumeclaim/netbox-pvc created

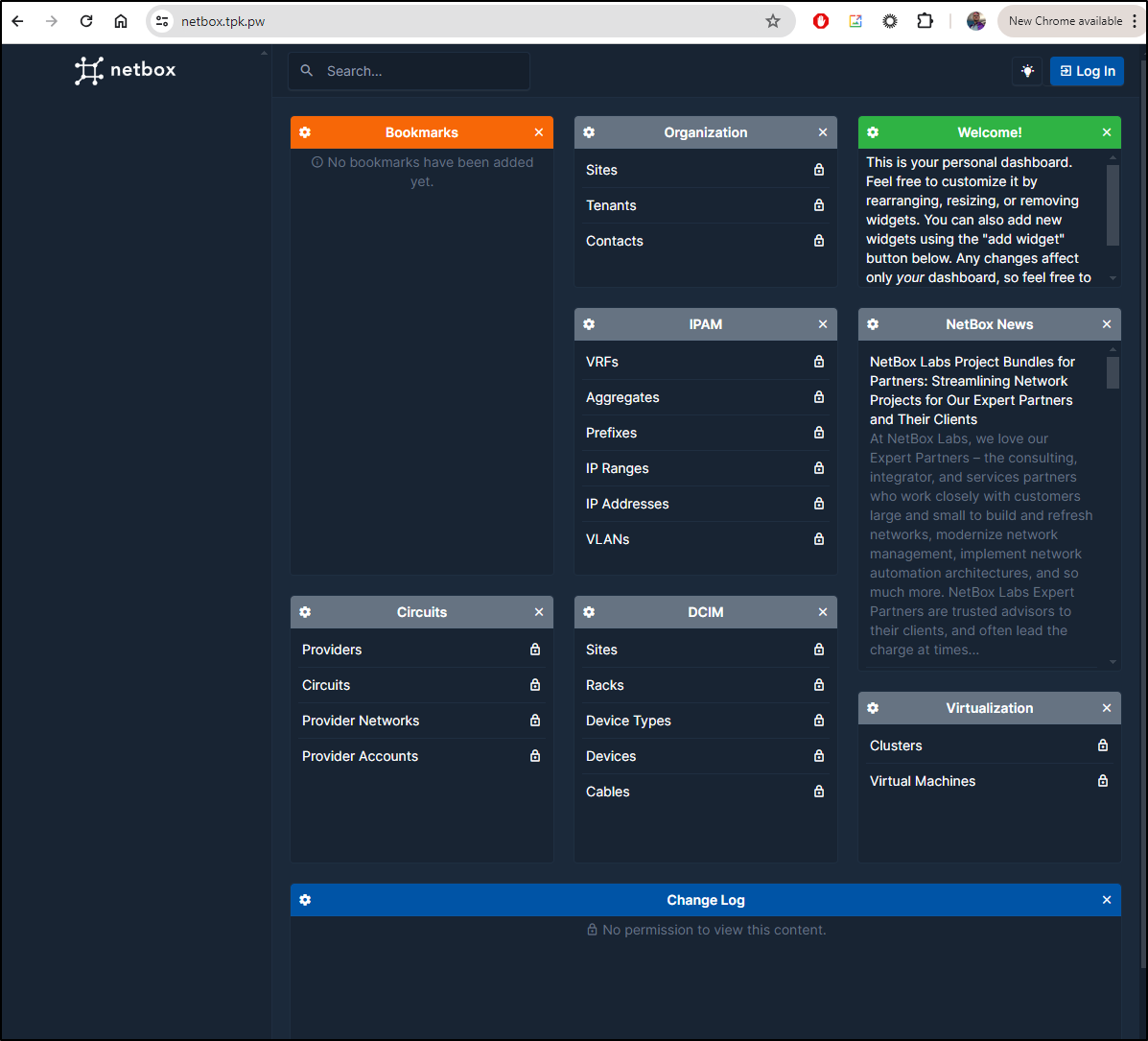

That was it!

seems my next issue is the superuser email and password i used are not taking

with the error

I verified the login

root@netbox-deployment-84956dc6d-fwsgx:/# set | grep SUPER
SUPERUSER_EMAIL=isaac@freshbrewed.science
SUPERUSER_PASSWORD=FakePasswordNotIt

When I looked up some KT on user adds, seems the username is admin, that is just “admin’s email”.

When I used admin and FakePasswordNotIt it worked.

There is a lot here, I admit

However, I found myself just poking around looking for some kind of automation, scanning, something:

At the least there appear to be webhooks

That can be tied to event rules

There is also a rich REST API

Adding users

I can hop on the pod to create a new super user if either I forgot the admin password or am locked out

$ kubectl exec -it netbox-deployment-84956dc6d-fwsgx -n netbox -- /bin/bash
root@netbox-deployment-84956dc6d-fwsgx:/# cd /app/netbox/netbox
root@netbox-deployment-84956dc6d-fwsgx:/app/netbox/netbox# python3 ./manage.py createsuperuser
Username: isaac
Email address: isaac.johnson@gmail.com
Password:
Password (again):
Superuser created successfully.

which I could show works

I can also use it to change a password

root@netbox-deployment-84956dc6d-fwsgx:/app/netbox/netbox# python3 ./manage.py changepassword isaac
Changing password for user 'isaac'
Password:
Password (again):
Password changed successfully for user 'isaac'

Encrypted Notepad 2

You can find EncryptedNotepad2 on Github. It’s the logical successor to Encrypted Notepad which used to be on SourceForge.

You can just buy it from the author if you want and download compiled binaries.

However, we’ll build it ourselves.

Just clone the repo

builder@DESKTOP-QADGF36:~/Workspaces$ git clone https://github.com/ivoras/EncryptedNotepad2.git
Cloning into 'EncryptedNotepad2'...
remote: Enumerating objects: 254, done.
remote: Counting objects: 100% (254/254), done.
remote: Compressing objects: 100% (176/176), done.
remote: Total 254 (delta 143), reused 180 (delta 72), pack-reused 0
Receiving objects: 100% (254/254), 1.92 MiB | 7.73 MiB/s, done.
Resolving deltas: 100% (143/143), done.
builder@DESKTOP-QADGF36:~/Workspaces$ cd EncryptedNotepad2/

My focal just had GCC 9, so I needed to add 11

I also needed some X11 libraries

sudo apt install libxft-dev libxcursor-dev libxrandr-dev libxinerama-dev libxi-dev mesa-common-dev golang gcc libgl1-mesa-dev xorg-dev

I saw the build

$ go build
go build github.com/go-gl/gl/v2.1/gl:
# pkg-config --cflags  -- gl gl
Package gl was not found in the pkg-config search path.
Perhaps you should add the directory containing `gl.pc'
to the PKG_CONFIG_PATH environment variable
No package 'gl' found
Package gl was not found in the pkg-config search path.
Perhaps you should add the directory containing `gl.pc'
to the PKG_CONFIG_PATH environment variable
No package 'gl' found
pkg-config: exit status 1

Then i saw a post on stackoverflow that suggested fixing the PKG_CONFIG_PATH

builder@DESKTOP-QADGF36:~/Workspaces/EncryptedNotepad2$ export PKG_CONFIG_PATH=/usr/lib/x86_64-linux-gnu/pkgconfig
builder@DESKTOP-QADGF36:~/Workspaces/EncryptedNotepad2$ go build

github.com/ivoras/EncryptedNotepad2: cannot compile Go 1.22 code

I then had to download the latest go from godev

I fixed my path (since ubuntu has 1.13 in there) and tried again

builder@DESKTOP-QADGF36:~/Workspaces/EncryptedNotepad2$ export PATH=/usr/local/go/bin:$PATH
builder@DESKTOP-QADGF36:~/Workspaces/EncryptedNotepad2$ go build

I can now launch it from WSL

I tried building in Windows as well

C:\Users\isaac\Workspaces\EncryptedNotepad2>go build
go: downloading fyne.io/fyne/v2 v2.4.5
go: downloading github.com/ProtonMail/gopenpgp/v2 v2.7.5
go: downloading github.com/ProtonMail/go-crypto v0.0.0-20230717121422-5aa5874ade95
go: downloading github.com/ProtonMail/go-mime v0.0.0-20230322103455-7d82a3887f2f
go: downloading github.com/pkg/errors v0.9.1
go: downloading golang.org/x/crypto v0.14.0
go: downloading golang.org/x/text v0.13.0
go: downloading github.com/cloudflare/circl v1.3.3
go: downloading github.com/fsnotify/fsnotify v1.6.0
go: downloading golang.org/x/sys v0.13.0
go: downloading github.com/go-text/typesetting v0.1.0
go: downloading github.com/yuin/goldmark v1.5.5
go: downloading golang.org/x/image v0.11.0
go: downloading github.com/fredbi/uri v1.0.0
go: downloading fyne.io/systray v1.10.1-0.20231115130155-104f5ef7839e
go: downloading github.com/fyne-io/image v0.0.0-20220602074514-4956b0afb3d2
go: downloading github.com/go-gl/glfw/v3.3/glfw v0.0.0-20240306074159-ea2d69986ecb
go: downloading github.com/go-text/render v0.1.0
go: downloading github.com/srwiley/rasterx v0.0.0-20220730225603-2ab79fcdd4ef
go: downloading github.com/srwiley/oksvg v0.0.0-20221011165216-be6e8873101c
go: downloading github.com/go-gl/gl v0.0.0-20211210172815-726fda9656d6
go: downloading github.com/jsummers/gobmp v0.0.0-20151104160322-e2ba15ffa76e
go: downloading github.com/tevino/abool v1.2.0
go: downloading golang.org/x/net v0.17.0
package github.com/ivoras/EncryptedNotepad2
        imports fyne.io/fyne/v2/app
        imports fyne.io/fyne/v2/internal/driver/glfw
        imports fyne.io/fyne/v2/internal/driver/common
        imports fyne.io/fyne/v2/internal/painter/gl
        imports github.com/go-gl/gl/v2.1/gl: build constraints exclude all Go files in C:\Users\isaac\go\pkg\mod\github.com\go-gl\gl@v0.0.0-20211210172815-726fda9656d6\v2.1\gl

I tried manually installing deps

C:\Users\isaac\Workspaces\EncryptedNotepad2>go get fyne.io/fyne/v2/app
go: downloading fyne.io/fyne v1.4.3
go: downloading github.com/gopherjs/gopherjs v1.17.2
go: downloading github.com/godbus/dbus/v5 v5.1.0
go: downloading honnef.co/go/js/dom v0.0.0-20210725211120-f030747120f2
go: downloading github.com/stretchr/testify v1.8.4
go: downloading github.com/fyne-io/gl-js v0.0.0-20220119005834-d2da28d9ccfe
go: downloading github.com/fyne-io/glfw-js v0.0.0-20220120001248-ee7290d23504
go: downloading golang.org/x/mobile v0.0.0-20230531173138-3c911d8e3eda
go: downloading github.com/pmezard/go-difflib v1.0.0
go: downloading github.com/davecgh/go-spew v1.1.1
go: downloading gopkg.in/yaml.v3 v3.0.1

C:\Users\isaac\Workspaces\EncryptedNotepad2>go get fyne.io/fyne/v2/internal/driver/glfw

C:\Users\isaac\Workspaces\EncryptedNotepad2>go get fyne.io/fyne/v2/internal/driver/common

C:\Users\isaac\Workspaces\EncryptedNotepad2>go get fyne.io/fyne/v2/internal/painter/gl

C:\Users\isaac\Workspaces\EncryptedNotepad2>go get github.com/go-gl/gl/v2.1/gl
go: downloading github.com/go-gl/gl v0.0.0-20231021071112-07e5d0ea2e71
go: upgraded github.com/go-gl/gl v0.0.0-20211210172815-726fda9656d6 => v0.0.0-20231021071112-07e5d0ea2e71

But no matter what i did, i just got stuck with

C:\Users\isaac\Workspaces\EncryptedNotepad2>go build -o myapp.exe -a
package github.com/ivoras/EncryptedNotepad2
        imports fyne.io/fyne/v2/app
        imports fyne.io/fyne/v2/internal/driver/glfw
        imports fyne.io/fyne/v2/internal/driver/common
        imports fyne.io/fyne/v2/internal/painter/gl
        imports github.com/go-gl/gl/v2.1/gl: build constraints exclude all Go files in C:\Users\isaac\go\pkg\mod\github.com\go-gl\gl@v0.0.0-20231021071112-07e5d0ea2e71\v2.1\gl

C:\Users\isaac\Workspaces\EncryptedNot

I also attempted to do the same in linux hoping perhaps it would compile for windows

builder@DESKTOP-QADGF36:~/Workspaces/EncryptedNotepad2$ env GOOS=windows GOARCH=amd64 go build -o encnp2.exe
go: downloading github.com/tevino/abool v1.2.0
package github.com/ivoras/EncryptedNotepad2
        imports fyne.io/fyne/v2/app
        imports fyne.io/fyne/v2/internal/driver/glfw
        imports fyne.io/fyne/v2/internal/driver/common
        imports fyne.io/fyne/v2/internal/painter/gl
        imports github.com/go-gl/gl/v2.1/gl: build constraints exclude all Go files in /home/builder/go/pkg/mod/github.com/go-gl/gl@v0.0.0-20211210172815-726fda9656d6/v2.1/gl

Usage

I’ll save a text doc to my windows Documents folder

We need to use a password

If we open the file now in Windows, we can see it is encrypted

We can also see this using linux

$ cat /mnt/c/Users/isaac/Documents/test.txt
-----BEGIN PGP MESSAGE-----
Version: GopenPGP 2.7.5
Comment: https://gopenpgp.org

wy4ECQMISYzoGyjEz/jgLfkXZkhmXtCdgWdisQ1NrSKoeOxQT9/n/o6eP6C1dPx9
0kABYNDIiizXTL8hhAkbVkT1epaF4SlVavbUguoazczZ+6y9d+qL0L8xK65DIzFg
ntUxvKSKvLZFTb5H/vK32iJ6
=36Qn
-----END PGP MESSAGE-----

However, I cannot seem to find it when i want to open

If we save with the .asc extension, then we can find it

I can then enter the password I used when I saved it

Then I see the contents

and if I enter the wrong password

AzDO

I can do a similar build in AzDO

jobs:
- job: Job_1
  displayName: Agent job 1
  pool:
    vmImage: ubuntu-latest
  steps:
  - checkout: self
    clean: true
    fetchTags: false
  - task: Bash@3
    displayName: Install X11
    inputs:
      targetType: inline
      script: >-
        # Write your commands here
        sudo apt update

        sudo apt install -y libxft-dev libxcursor-dev libxrandr-dev libxinerama-dev libxi-dev mesa-common-dev gcc libgl1-mesa-dev xorg-dev
  - task: GoTool@0
    displayName: Use Go 1.22.4
    inputs:
      version: 1.22.4
  - task: Go@0
    displayName: go get
  - task: Go@0
    displayName: go build
    inputs:
      command: build
  - task: PublishPipelineArtifact@1
    displayName: Publish Pipeline Artifact
    inputs:
      path: $(Pipeline.Workspace)/s
      artifactName: EncryptedNotepad2

I can now see a compiled artifact

I’ll now try going to a different host and download the binary to test.

I get a seg fault. Even when adding all the build libraries from the other

$ /mnt/c/Users/isaac/Downloads/EncryptedNotepad2
2024/06/06 19:36:40 Fyne error:  Unable to connect to session D-Bus
2024/06/06 19:36:40   Cause: dial unix /run/user/1000/bus: connect: no such file or directory
2024/06/06 19:36:40   At: /home/vsts/go/pkg/mod/fyne.io/fyne/v2@v2.4.5/app/app_xdg.go:40
2024/06/06 19:36:40 Fyne error:  Unable to connect to session D-Bus
2024/06/06 19:36:40   Cause: dial unix /run/user/1000/bus: connect: no such file or directory
2024/06/06 19:36:40   At: /home/vsts/go/pkg/mod/fyne.io/fyne/v2@v2.4.5/app/app_xdg.go:177
Segmentation fault

I question the WSL on this host, however, as even a local compile segfaults

go: downloading github.com/jsummers/gobmp v0.0.0-20151104160322-e2ba15ffa76e
go: downloading github.com/go-gl/gl v0.0.0-20211210172815-726fda9656d6
go: downloading golang.org/x/net v0.17.0
builder@LuiGi:~/Workspaces/EncryptedNotepad2$ ls
ABOUT.md           Makefile   go.sum              handle_savefileas.go  pandoc.css
EncryptedNotepad2  README.md  handle_help.go      icons                 screenshot.png
Icon.png           TODO.md    handle_newfile.go   icons.go              version.go
LICENSE            consts.go  handle_openfile.go  main.go               widget_customentry.go
LICENSE_addendum   go.mod     handle_savefile.go  main_window.go
builder@LuiGi:~/Workspaces/EncryptedNotepad2$ ./EncryptedNotepad2
2024/06/06 19:43:38 Fyne error:  Unable to connect to session D-Bus
2024/06/06 19:43:38   Cause: dial unix /run/user/1000/bus: connect: no such file or directory
2024/06/06 19:43:38   At: /home/builder/go/pkg/mod/fyne.io/fyne/v2@v2.4.5/app/app_xdg.go:40
2024/06/06 19:43:38 Fyne error:  Unable to connect to session D-Bus
2024/06/06 19:43:38   Cause: dial unix /run/user/1000/bus: connect: no such file or directory
2024/06/06 19:43:38   At: /home/builder/go/pkg/mod/fyne.io/fyne/v2@v2.4.5/app/app_xdg.go:177
Segmentation fault
builder@LuiGi:~/Workspaces/EncryptedNotepad2$

I rebooted and still no go, but I know X works as i can fire up xeyes

I guess it just works sometimes

builder@LuiGi:~/Workspaces/EncryptedNotepad2$ ./EncryptedNotepad2
2024/06/06 19:50:10 Fyne error:  Unable to connect to session D-Bus
2024/06/06 19:50:10   Cause: dial unix /run/user/1000/bus: connect: no such file or directory
2024/06/06 19:50:10   At: /home/builder/go/pkg/mod/fyne.io/fyne/v2@v2.4.5/app/app_xdg.go:40
2024/06/06 19:50:10 Fyne error:  Unable to connect to session D-Bus
2024/06/06 19:50:10   Cause: dial unix /run/user/1000/bus: connect: no such file or directory
2024/06/06 19:50:10   At: /home/builder/go/pkg/mod/fyne.io/fyne/v2@v2.4.5/app/app_xdg.go:177
Segmentation fault
builder@LuiGi:~/Workspaces/EncryptedNotepad2$ sudo ./EncryptedNotepad2
[sudo] password for builder:
Segmentation fault

Cryptpad

I found one more option I wanted to explore today, CryptPad. While the installation guide really prefers a server setup with two domains, it does list Docker steps as well.

Just as I was about to work those over, I found their helm repo which should greatly simplify things.

I’ll start by creating a namespace and installing the chart from the OCI location

$ kubectl create ns cryptpad
namespace/cryptpad created

$ helm install cryptpad -n cryptpad oci://ghcr.io/cryptpad/helm/cryptpad
Pulled: ghcr.io/cryptpad/helm/cryptpad:0.0.19
Digest: sha256:fe74a6329afd5c61b8f2e75580a6c8d5ee22de0c2460c35966d46050457e4315
NAME: cryptpad
LAST DEPLOYED: Fri Jun  7 05:45:23 2024
NAMESPACE: cryptpad
STATUS: deployed
REVISION: 1
TEST SUITE: None
NOTES:
1. Get the application URL by running these commands:
  export POD_NAME=$(kubectl get pods --namespace cryptpad -l "app.kubernetes.io/name=cryptpad,app.kubernetes.io/instance=cryptpad" -o jsonpath="{.items[0].metadata.name}")
  export CONTAINER_PORT=$(kubectl get pod --namespace cryptpad $POD_NAME -o jsonpath="{.spec.containers[0].ports[0].containerPort}")
  echo "Visit http://127.0.0.1:8080 to use your application"
  kubectl --namespace cryptpad port-forward $POD_NAME 8080:$CONTAINER_PORT

I followed those steps and brought up the WebUI

I’ll then just create an account

We get a spinney icon as it does some password hashing

(spoiler: nothing will happen due to CORS issues we’ll discuss in a moment)

It stayed there for way too long. Perhaps it created it but doesn’t refresh right when port-forwarding?

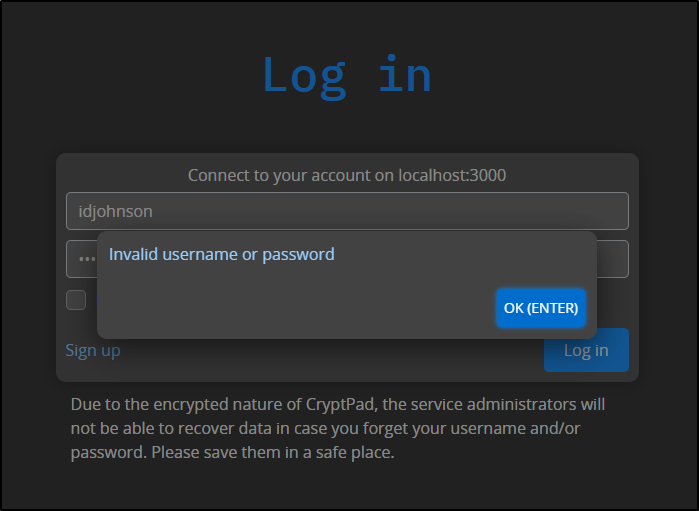

Trying to login with it didn’t work

Ingress

Next, I’ll create an ingress A Record in Azure DNS

$ az account set --subscription "Pay-As-You-Go" && az network dns record-set a add-record -g idjdnsrg -z tpk.pw -a 75.73.224.240 -n cryptpad
{
  "ARecords": [
    {
      "ipv4Address": "75.73.224.240"
    }
  ],
  "TTL": 3600,
  "etag": "eb5153a7-9058-486e-8adf-c0e3716b57ef",
  "fqdn": "cryptpad.tpk.pw.",
  "id": "/subscriptions/d955c0ba-13dc-44cf-a29a-8fed74cbb22d/resourceGroups/idjdnsrg/providers/Microsoft.Network/dnszones/tpk.pw/A/cryptpad",
  "name": "cryptpad",
  "provisioningState": "Succeeded",
  "resourceGroup": "idjdnsrg",
  "targetResource": {},
  "type": "Microsoft.Network/dnszones/A"
}

I noted the service is on 80 and 83. I’ll look at just the primary

$ kubectl get svc -n cryptpad
NAME       TYPE        CLUSTER-IP     EXTERNAL-IP   PORT(S)         AGE
cryptpad   ClusterIP   10.43.36.139   <none>        80/TCP,83/TCP   6m57s

# From service
    ports:
    - name: http
      port: 80
      protocol: TCP
      targetPort: http
    - name: ws
      port: 83
      protocol: TCP
      targetPort: ws

# From pod
    ports:
    - containerPort: 3000
      name: http
      protocol: TCP
    - containerPort: 3003
      name: ws
      protocol: TCP

I’ll now create an ingres, but I’m only servicing port 80

$ cat cryptpad.ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  annotations:
    cert-manager.io/cluster-issuer: azuredns-tpkpw
    ingress.kubernetes.io/ssl-redirect: "true"
    kubernetes.io/ingress.class: nginx
    kubernetes.io/tls-acme: "true"
    nginx.ingress.kubernetes.io/ssl-redirect: "true"
    nginx.org/websocket-services: cryptpad
  name: cryptpad-ingress
  namespace: cryptpad
spec:
  rules:
  - host: cryptpad.tpk.pw
    http:
      paths:
      - backend:
          service:
            name: cryptpad
            port:
              number: 80
        path: /
        pathType: Prefix
  tls:
  - hosts:
    - cryptpad.tpk.pw
    secretName: cryptpad-tls

$ kubectl apply -f cryptpad.ingress.yaml
ingress.networking.k8s.io/cryptpad-ingress created

I’ll wait on the cert to get created

builder@DESKTOP-QADGF36:~/Workspaces/EncryptedNotepad2$ kubectl get cert -n cryptpad
NAME           READY   SECRET         AGE
cryptpad-tls   False   cryptpad-tls   19s
builder@DESKTOP-QADGF36:~/Workspaces/EncryptedNotepad2$ kubectl get cert -n cryptpad
NAME           READY   SECRET         AGE
cryptpad-tls   False   cryptpad-tls   44s
builder@DESKTOP-QADGF36:~/Workspaces/EncryptedNotepad2$ kubectl get cert -n cryptpad
NAME           READY   SECRET         AGE
cryptpad-tls   False   cryptpad-tls   72s
builder@DESKTOP-QADGF36:~/Workspaces/EncryptedNotepad2$ kubectl get cert -n cryptpad
NAME           READY   SECRET         AGE
cryptpad-tls   True    cryptpad-tls   86s

I’ll try and register again

It seems to be the same hung screen as before and nothing really shows in the logs

Someone said to check the browser output for errors in a GH issue

And indeed, we can see we are back to COORs issues

register/:1 Access to fetch at 'http://localhost:3000/block/dg/dg99pJJIIIcsp5EZiR4QEJgjxc571aQ-AisZH+QJAkA=' from origin 'https://cryptpad.tpk.pw' has been blocked by CORS policy: No 'Access-Control-Allow-Origin' header is present on the requested resource. If an opaque response serves your needs, set the request's mode to 'no-cors' to fetch the resource with CORS disabled.

Digging into the docs, I suspect it’s a lack of setting the origin configs

I’ll try the quick approach of just upgrading my chart with the new values

2$ helm upgrade cryptpad -n cryptpad --set application_config.httpUnsafeOrigin='https://cryptpad.tpk.pw' --set application_config.httpSafeOrigin='https://cryptpad.tpk.pw' oci://ghcr.io/cryptpad/helm/cryptpad
Pulled: ghcr.io/cryptpad/helm/cryptpad:0.0.19
Digest: sha256:fe74a6329afd5c61b8f2e75580a6c8d5ee22de0c2460c35966d46050457e4315
Release "cryptpad" has been upgraded. Happy Helming!
NAME: cryptpad
LAST DEPLOYED: Fri Jun  7 06:09:37 2024
NAMESPACE: cryptpad
STATUS: deployed
REVISION: 2
TEST SUITE: None
NOTES:
1. Get the application URL by running these commands:
  export POD_NAME=$(kubectl get pods --namespace cryptpad -l "app.kubernetes.io/name=cryptpad,app.kubernetes.io/instance=cryptpad" -o jsonpath="{.items[0].metadata.name}")
  export CONTAINER_PORT=$(kubectl get pod --namespace cryptpad $POD_NAME -o jsonpath="{.spec.containers[0].ports[0].containerPort}")
  echo "Visit http://127.0.0.1:8080 to use your application"
  kubectl --namespace cryptpad port-forward $POD_NAME 8080:$CONTAINER_PORT

The values are set, but i’m still seeing ‘localhost:3000’ as the origin

I also tried (with the same result)

$ helm upgrade cryptpad -n cryptpad --set application_config.AppConfig.httpUnsafeOrigin='https://cryptpad.tpk.pw' --set application_config
.AppConfig.httpSafeOrigin='https://cryptpad.tpk.pw' oci://ghcr.io/cryptpad/helm/cryptpad

But still CORS errors

Hopping into the container, I see it’s rather stuck with that value as it’s hard-coded

cryptpad@cryptpad-0:~/config$ cat config.js
/* globals module */

module.exports = {
        httpUnsafeOrigin: 'http://localhost:3000',
        httpSafeOrigin: 'http://localhost:3000',
        adminKeys: [],
          archivePath: "./data/archive",
          blobPath: "./blob",
          blobStagingPath: "./data/blobstage",
          blockPath: "./block",
          decreePath: "./data/decrees",
          filePath: "./datastore/",
          httpAddress: "0.0.0.0",
          installMethod: "helm-docker",
          logFeedback: "false",
          logLevel: "info",
          logPath: "./data/logs",
          logToStdout: "false",
          pinPath: "./data/pins",
          taskPath: "./data/tasks",
          verbose: "false",


    };

My last shot was to try some local values files

$ cat values.yaml
config:
  httpUnsafeOrigin: "https://cryptpad.tpk.pw"
  httpSafeOrigin: "https://cryptpad.tpk.pw"

# https://docs.cryptpad.org/en/admin_guide/customization.html#application-config
application_config:
  httpUnsafeOrigin: "https://cryptpad.tpk.pw"
  httpSafeOrigin: "https://cryptpad.tpk.pw"

$ helm upgrade cryptpad -n cryptpad -f ./values.yaml oci://ghcr.io/cryptpad/helm/cryptpad
Pulled: ghcr.io/cryptpad/helm/cryptpad:0.0.19
Digest: sha256:fe74a6329afd5c61b8f2e75580a6c8d5ee22de0c2460c35966d46050457e4315
Release "cryptpad" has been upgraded. Happy Helming!
NAME: cryptpad
LAST DEPLOYED: Fri Jun  7 06:20:39 2024
NAMESPACE: cryptpad
STATUS: deployed
REVISION: 4
TEST SUITE: None
NOTES:
1. Get the application URL by running these commands:
  export POD_NAME=$(kubectl get pods --namespace cryptpad -l "app.kubernetes.io/name=cryptpad,app.kubernetes.io/instance=cryptpad" -o jsonpath="{.items[0].metadata.name}")
  export CONTAINER_PORT=$(kubectl get pod --namespace cryptpad $POD_NAME -o jsonpath="{.spec.containers[0].ports[0].containerPort}")
  echo "Visit http://127.0.0.1:8080 to use your application"
  kubectl --namespace cryptpad port-forward $POD_NAME 8080:$CONTAINER_PORT

I watched it rotate

builder@DESKTOP-QADGF36:~/Workspaces/EncryptedNotepad2$ kubectl get pods -n cryptpad
NAME         READY   STATUS        RESTARTS   AGE
cryptpad-0   1/1     Terminating   0          4m7s
builder@DESKTOP-QADGF36:~/Workspaces/EncryptedNotepad2$ kubectl get pods -n cryptpad
No resources found in cryptpad namespace.
builder@DESKTOP-QADGF36:~/Workspaces/EncryptedNotepad2$ kubectl get pods -n cryptpad
NAME         READY   STATUS     RESTARTS   AGE
cryptpad-0   0/1     Init:0/1   0          2s
builder@DESKTOP-QADGF36:~/Workspaces/EncryptedNotepad2$ kubectl get pods -n cryptpad
NAME         READY   STATUS    RESTARTS   AGE
cryptpad-0   0/1     Running   0          5s
builder@DESKTOP-QADGF36:~/Workspaces/EncryptedNotepad2$ kubectl get pods -n cryptpad
NAME         READY   STATUS    RESTARTS   AGE
cryptpad-0   0/1     Running   0          11s
builder@DESKTOP-QADGF36:~/Workspaces/EncryptedNotepad2$ kubectl get pods -n cryptpad
NAME         READY   STATUS    RESTARTS   AGE
cryptpad-0   1/1     Running   0          16s

Thisis the first time I see show the proper url

This time it worked!

I’ll do a new Rich Text document

And I’ll give it a unique password

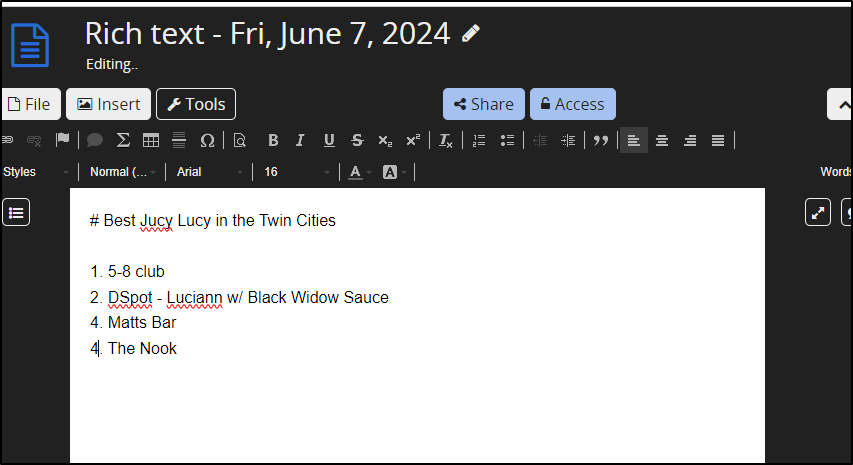

I’ll write some kind of contentious doc

I can then go back and see the file

If I’m logged in, I can double click to re-open it.

However, if I share the URL, then I need that password

Which opens a doc read-only

I need to see if this survives a pod cycling. I do see evidence of PVCs

builder@DESKTOP-QADGF36:~/Workspaces/EncryptedNotepad2$ kubectl get pvc -n cryptpad
NAME                            STATUS   VOLUME                                     CAPACITY   ACCESS MODES   STORAGECLASS   AGE
cryptpad-blob-cryptpad-0        Bound    pvc-aad32b6a-821b-43be-97b7-ac465c6d50fa   100Mi      RWO            local-path     54m
cryptpad-block-cryptpad-0       Bound    pvc-9067b0e2-9d28-4536-954f-25ee5b83b4ac   100Mi      RWO            local-path     54m
cryptpad-data-cryptpad-0        Bound    pvc-53a02151-d362-4d93-a1b0-0092477d7e64   100Mi      RWO            local-path     54m
cryptpad-datastore-cryptpad-0   Bound    pvc-0708653b-8e0d-4f4d-ad8f-017bb03b03a2   100Mi      RWO            local-path     54m

I cycled the pod

builder@DESKTOP-QADGF36:~/Workspaces/EncryptedNotepad2$ kubectl get po -n cryptpad
NAME         READY   STATUS    RESTARTS   AGE
cryptpad-0   1/1     Running   0          14m
builder@DESKTOP-QADGF36:~/Workspaces/EncryptedNotepad2$ kubectl delete po cryptpad-0 -n cryptpad
pod "cryptpad-0" deleted
builder@DESKTOP-QADGF36:~/Workspaces/EncryptedNotepad2$ kubectl get po -n cryptpad
NAME         READY   STATUS    RESTARTS   AGE
cryptpad-0   1/1     Running   0          16s

I then checked the doc and it was live and working

Let’s look at creating a code document and sharing it as a view-once destructive link

Summary

Today we looked at Netbox for managing a Data Center and some of its features. We looked into EncryptedNotepad2 which is a Go-lang based app that seems to compile for Linux without issue but only ran on one of my two WSLs. I couldn’t get it to compile for Windows (and wasn’t willing to spend $25 to see if it had a Win binary). Lastly, we looked at setting up CryptPad which is a web-based encrypted doc system that allows sharing.

I likely won’t use Netbox as I really have no need for it and I would more likely re-install PHPIPAM which can scan my network to add IPs. I do plan to keep CryptPad in my cluster as that is a really nice way to create and share docs and secrets.
