Rundeck Part 1: Setup, Kubernetes, Ingress and Nodes

Published: May 9, 2024 by Isaac Johnson

I love Rundeck. It’s a great utility system for providing webhooks for invoking commands. I was thinking on it recently for addressing a business need at work when I saw an email hit my inbox announcing version 5.2 was just released.

Today, let’s see if we can setup Rundeck in Kubernetes (I’ve always had to fall back to Docker). We’ll explore the latest features and focus primarily on the free/community offering.

Installation

Up till now, the way I’ve run Rundeck is to just expose a Docker version via Kubernetes

/content/images/2024/05/rundeck-01.png

This is essentially done via an endpoint object in Kubernetes (one could use endpoint or endpointslice for this)

builder@DESKTOP-QADGF36:~$ kubectl get ingress rundeckingress
NAME             CLASS    HOSTS                         ADDRESS   PORTS     AGE
rundeckingress   <none>   rundeck.freshbrewed.science             80, 443   55d
builder@DESKTOP-QADGF36:~$ kubectl get service rundeck-external-ip
NAME                  TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)   AGE
rundeck-external-ip   ClusterIP   None         <none>        80/TCP    55d
builder@DESKTOP-QADGF36:~$ kubectl get service rundeck-external-ip
NAME                  TYPE        CLUSTER-IP   EXTERNAL-IP   PORT(S)   AGE
rundeck-external-ip   ClusterIP   None         <none>        80/TCP    55d
builder@DESKTOP-QADGF36:~$ kubectl get endpoints rundeck-external-ip
NAME                  ENDPOINTS            AGE
rundeck-external-ip   192.168.1.100:5440   55d

I won’t really dig into the specifics of that but you are welcome to review my last writeup that covers upgrading it in Docker.

I don’t want “Enterprise”, but I can use their docs to get an idea how we might run standard using the same constructs.

For instance, this compose shows running Rundeck with PostgreSQL

version: '3'

services:
    rundeck:
        image: ${RUNDECK_IMAGE:-rundeck/rundeck:SNAPSHOT}
        links:
          - postgres
        environment:
            RUNDECK_DATABASE_DRIVER: org.postgresql.Driver
            RUNDECK_DATABASE_USERNAME: rundeck
            RUNDECK_DATABASE_PASSWORD: rundeck
            RUNDECK_DATABASE_URL: jdbc:postgresql://postgres/rundeck?autoReconnect=true&useSSL=false&allowPublicKeyRetrieval=true
            RUNDECK_GRAILS_URL: http://localhost:4440
        volumes:
          - ${RUNDECK_LICENSE_FILE:-/dev/null}:/home/rundeck/etc/rundeckpro-license.key
        ports:
          - 4440:4440
    postgres:
        image: postgres
        expose:
          - 5432
        environment:
          - POSTGRES_DB=rundeck
          - POSTGRES_USER=rundeck
          - POSTGRES_PASSWORD=rundeck
        volumes:
          - dbdata:/var/lib/postgresql/data

volumes:
    dbdata:

Converting that to a Kubernetes manifest with the adjusted image and removing the license key:

apiVersion: apps/v1
kind: Deployment
metadata:
  name: rundeck
spec:
  replicas: 1
  selector:
    matchLabels:
      app: rundeck
  template:
    metadata:
      labels:
        app: rundeck
    spec:
      containers:
      - name: rundeck
        image: rundeck/rundeck:5.2.0
        env:
          - name: RUNDECK_DATABASE_DRIVER
            value: org.postgresql.Driver
          - name: RUNDECK_DATABASE_USERNAME
            value: rundeck
          - name: RUNDECK_DATABASE_PASSWORD
            value: rundeck
          - name: RUNDECK_DATABASE_URL
            value: jdbc:postgresql://postgres/rundeck?autoReconnect=true&useSSL=false&allowPublicKeyRetrieval=true
          - name: RUNDECK_GRAILS_URL
            value: http://localhost:4440
        ports:
        - containerPort: 4440
          protocol: TCP
---
apiVersion: v1
kind: Service
metadata:
  name: rundeck-service
spec:
  selector:
    app: rundeck
  ports:
  - protocol: TCP
    port: 4440
    targetPort: 4440
  type: ClusterIP  # Adjust the type as needed (e.g. ClusterIP)
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: postgres
spec:
  replicas: 1
  selector:
    matchLabels:
      app: postgres
  template:
    metadata:
      labels:
        app: postgres
    spec:
      containers:
      - name: postgres
        image: postgres
        env:
          - name: POSTGRES_DB
            value: rundeck
          - name: POSTGRES_USER
            value: rundeck
          - name: POSTGRES_PASSWORD
            value: rundeck
        volumeMounts:
        - name: postgres-data
          mountPath: /var/lib/postgresql/data
      volumes:
      - name: postgres-data
        persistentVolumeClaim:
          claimName: postgres-pvc
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: postgres-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 2Gi  # Adjust storage size as needed
  storageClassName: managed-nfs-storage # Replace with your storage class
---
apiVersion: v1
kind: Service
metadata:
  name: postgres
spec:
  selector:
    app: postgres
  ports:
  - port: 5432
    targetPort: 5432

I can now create a namespace and apply it

$ kubectl create ns rundeck
namespace/rundeck created

$ kubectl apply -n rundeck -f ./manifest.yaml
deployment.apps/rundeck created
service/rundeck-service created
deployment.apps/postgres created
persistentvolumeclaim/postgres-pvc created
service/postgres created

I found the NFS provisioner wasn’t jiving with PSQL

  Warning  BackOff           1s (x4 over 31s)   kubelet            Back-off restarting failed container postgres in pod postgres-6b984b548d-6vb9w_rundeck(93e755ea-cf66-4f23-95a9-82ce4d898378)
builder@DESKTOP-QADGF36:~/Workspaces/rundeck$ kubectl logs postgres-6b984b548d-6vb9w -n rundeck
chown: changing ownership of '/var/lib/postgresql/data': Operation not permitted

I waited a bit to see if it might clear up

$ kubectl get pods -n rundeck
NAME                        READY   STATUS             RESTARTS         AGE
postgres-6b984b548d-6vb9w   0/1     CrashLoopBackOff   13 (3m54s ago)   46m
rundeck-6df9fcbbd-vlvw5     0/1     CrashLoopBackOff   12 (75s ago)     46m

I switched to local-path which worked:

$ kubectl get pods -n rundeck
NAME                        READY   STATUS    RESTARTS   AGE
rundeck-6df9fcbbd-vmfg2     1/1     Running   0          66s
postgres-6b984b548d-9rb85   1/1     Running   0          66s

The first step we should be to change the admin password (which has the default password of “admin”)

I’ll port-forward to the service

$ kubectl port-forward svc/rundeck-service -n rundeck 4440:4440
Forwarding from 127.0.0.1:4440 -> 4440
Forwarding from [::1]:4440 -> 4440
Handling connection for 4440
Handling connection for 4440
Handling connection for 4440

Then login

/content/images/2024/05/rundeck-02.png

In looking, I found that the user/pass is hardcoded in a file, unfortunately.

They do support SSO and LDAP auth via Env vars (defined here)

But looking, we can see it’s ‘admin:admin’ and ‘user:user’:

builder@DESKTOP-QADGF36:~/Workspaces/rundeck$ kubectl exec -it rundeck-6df9fcbbd-vmfg2 -n rundeck -- /bin/bash
To run a command as administrator (user "root"), use "sudo <command>".
See "man sudo_root" for details.

rundeck@rundeck-6df9fcbbd-vmfg2:~$ cat /home/rundeck/server/config/realm.properties
#
# This file defines users passwords and roles for a HashUserRealm
#
# The format is
#  <username>: <password>[,<rolename> ...]
#
# Passwords may be clear text, obfuscated or checksummed.  The class
# org.mortbay.util.Password should be used to generate obfuscated
# passwords or password checksums
#
# This sets the temporary user accounts for the Rundeck app
#
admin:admin,user,admin
user:user,user

#
# example users matching the example aclpolicy template roles
#
#project-admin:admin,user,project_admin
#job-runner:admin,user,job_runner
#job-writer:admin,user,job_writer
#job-reader:admin,user,job_reader
#job-viewer:admin,user,job_viewer

Let’s enter some new territory and solve this using Kuberntes objects.

I’ll first create a configmap

apiVersion: v1
kind: ConfigMap
metadata:
  name: realm-properties-configmap
data:
  realm.properties: |
    #
    # This file defines users passwords and roles for a HashUserRealm
    #
    # The format is
    #  <username>: <password>[,<rolename> ...]
    #
    # Passwords may be clear text, obfuscated or checksummed. The class
    # org.mortbay.util.Password should be used to generate obfuscated
    # passwords or password checksums
    #
    # This sets the temporary user accounts for the Rundeck app
    #
    admin:admin,user,admin
    user:user,user

    #
    # example users matching the example aclpolicy template roles
    #
    #project-admin:admin,user,project_admin
    #job-runner:admin,user,job_runner
    #job-writer:admin,user,job_writer
    #job-reader:admin,user,job_reader
    #job-viewer:admin,user,job_viewer

I editted the manifest

apiVersion: v1
kind: ConfigMap
metadata:
  name: realm-properties-configmap
data:
  realm.properties: |
    #
    # This file defines users passwords and roles for a HashUserRealm
    #
    # The format is
    #  <username>: <password>[,<rolename> ...]
    #
    # Passwords may be clear text, obfuscated or checksummed. The class
    # org.mortbay.util.Password should be used to generate obfuscated
    # passwords or password checksums
    #
    # This sets the temporary user accounts for the Rundeck app
    #
    admin:newpassword,user,admin
    user:newpassword,user

    #
    # example users matching the example aclpolicy template roles
    #
    #project-admin:admin,user,project_admin
    #job-runner:admin,user,job_runner
    #job-writer:admin,user,job_writer
    #job-reader:admin,user,job_reader
    #job-viewer:admin,user,job_viewer
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: rundeck
spec:
  replicas: 1
  selector:
    matchLabels:
      app: rundeck
  template:
    metadata:
      labels:
        app: rundeck
    spec:
      containers:
      - name: rundeck
        image: rundeck/rundeck:5.2.0
        volumeMounts:
          - name: config-volume
            mountPath: /home/rundeck/server/config/
            subPath: realm.properties
        env:
          - name: RUNDECK_DATABASE_DRIVER
            value: org.postgresql.Driver
          - name: RUNDECK_DATABASE_USERNAME
            value: rundeck
          - name: RUNDECK_DATABASE_PASSWORD
            value: rundeck
          - name: RUNDECK_DATABASE_URL
            value: jdbc:postgresql://postgres/rundeck?autoReconnect=true&useSSL=false&allowPublicKeyRetrieval=true
          - name: RUNDECK_GRAILS_URL
            value: http://localhost:4440
        ports:
        - containerPort: 4440
          protocol: TCP
      volumes:
        - name: config-volume
          configMap:
            name: realm-properties-configmap
---
apiVersion: v1
kind: Service
metadata:
  name: rundeck-service
spec:
  selector:
    app: rundeck
  ports:
  - protocol: TCP
    port: 4440
    targetPort: 4440
  type: ClusterIP  # Adjust the type as needed (e.g. ClusterIP)
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: postgres
spec:
  replicas: 1
  selector:
    matchLabels:
      app: postgres
  template:
    metadata:
      labels:
        app: postgres
    spec:
      containers:
      - name: postgres
        image: postgres
        env:
          - name: POSTGRES_DB
            value: rundeck
          - name: POSTGRES_USER
            value: rundeck
          - name: POSTGRES_PASSWORD
            value: rundeck
        volumeMounts:
        - name: postgres-data
          mountPath: /var/lib/postgresql/data
      volumes:
      - name: postgres-data
        persistentVolumeClaim:
          claimName: postgres-pvc
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: postgres-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 2Gi  # Adjust storage size as needed
  storageClassName: local-path
---
apiVersion: v1
kind: Service
metadata:
  name: postgres
spec:
  selector:
    app: postgres
  ports:
  - port: 5432
    targetPort: 5432

Which I applied

$ kubectl apply -n rundeck -f ./manifest.yaml
configmap/realm-properties-configmap created
deployment.apps/rundeck configured
service/rundeck-service unchanged
deployment.apps/postgres unchanged
persistentvolumeclaim/postgres-pvc unchanged
service/postgres unchanged

Unfortuantely it didn’t work

$ kubectl get pods -n rundeck
NAME                        READY   STATUS             RESTARTS      AGE
rundeck-6df9fcbbd-vmfg2     1/1     Running            0             33m
postgres-6b984b548d-9rb85   1/1     Running            0             33m
rundeck-7c6c8995cc-wp82k    0/1     CrashLoopBackOff   4 (36s ago)   2m4s

This failed because it could not overwrite the file

Events:
  Type     Reason     Age                   From               Message
  ----     ------     ----                  ----               -------
  Normal   Scheduled  2m24s                 default-scheduler  Successfully assigned rundeck/rundeck-7c6c8995cc-wp82k to builder-hp-elitebook-745-g5
  Normal   Pulled     57s (x5 over 2m24s)   kubelet            Container image "rundeck/rundeck:5.2.0" already present on machine
  Normal   Created    57s (x5 over 2m24s)   kubelet            Created container rundeck
  Warning  Failed     57s (x5 over 2m24s)   kubelet            Error: failed to create containerd task: failed to create shim task: OCI runtime create failed: runc create failed: unable to start container process: error during container init: error mounting "/var/lib/kubelet/pods/02c9840e-9880-4f72-aa1b-c7fe99ec1195/volume-subpaths/config-volume/rundeck/0" to rootfs at "/home/rundeck/server/config/": mount /var/lib/kubelet/pods/02c9840e-9880-4f72-aa1b-c7fe99ec1195/volume-subpaths/config-volume/rundeck/0:/home/rundeck/server/config/ (via /proc/self/fd/6), flags: 0x5001: not a directory: unknown
  Warning  BackOff    31s (x10 over 2m22s)  kubelet            Back-off restarting failed container rundeck in pod rundeck-7c6c8995cc-wp82k_rundeck(02c9840e-9880-4f72-aa1b-c7fe99ec1195)

Let’s switch to copying it over first

apiVersion: v1
kind: ConfigMap
metadata:
  name: realm-properties-configmap
data:
  realm.properties: |
    #
    # This file defines users passwords and roles for a HashUserRealm
    #
    # The format is
    #  <username>: <password>[,<rolename> ...]
    #
    # Passwords may be clear text, obfuscated or checksummed. The class
    # org.mortbay.util.Password should be used to generate obfuscated
    # passwords or password checksums
    #
    # This sets the temporary user accounts for the Rundeck app
    #
    admin:newpassword,user,admin
    user:newpassword,user

    #
    # example users matching the example aclpolicy template roles
    #
    #project-admin:admin,user,project_admin
    #job-runner:admin,user,job_runner
    #job-writer:admin,user,job_writer
    #job-reader:admin,user,job_reader
    #job-viewer:admin,user,job_viewer
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: rundeck
spec:
  replicas: 1
  selector:
    matchLabels:
      app: rundeck
  template:
    metadata:
      labels:
        app: rundeck
    spec:
      containers:
      - name: rundeck
        image: rundeck/rundeck:5.2.0
        volumeMounts:
          - name: config-volume
            mountPath: /mnt/
            subPath: realm.properties
        command:
          - "/bin/sh"
          - "-c"
          - "cp -f /mnt/realm.properties /home/rundeck/server/config/realm.properties && java -XX:+UnlockExperimentalVMOptions -XX:MaxRAMPercentage=75 -Dlog4j.configurationFile=/home/rundeck/server/config/log4j2.properties -Dlogging.config=file:/home/rundeck/server/config/log4j2.properties -Dloginmodule.conf.name=jaas-loginmodule.conf -Dloginmodule.name=rundeck -Drundeck.jaaslogin=true -Drundeck.jetty.connector.forwarded=false -jar rundeck.war"
        env:
          - name: RUNDECK_DATABASE_DRIVER
            value: org.postgresql.Driver
          - name: RUNDECK_DATABASE_USERNAME
            value: rundeck
          - name: RUNDECK_DATABASE_PASSWORD
            value: rundeck
          - name: RUNDECK_DATABASE_URL
            value: jdbc:postgresql://postgres/rundeck?autoReconnect=true&useSSL=false&allowPublicKeyRetrieval=true
          - name: RUNDECK_GRAILS_URL
            value: http://localhost:4440
        ports:
        - containerPort: 4440
          protocol: TCP
      volumes:
        - name: config-volume
          configMap:
            name: realm-properties-configmap
---
apiVersion: v1
kind: Service
metadata:
  name: rundeck-service
spec:
  selector:
    app: rundeck
  ports:
  - protocol: TCP
    port: 4440
    targetPort: 4440
  type: ClusterIP  # Adjust the type as needed (e.g. ClusterIP)
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: postgres
spec:
  replicas: 1
  selector:
    matchLabels:
      app: postgres
  template:
    metadata:
      labels:
        app: postgres
    spec:
      containers:
      - name: postgres
        image: postgres
        env:
          - name: POSTGRES_DB
            value: rundeck
          - name: POSTGRES_USER
            value: rundeck
          - name: POSTGRES_PASSWORD
            value: rundeck
        volumeMounts:
        - name: postgres-data
          mountPath: /var/lib/postgresql/data
      volumes:
      - name: postgres-data
        persistentVolumeClaim:
          claimName: postgres-pvc
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: postgres-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 2Gi  # Adjust storage size as needed
  storageClassName: local-path
---
apiVersion: v1
kind: Service
metadata:
  name: postgres
spec:
  selector:
    app: postgres
  ports:
  - port: 5432
    targetPort: 5432

Let’s test that

$ kubectl apply -n rundeck -f ./manifest.yaml
configmap/realm-properties-configmap unchanged
deployment.apps/rundeck configured
service/rundeck-service unchanged
deployment.apps/postgres unchanged
persistentvolumeclaim/postgres-pvc unchanged
service/postgres unchanged

That too vommitted

Events:
  Type     Reason     Age                From               Message
  ----     ------     ----               ----               -------
  Normal   Scheduled  34s                default-scheduler  Successfully assigned rundeck/rundeck-87cbcb44c-4ps2b to builder-hp-elitebook-745-g5
  Normal   Pulled     19s (x3 over 34s)  kubelet            Container image "rundeck/rundeck:5.2.0" already present on machine
  Normal   Created    19s (x3 over 34s)  kubelet            Created container rundeck
  Warning  Failed     19s (x3 over 34s)  kubelet            Error: failed to create containerd task: failed to create shim task: OCI runtime create failed: runc create failed: unable to start container process: error during container init: error mounting "/var/lib/kubelet/pods/9b0b0143-4593-4feb-851c-fa3ba24e69eb/volume-subpaths/config-volume/rundeck/0" to rootfs at "/mnt/": mount /var/lib/kubelet/pods/9b0b0143-4593-4feb-851c-fa3ba24e69eb/volume-subpaths/config-volume/rundeck/0:/mnt/ (via /proc/self/fd/6), flags: 0x5001: not a directory: unknown
  Warning  BackOff    8s (x4 over 33s)   kubelet            Back-off restarting failed container rundeck in pod rundeck-87cbcb44c-4ps2b_rundeck(9b0b0143-4593-4feb-851c-fa3ba24e69eb)

However, this last form seemed to jive with my cluster (using subpaths and item keys):

$ cat manifest.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: realm-properties-configmap
data:
  realm.properties: |
    #
    # This file defines users passwords and roles for a HashUserRealm
    #
    # The format is
    #  <username>: <password>[,<rolename> ...]
    #
    # Passwords may be clear text, obfuscated or checksummed. The class
    # org.mortbay.util.Password should be used to generate obfuscated
    # passwords or password checksums
    #
    # This sets the temporary user accounts for the Rundeck app
    #
    admin:newpassword,user,admin
    user:newpassword,user

    #
    # example users matching the example aclpolicy template roles
    #
    #project-admin:admin,user,project_admin
    #job-runner:admin,user,job_runner
    #job-writer:admin,user,job_writer
    #job-reader:admin,user,job_reader
    #job-viewer:admin,user,job_viewer
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: rundeck
spec:
  replicas: 1
  selector:
    matchLabels:
      app: rundeck
  template:
    metadata:
      labels:
        app: rundeck
    spec:
      containers:
      - name: rundeck
        image: rundeck/rundeck:5.2.0
        volumeMounts:
          - name: config-volume
            mountPath: /mnt/realm.properties
            subPath: realm.properties
        command:
          - "/bin/sh"
          - "-c"
          - "cp -f /mnt/realm.properties /home/rundeck/server/config/realm.properties && java -XX:+UnlockExperimentalVMOptions -XX:MaxRAMPercentage=75 -Dlog4j.configurationFile=/home/rundeck/server/config/log4j2.properties -Dlogging.config=file:/home/rundeck/server/config/log4j2.properties -Dloginmodule.conf.name=jaas-loginmodule.conf -Dloginmodule.name=rundeck -Drundeck.jaaslogin=true -Drundeck.jetty.connector.forwarded=false -jar rundeck.war"
        env:
          - name: RUNDECK_DATABASE_DRIVER
            value: org.postgresql.Driver
          - name: RUNDECK_DATABASE_USERNAME
            value: rundeck
          - name: RUNDECK_DATABASE_PASSWORD
            value: rundeck
          - name: RUNDECK_DATABASE_URL
            value: jdbc:postgresql://postgres/rundeck?autoReconnect=true&useSSL=false&allowPublicKeyRetrieval=true
          - name: RUNDECK_GRAILS_URL
            value: http://localhost:4440
        ports:
        - containerPort: 4440
          protocol: TCP
      volumes:
        - name: config-volume
          configMap:
            name: realm-properties-configmap
            items:
            - key: realm.properties
              path: realm.properties
---
apiVersion: v1
kind: Service
metadata:
  name: rundeck-service
spec:
  selector:
    app: rundeck
  ports:
  - protocol: TCP
    port: 4440
    targetPort: 4440
  type: ClusterIP  # Adjust the type as needed (e.g. ClusterIP)
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: postgres
spec:
  replicas: 1
  selector:
    matchLabels:
      app: postgres
  template:
    metadata:
      labels:
        app: postgres
    spec:
      containers:
      - name: postgres
        image: postgres
        env:
          - name: POSTGRES_DB
            value: rundeck
          - name: POSTGRES_USER
            value: rundeck
          - name: POSTGRES_PASSWORD
            value: rundeck
        volumeMounts:
        - name: postgres-data
          mountPath: /var/lib/postgresql/data
      volumes:
      - name: postgres-data
        persistentVolumeClaim:
          claimName: postgres-pvc
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: postgres-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 2Gi  # Adjust storage size as needed
  storageClassName: local-path
---
apiVersion: v1
kind: Service
metadata:
  name: postgres
spec:
  selector:
    app: postgres
  ports:
  - port: 5432
    targetPort: 5432

On issue that is bothering me is that without a readiness probe or health check we show a “live” container well before it’s actually started.

Once the logs show

Grails application running at http://0.0.0.0:4440/ in environment: production

Then I know its good. So let’s fix that too. I also pivotted back to just a direct mount of the properties file

$ cat manifest.yaml
apiVersion: v1
kind: ConfigMap
metadata:
  name: realm-properties-configmap
data:
  realm.properties: |
    #
    # This file defines users passwords and roles for a HashUserRealm
    #
    # The format is
    #  <username>: <password>[,<rolename> ...]
    #
    # Passwords may be clear text, obfuscated or checksummed. The class
    # org.mortbay.util.Password should be used to generate obfuscated
    # passwords or password checksums
    #
    # This sets the temporary user accounts for the Rundeck app
    #
    admin:newpassword,user,admin
    user:newpassword,user

    #
    # example users matching the example aclpolicy template roles
    #
    #project-admin:admin,user,project_admin
    #job-runner:admin,user,job_runner
    #job-writer:admin,user,job_writer
    #job-reader:admin,user,job_reader
    #job-viewer:admin,user,job_viewer
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: rundeck
spec:
  replicas: 1
  selector:
    matchLabels:
      app: rundeck
  template:
    metadata:
      labels:
        app: rundeck
    spec:
      containers:
      - name: rundeck
        image: rundeck/rundeck:5.2.0
        volumeMounts:
          - name: config-volume
            mountPath: /home/rundeck/server/config/realm.properties
            subPath: realm.properties
        env:
          - name: RUNDECK_DATABASE_DRIVER
            value: org.postgresql.Driver
          - name: RUNDECK_DATABASE_USERNAME
            value: rundeck
          - name: RUNDECK_DATABASE_PASSWORD
            value: rundeck
          - name: RUNDECK_DATABASE_URL
            value: jdbc:postgresql://postgres/rundeck?autoReconnect=true&useSSL=false&allowPublicKeyRetrieval=true
          - name: RUNDECK_GRAILS_URL
            value: http://localhost:4440
        ports:
        - containerPort: 4440
          protocol: TCP
        readinessProbe:
          httpGet:
            path: /health
            port: 4440
          initialDelaySeconds: 10
          periodSeconds: 5
          failureThreshold: 3
        livenessProbe:
          httpGet:
            path: /health
            port: 4440
          initialDelaySeconds: 30
          periodSeconds: 10
          failureThreshold: 5
      volumes:
        - name: config-volume
          configMap:
            name: realm-properties-configmap
            items:
            - key: realm.properties
              path: realm.properties
---
apiVersion: v1
kind: Service
metadata:
  name: rundeck-service
spec:
  selector:
    app: rundeck
  ports:
  - protocol: TCP
    port: 4440
    targetPort: 4440
  type: ClusterIP  # Adjust the type as needed (e.g. ClusterIP)
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: postgres
spec:
  replicas: 1
  selector:
    matchLabels:
      app: postgres
  template:
    metadata:
      labels:
        app: postgres
    spec:
      containers:
      - name: postgres
        image: postgres
        env:
          - name: POSTGRES_DB
            value: rundeck
          - name: POSTGRES_USER
            value: rundeck
          - name: POSTGRES_PASSWORD
            value: rundeck
        volumeMounts:
        - name: postgres-data
          mountPath: /var/lib/postgresql/data
      volumes:
      - name: postgres-data
        persistentVolumeClaim:
          claimName: postgres-pvc
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: postgres-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 2Gi  # Adjust storage size as needed
  storageClassName: local-path
---
apiVersion: v1
kind: Service
metadata:
  name: postgres
spec:
  selector:
    app: postgres
  ports:
  - port: 5432
    targetPort: 5432

applied

$ kubectl apply -n rundeck -f ./manifest.yaml
configmap/realm-properties-configmap unchanged
deployment.apps/rundeck configured
service/rundeck-service unchanged
deployment.apps/postgres unchanged
persistentvolumeclaim/postgres-pvc unchanged
service/postgres unchanged

Ingress

Since I already used ‘rundeck’ with my AWS/Route53 address so I’ll use Azure for this instance.

That means I first need an A Record

$ az account set --subscription "Pay-As-You-Go" && az network dns record-set a add-record -g idjdnsrg -z tpk.pw -a 75.73.224.240 -n rundeck
{
  "ARecords": [
    {
      "ipv4Address": "75.73.224.240"
    }
  ],
  "TTL": 3600,
  "etag": "96b46f0a-7b1c-4380-95df-5668b851ae61",
  "fqdn": "rundeck.tpk.pw.",
  "id": "/subscriptions/d955c0ba-13dc-44cf-a29a-8fed74cbb22d/resourceGroups/idjdnsrg/providers/Microsoft.Network/dnszones/tpk.pw/A/rundeck",
  "name": "rundeck",
  "provisioningState": "Succeeded",
  "resourceGroup": "idjdnsrg",
  "targetResource": {},
  "type": "Microsoft.Network/dnszones/A"
}

Next I can create and apply an Ingress YAML to use it

$ cat rundeck.ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  annotations:
    cert-manager.io/cluster-issuer: azuredns-tpkpw
    ingress.kubernetes.io/ssl-redirect: "true"
    kubernetes.io/ingress.class: nginx
    kubernetes.io/tls-acme: "true"
    nginx.ingress.kubernetes.io/ssl-redirect: "true"
    nginx.org/websocket-services: rundeck-service
  name: rundeck-ingress
spec:
  rules:
  - host: rundeck.tpk.pw
    http:
      paths:
      - backend:
          service:
            name: rundeck-service
            port:
              number: 4440
        path: /
        pathType: Prefix
  tls:
  - hosts:
    - rundeck.tpk.pw
    secretName: rundeck-tls
$ kubectl apply -f ./rundeck.ingress.yaml -n rundeck
ingress.networking.k8s.io/rundeck-ingress created

When I saw the cert was good

$ kubectl get cert -n rundeck
NAME          READY   SECRET        AGE
rundeck-tls   True    rundeck-tls   3m33s

While it works, I still seem to a get a bit of delay redirecting after login to https://rundeck.tpk.pw/menu/home.

/content/images/2024/05/rundeck-04.png

Usage

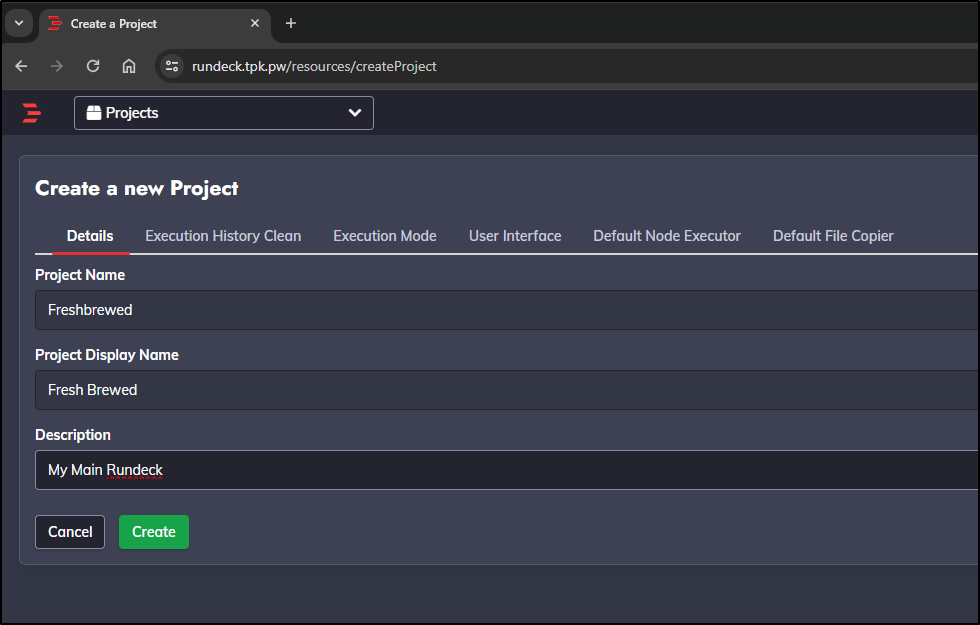

My first step is to create a project

/content/images/2024/05/rundeck-05.png

Next I’ll create a job

/content/images/2024/05/rundeck-06.png

I’ll give it a name

/content/images/2024/05/rundeck-07.png

In the Workflow section, I’ll do a basic test pwd command

/content/images/2024/05/rundeck-08.png

Once saved, I can see it in the All Jobs list

/content/images/2024/05/rundeck-09.png

I can click “Run Job Now”

/content/images/2024/05/rundeck-10.png

Which I see it succeeded

/content/images/2024/05/rundeck-11.png

I can see it ran on the main Node

/content/images/2024/05/rundeck-12.png

I find it still seems to hang on output in the page, but I can view it with the raw output

/content/images/2024/05/rundeck-13.png

Next, I’ll create a webhook

/content/images/2024/05/rundeck-14.png

I decided to give it the admin role

/content/images/2024/05/rundeck-15.png

For some reason, yet again the UI doesn’t work for the Web URL, but does with a port-forward

/content/images/2024/05/rundeck-16.png

I’ll pick a test job

/content/images/2024/05/rundeck-17.png

And I can see URL after I save

/content/images/2024/05/rundeck-18.png

I can then test with curl

$ curl -X POST https://rundeck.tpk.pw/api/47/webhook/pee2vJEp2I2OPY22wzAZy0is0SaRKWwO#testhook
{"jobId":"ce88f1bc-77cf-4bf7-aabe-576f4eaa5555","executionId":"17"}

I realized i had left the default URL in the deployment section of Rundeck

    spec:
      containers:
      - name: rundeck
        image: rundeck/rundeck:5.2.0
        volumeMounts:
          - name: config-volume
            mountPath: /home/rundeck/server/config/realm.properties
            subPath: realm.properties
        env:
          - name: RUNDECK_DATABASE_DRIVER
            value: org.postgresql.Driver
          - name: RUNDECK_DATABASE_USERNAME
            value: rundeck
          - name: RUNDECK_DATABASE_PASSWORD
            value: rundeck
          - name: RUNDECK_DATABASE_URL
            value: jdbc:postgresql://postgres/rundeck?autoReconnect=true&useSSL=false&allowPublicKeyRetrieval=true
          - name: RUNDECK_GRAILS_URL
            value: http://localhost:4440

I changed that last one to

          - name: RUNDECK_GRAILS_URL
            value: https://rundeck.tpk.pw

However, a consequence of rotating pods is the output logs get lost

/content/images/2024/05/rundeck-19.png

However, the webhooks and URLs persist

$ curl -X POST https://rundeck.tpk.pw/api/47/webhook/pee2vJEp2I2OPY22wzAZy0is0SaRKWwO#testhook
{"jobId":"ce88f1bc-77cf-4bf7-aabe-576f4eaa5555","executionId":"21"}

This time I had no troubles getting output

/content/images/2024/05/rundeck-20.png

Nodes

Let’s add a node. First, we need to add an SSH key that will be used to connect to the Node.

We can do this in the Project Settings under Key storage

/content/images/2024/05/rundeck-21.png

Click “+ Add or Upload a Key”

/content/images/2024/05/rundeck-22.png

I can enter the Private Key and set the name

/content/images/2024/05/rundeck-23.png

We can see it now saved

/content/images/2024/05/rundeck-24.png

Next, we’ll choose to Edit Nodes

/content/images/2024/05/rundeck-25.png

Where we can then add a Node source

/content/images/2024/05/rundeck-26.png

I’ll now add a file node

/content/images/2024/05/rundeck-27.png

I’ll chose YAML format and to include localhost

/content/images/2024/05/rundeck-28.png

I then need to save it

/content/images/2024/05/rundeck-29.png

Which is confirmed

/content/images/2024/05/rundeck-30.png

Now, even though I did chose to create it, I found it failed to do so.

So I touched a file on the pod and gave write permissions

builder@DESKTOP-QADGF36:~/Workspaces/rundeck$ kubectl get pods -n rundeck
NAME                        READY   STATUS    RESTARTS   AGE
postgres-6b984b548d-9rb85   1/1     Running   0          7h21m
rundeck-7cb68459bf-vssv8    1/1     Running   0          117m
builder@DESKTOP-QADGF36:~/Workspaces/rundeck$ kubectl exec -it rundeck-7cb68459bf-vssv8 -n rundeck -- /bin/bash
To run a command as administrator (user "root"), use "sudo <command>".
See "man sudo_root" for details.

rundeck@rundeck-7cb68459bf-vssv8:~$ pwd
/home/rundeck
rundeck@rundeck-7cb68459bf-vssv8:~$ touch resourceyaml
rundeck@rundeck-7cb68459bf-vssv8:~$ chmod 777 ./resourceyaml
rundeck@rundeck-7cb68459bf-vssv8:~$

Now when I clicked Edit under Nodes, I can see some basic details

/content/images/2024/05/rundeck-31.png

I clicked save. If I cat it on the pods, I can see its contents now

rundeck@rundeck-7cb68459bf-vssv8:~$ cat resourceyaml
rundeck-7cb68459bf-vssv8:
  nodename: rundeck-7cb68459bf-vssv8
  hostname: rundeck-7cb68459bf-vssv8
  osVersion: 5.15.0-97-generic
  osFamily: unix
  osArch: amd64
  description: Rundeck server node
  osName: Linux
  username: rundeck
  tags: ''

Next, I’ll add a node to the list I can use

/content/images/2024/05/rundeck-32.png

To test, I’ll create a new Job and use ‘mac.*’ in my filter. We can see ‘mac81’ was matched

/content/images/2024/05/rundeck-33.png

The problem is I’ll really need to fix auth before we use it.

Let’s first get the path to that private key we created

/content/images/2024/05/rundeck-34.png

We can now edit the resourceyaml and add the line

ssh-key-storage-path: keys/project/Freshbrewed/DESKTOP-QADGF36

Which we can see below at lien 10

/content/images/2024/05/rundeck-35.png

On this new test job, I’ll use the command ‘whoami’ to show we should be “builder” on that host

/content/images/2024/05/rundeck-36.png

I saved and ran and we can see it ran the job on mac81

/content/images/2024/05/rundeck-37.png

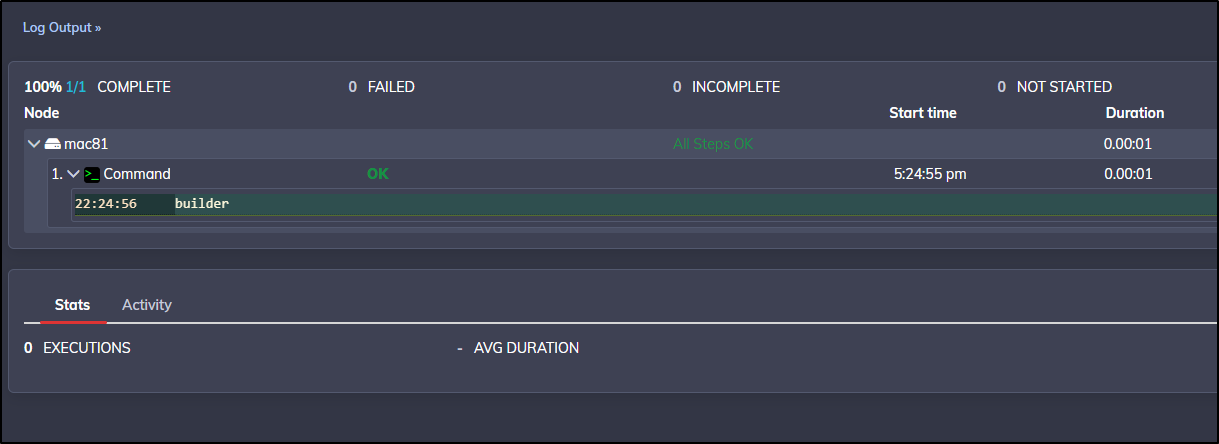

Expanding the log output shows, indeed, we are running as “builder” on that host

/content/images/2024/05/rundeck-38.png

Summary

In this first part we setup Rundeck in Kubernetes. Since there is no official chart (of which I’m aware), we built out our own solving some configmaps and user/password issues. Once running, we sorted out TLS and Ingress before diving in to setup. In our first test, we ran a test job against the local executor.

Our goal today was getting Rundeck to use external nodes as we’ll need that for some ansible work coming next. We figured out SSH passwords and then how to use the “File” approach to add nodes. Lastly, we proved it work by running a “whoami” on a destination host.

In our next post, we’ll address how to use Commands to run arbitrary steps on hosts, how the SCM connectivity works (leveraging GIT with Forgejo). Imports of the XML files stored in GIT (using an alternate host) and Ansible two ways.

Rundeck Webhooks Pagerduty Containers Kubernetes

Have something to add? Feedback? You can use the feedback form

Isaac Johnson

Isaac Johnson

Cloud Solutions Architect

Isaac is a CSA and DevOps engineer who focuses on cloud migrations and devops processes. He also is a dad to three wonderful daughters (hence the references to Princess King sprinkled throughout the blog).

Theme built by C.S. Rhymes
