Published: May 7, 2024 by Isaac Johnson

We all know pastebin is great for sharing code snippets. Many of us use Github GISTs for much the same purpose. However, there are occasions we may wish to just self host an equivalent service.

Opengist is a self-hosted gist service written in Go. The README shows how to launch in docker quite easily:

version: "3"

services:
  opengist:
    image: ghcr.io/thomiceli/opengist:1.7
    container_name: opengist
    restart: unless-stopped
    ports:
      - "6157:6157" # HTTP port
      - "2222:2222" # SSH port, can be removed if you don't use SSH
    volumes:
      - "$HOME/.opengist:/opengist"

Let’s look at how we might do the same using a Kubernetes manifest.

builder@DESKTOP-QADGF36:~/Workspaces/opengist$ vi opengist.yaml
builder@DESKTOP-QADGF36:~/Workspaces/opengist$ cat opengist.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: opengist-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 2Gi
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: opengist-deployment
spec:
  replicas: 1
  selector:
    matchLabels:
      app: opengist
  template:
    metadata:
      labels:
        app: opengist
    spec:
      containers:
        - name: opengist
          image: ghcr.io/thomiceli/opengist:1.7
          ports:
            - containerPort: 6157
      volumes:
        - name: opengist-volume
          persistentVolumeClaim:
            claimName: opengist-pvc
---
apiVersion: v1
kind: Service
metadata:
  name: opengist-service
spec:
  selector:
    app: opengist
  ports:
    - protocol: TCP
      port: 80
      targetPort: 6157
  type: ClusterIP

I can now apply it:

builder@DESKTOP-QADGF36:~/Workspaces/opengist$ kubectl apply -f ./opengist.yaml
persistentvolumeclaim/opengist-pvc created
deployment.apps/opengist-deployment created
service/opengist-service created

Let me next do a local test

$ kubectl get svc opengist-service
NAME               TYPE        CLUSTER-IP    EXTERNAL-IP   PORT(S)   AGE
opengist-service   ClusterIP   10.43.95.24   <none>        80/TCP    43m

$ kubectl port-forward svc/opengist-service 8888:80
Forwarding from 127.0.0.1:8888 -> 6157
Forwarding from [::1]:8888 -> 6157

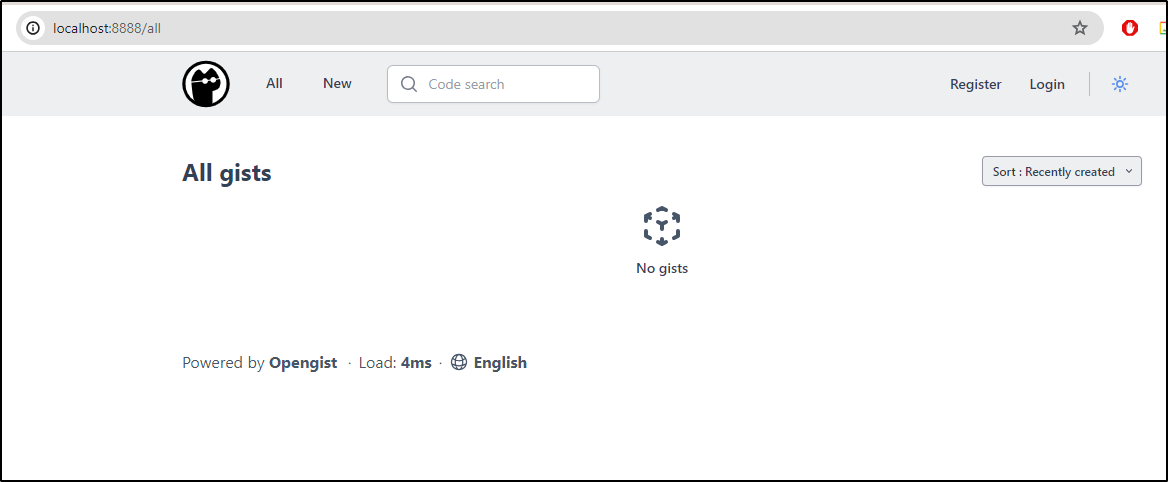

I now see the main page

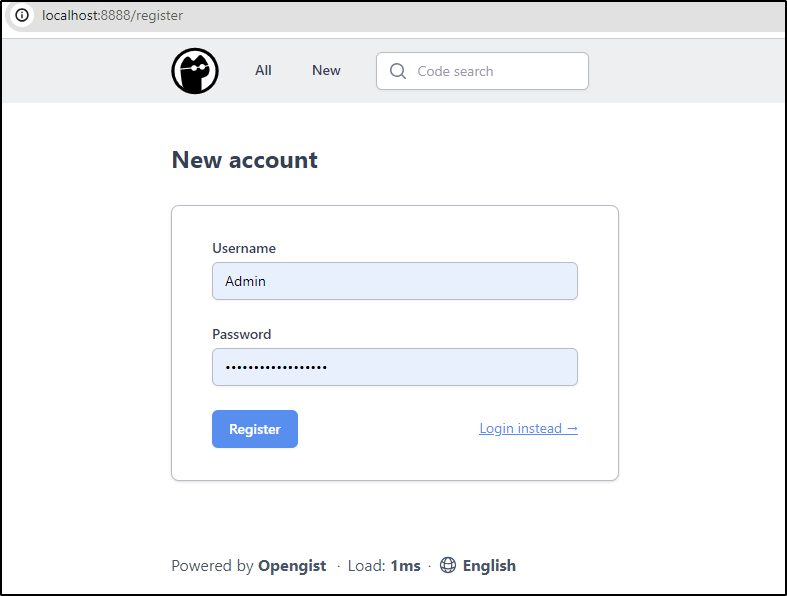

I’ll register a new account next

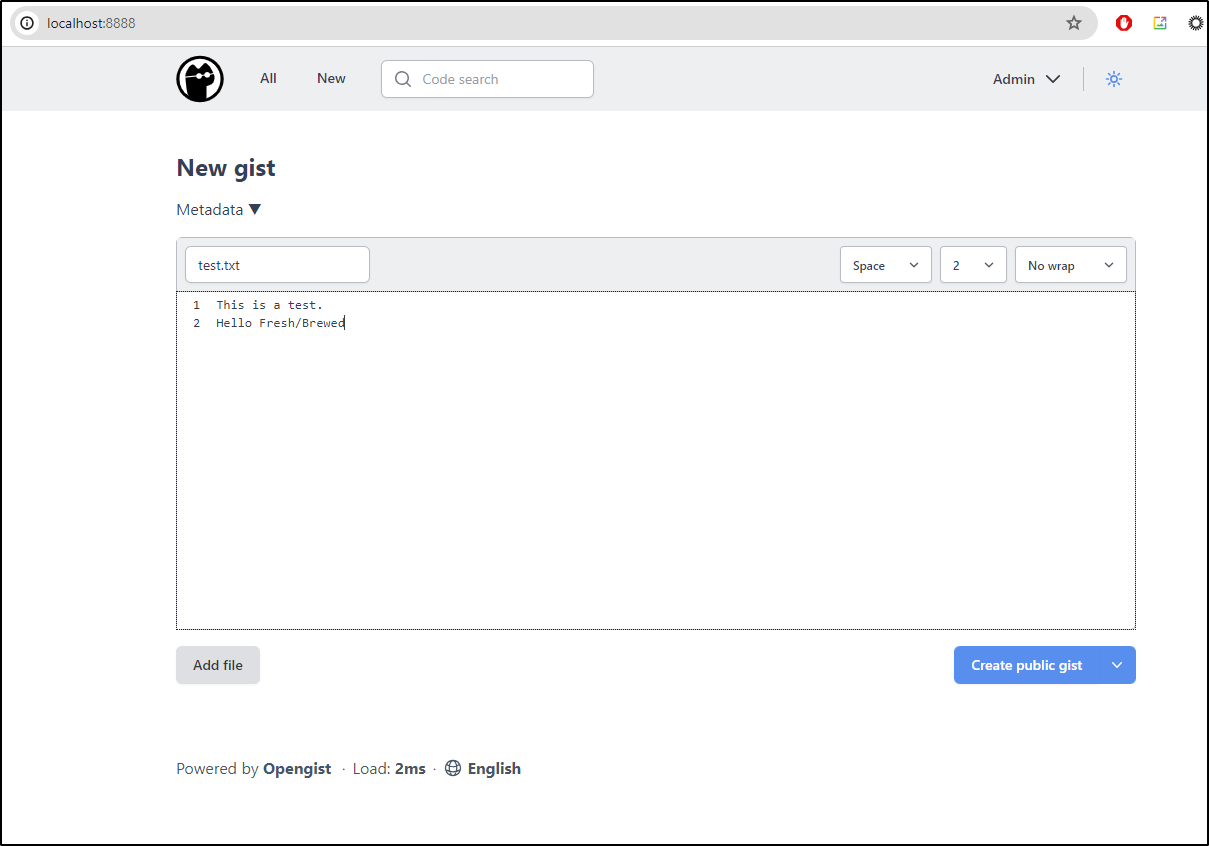

I can create a quick text GIST

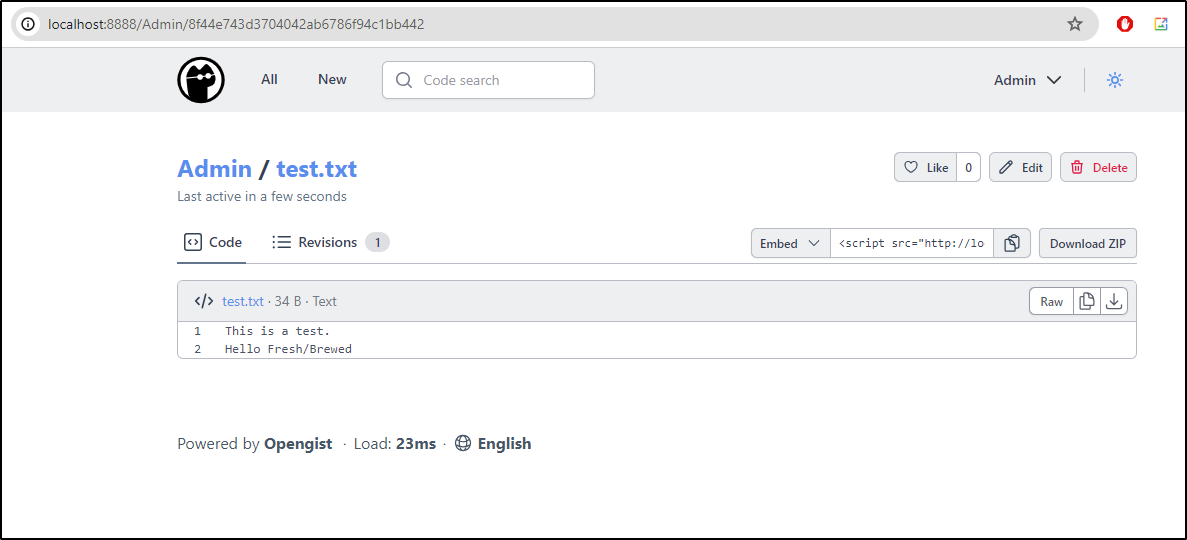

And then make it a public GIST anyone (could) view if they had K8s access

Ingress

I actually want to try this as a URL. To do that, I need to expose it publicly with TLS ingress to my cluster.

I’ll first create an A Record. This time let’s use AWS as we’ve done a lot of Azure DNS lately.

$ cat r53-opengist.json
{
    "Comment": "CREATE opengist fb.s A record ",
    "Changes": [
      {
        "Action": "CREATE",
        "ResourceRecordSet": {
          "Name": "opengist.freshbrewed.science",
          "Type": "A",
          "TTL": 300,
          "ResourceRecords": [
            {
              "Value": "75.73.224.240"
            }
          ]
        }
      }
    ]
  }

$ aws route53 change-resource-record-sets --hosted-zone-id Z39E8QFU0F9PZP --change-batch file://r53-opengist.json
{
    "ChangeInfo": {
        "Id": "/change/C06289992V6BMKD7V7424",
        "Status": "PENDING",
        "SubmittedAt": "2024-04-25T22:43:19.091Z",
        "Comment": "CREATE opengist fb.s A record "
    }
}

I’ll next use that in an Nginx ingress manifest:

$ cat ingress.opengist.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  annotations:
    cert-manager.io/cluster-issuer: letsencrypt-prod
    ingress.kubernetes.io/ssl-redirect: "true"
    kubernetes.io/ingress.class: nginx
    kubernetes.io/tls-acme: "true"
    nginx.ingress.kubernetes.io/ssl-redirect: "true"
    nginx.org/websocket-services: opengist-service
  name: opengist
spec:
  rules:
  - host: opengist.freshbrewed.science
    http:
      paths:
      - backend:
          service:
            name: opengist-service
            port:
              number: 80
        path: /
        pathType: ImplementationSpecific
  tls:
  - hosts:
    - opengist.freshbrewed.science
    secretName: opengist-tls

Which I can apply:

$ kubectl apply -f ./ingress.opengist.yaml
ingress.networking.k8s.io/opengist created

Once I saw the cert was live

$ kubectl get cert opengist-tls
NAME           READY   SECRET         AGE
opengist-tls   True    opengist-tls   3m51s

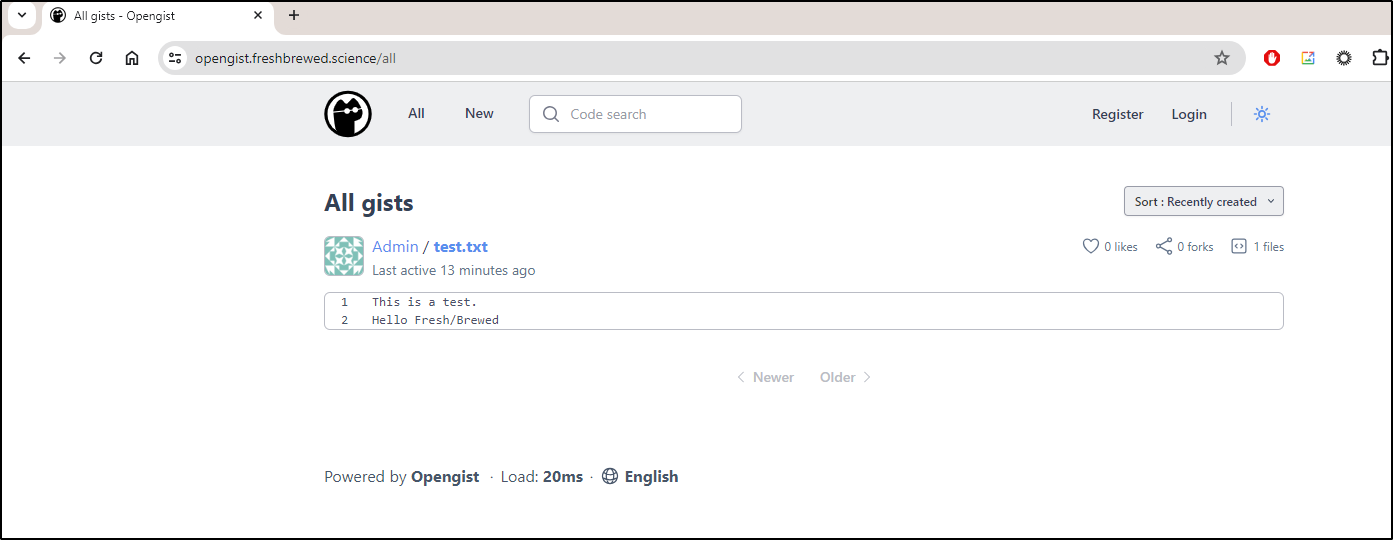

I went to test at https://opengist.freshbrewed.science/

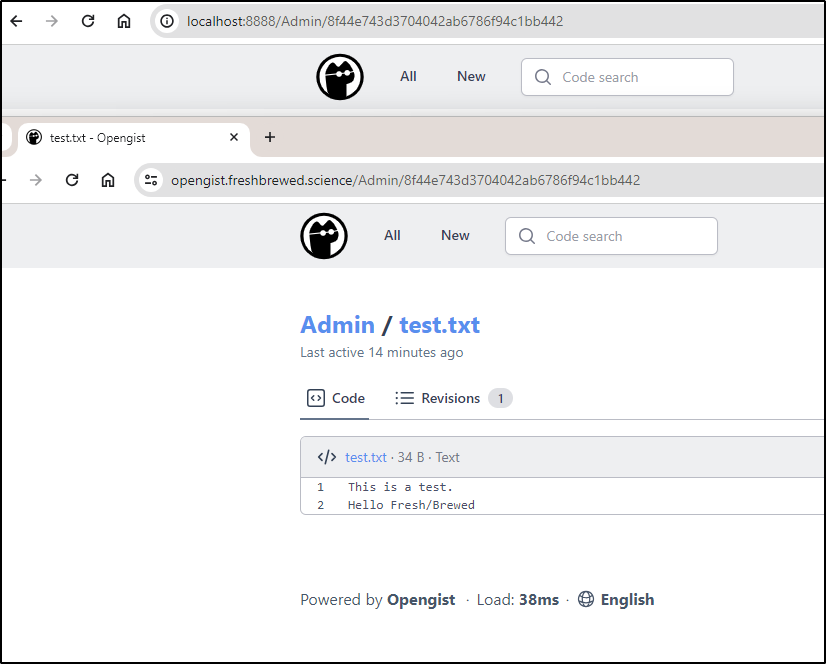

As you can see, that lines up

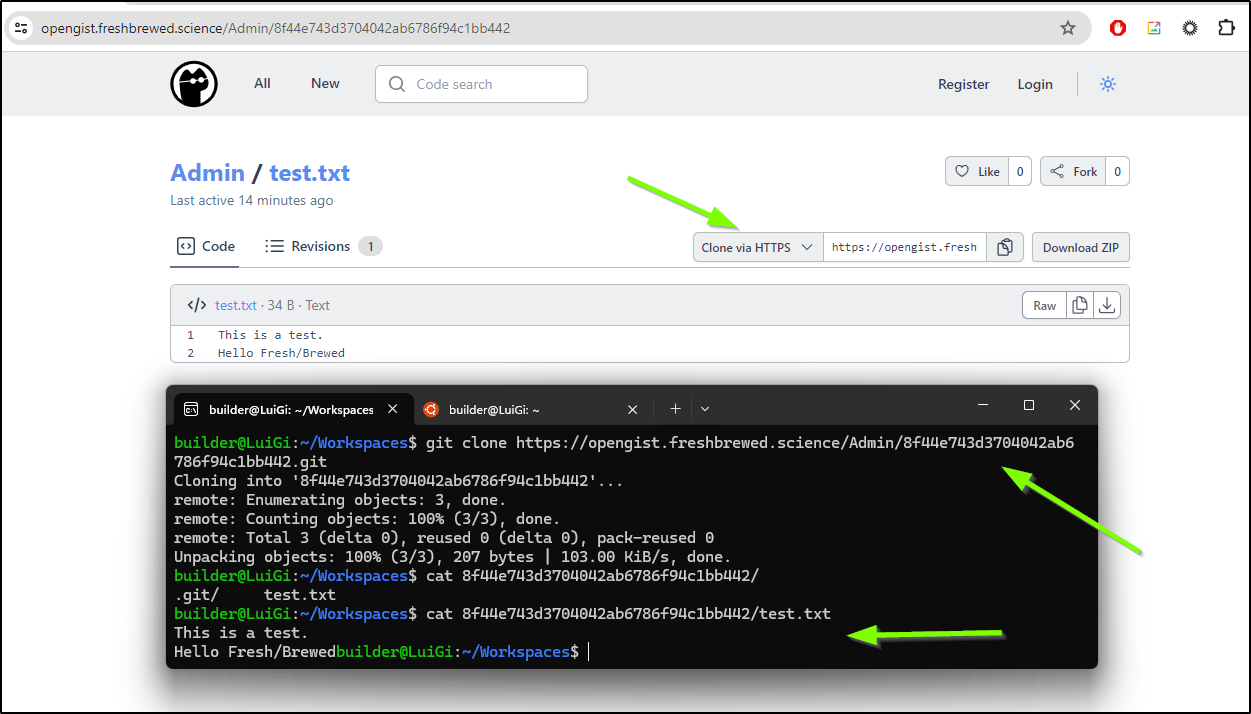

One of the handy features of Opengist is being able to git clone the GIST itself using git

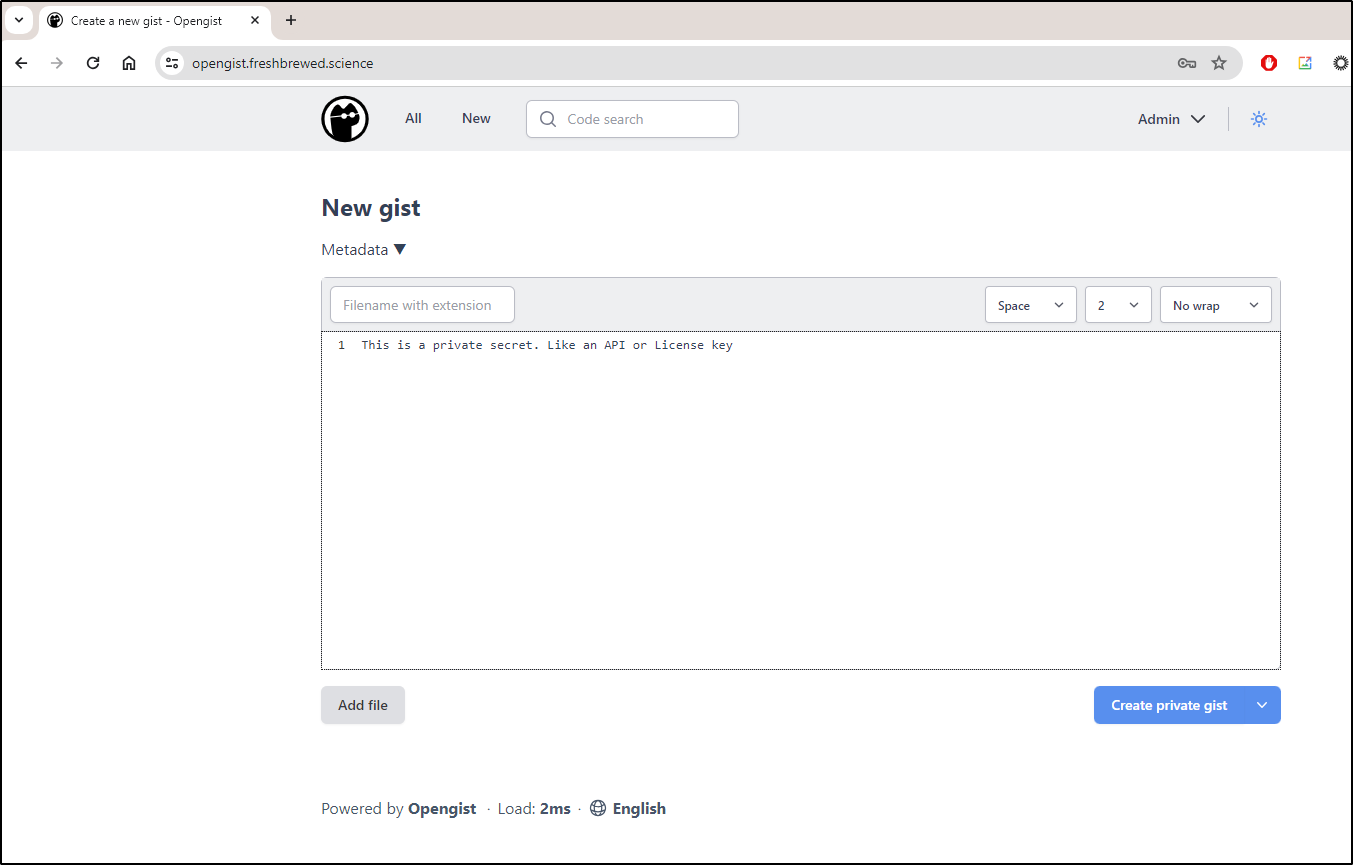

Next, I want to try and create a private GIST which would be useful for things like API keys, passwords or Credentials

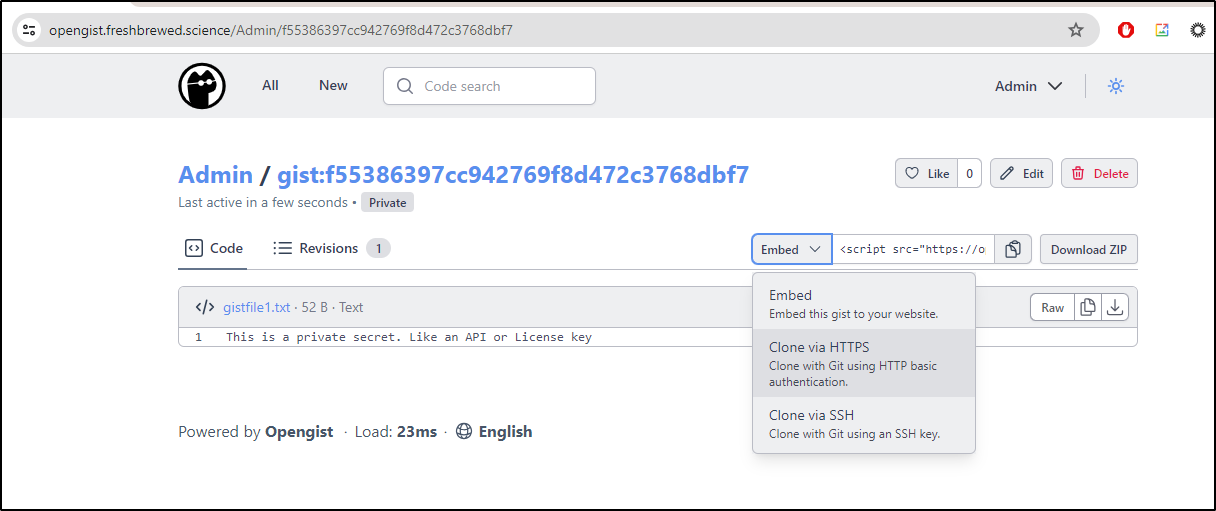

I can see the URL as well as chose a GIT option to clone my private secret using basic auth or SSH keys

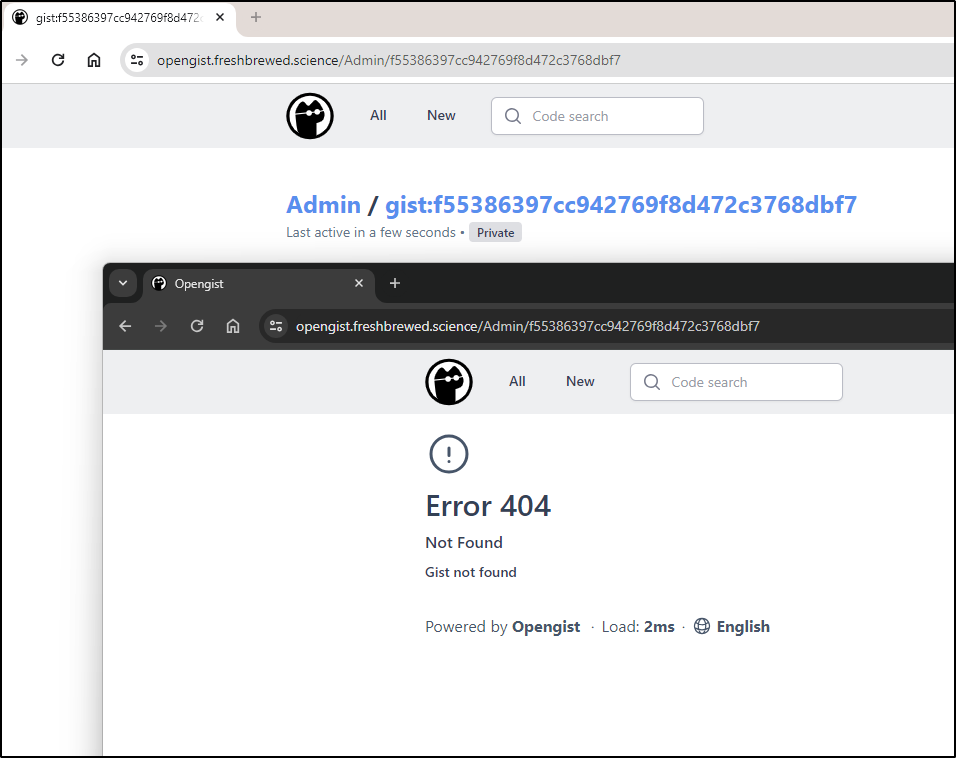

My first check is to just double check the URL requires auth to access by trying the URL in an Incognito/InPrivate window

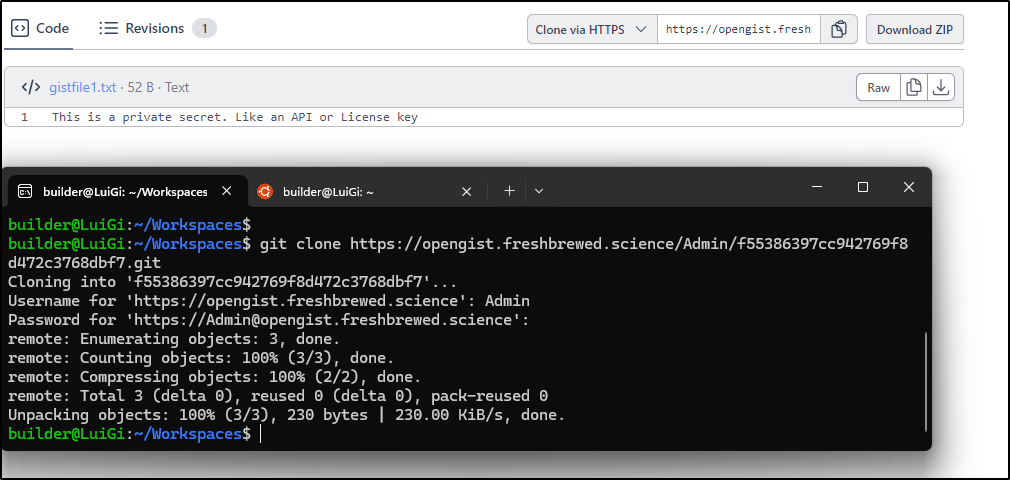

Next, I tried the git clone with basic auth which has me login like any other GIT https repo

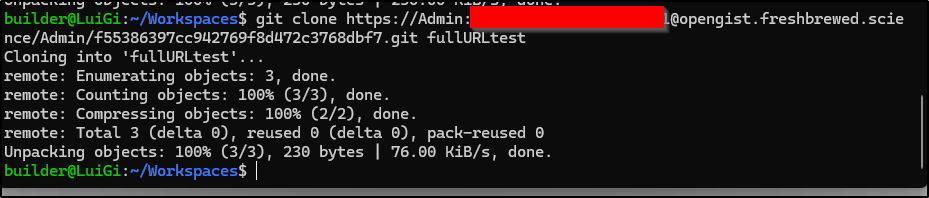

If I was scripting and needed to pass the Auth in the URL, I could do that with user:pass:

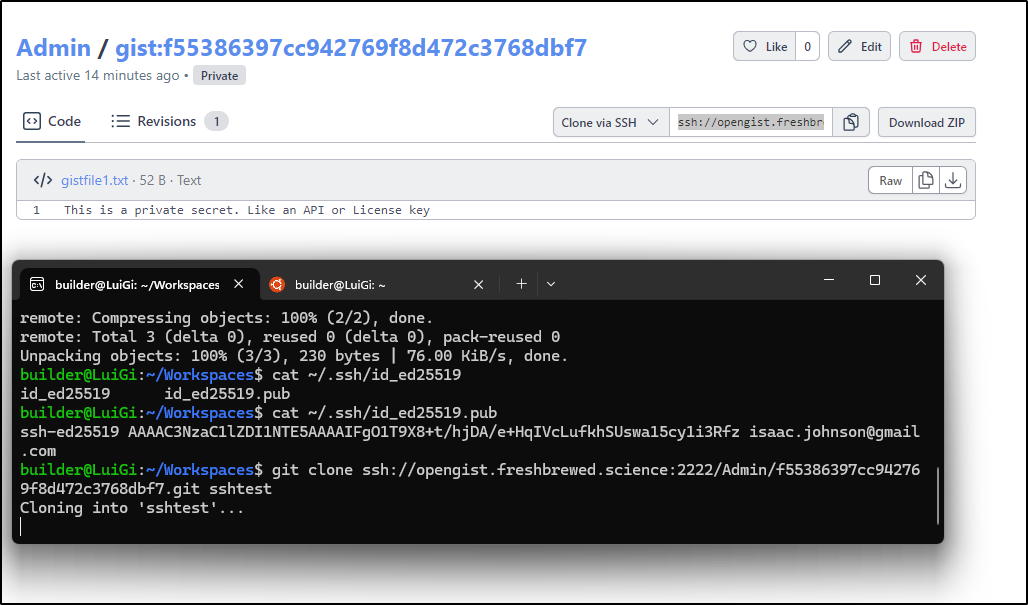

The last option is using an SSH key

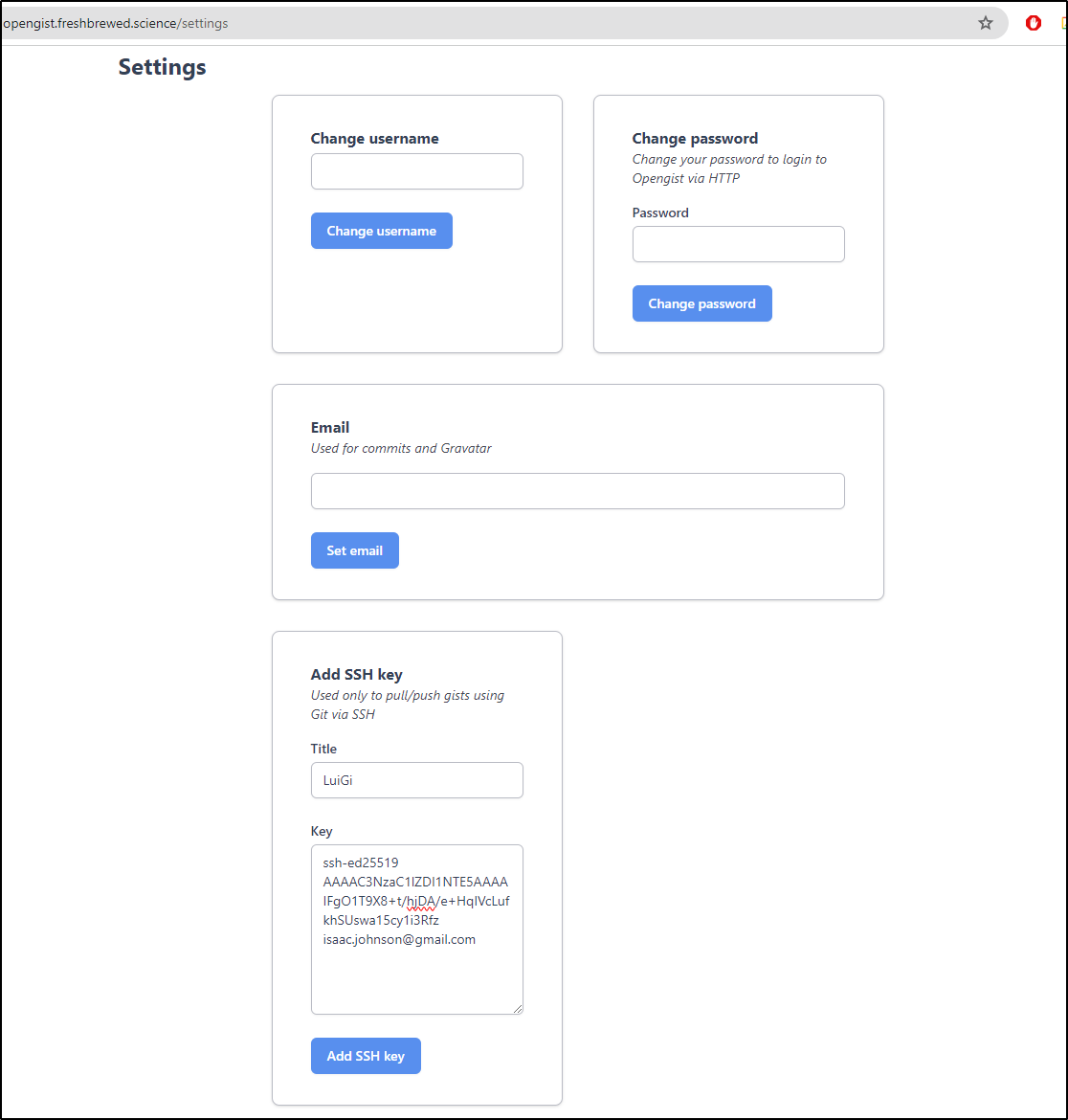

This means I would need to go the settings for my user and use my Pub key

$ cat ~/.ssh/id_ed25519.pub
ssh-ed25519 AAAAC3NzaC1lZDI1NTE5AAAAIFgO1T9X8+t/hjDA/e+HqIVcLufkhSUswa15cy1i3Rfz isaac.johnson@gmail.com

and save that to my settings

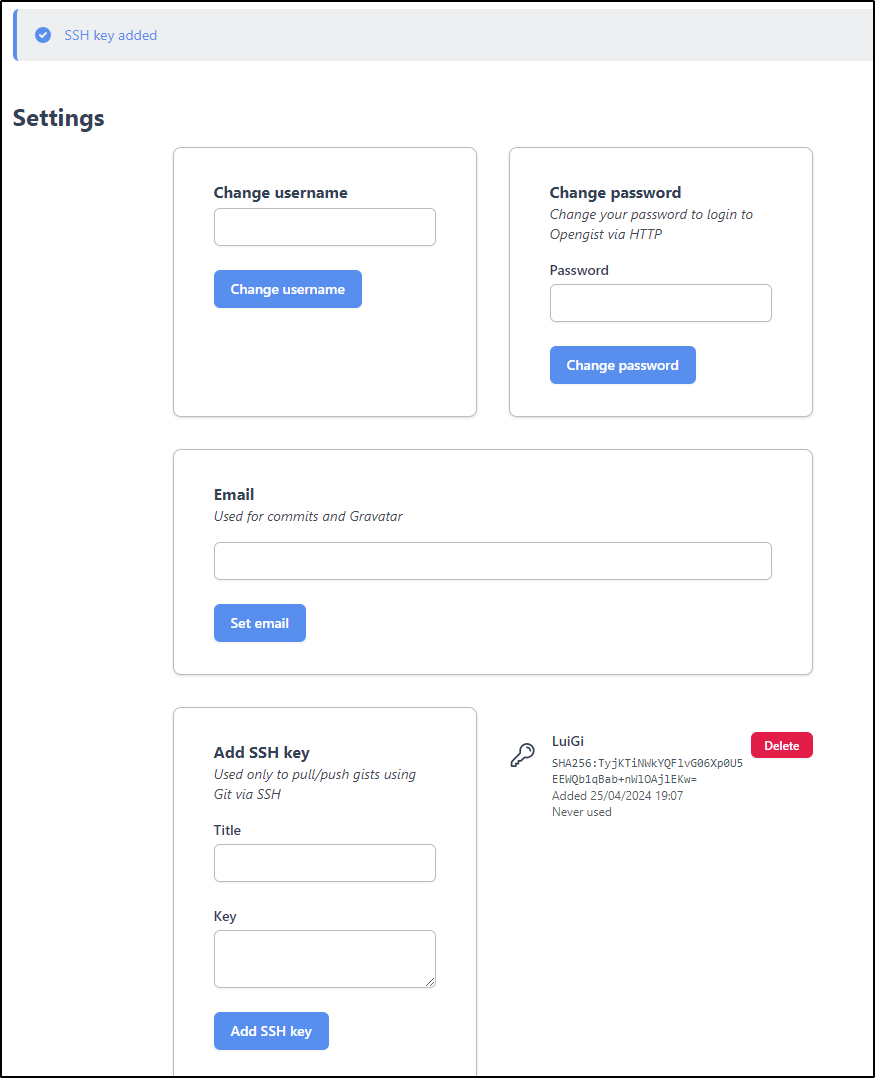

Which I can now see listed

Actually, here lies a bit of an issue. I’m using an Nginx Ingress serving https so it really cannot handle port 22 (SSH) and I’m not about to expose 22 globally so it will time out

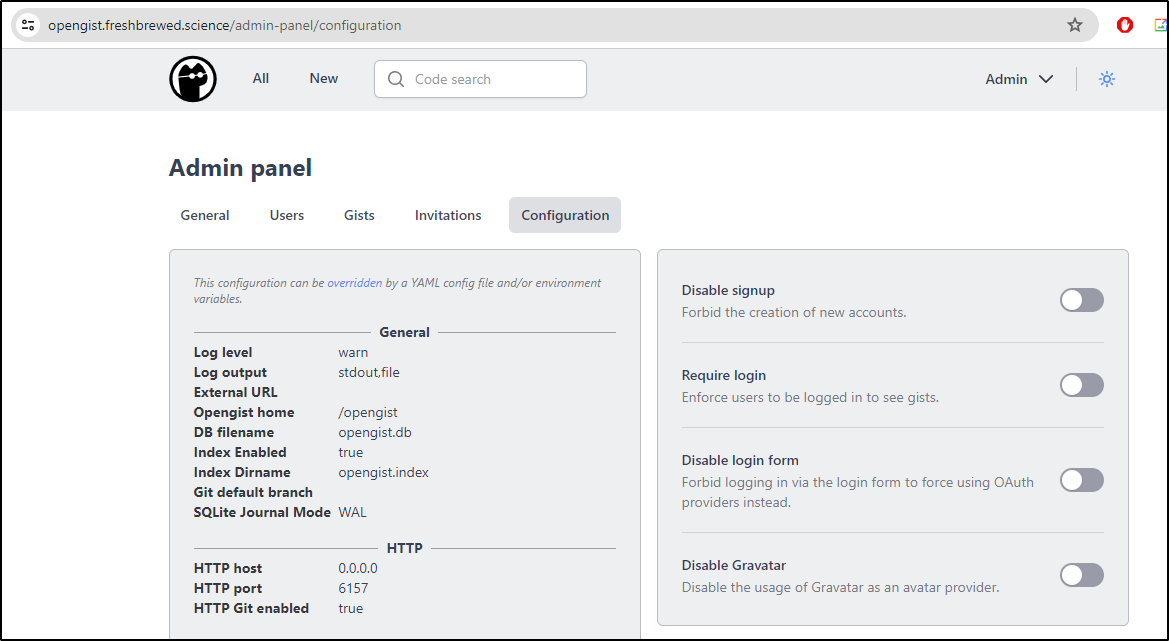

There are some Admin settings we could turn on

These include disabling signup, gravatars or requiring login to access.

Linx Server

Let’s look at another containerized app for sharing everything from photos to code snippets, Linx.

Let’s look first at the Docker compose file

version: '2.2'
services:
  linx-server:
    container_name: linx-server
    image: andreimarcu/linx-server
    command: -config /data/linx-server.conf
    volumes:
      - /path/to/files:/data/files
      - /path/to/meta:/data/meta
      - /path/to/linx-server.conf:/data/linx-server.conf
    network_mode: bridge
    ports:
      - "8080:8080"
    restart: unless-stopped

https://github.com/andreimarcu/linx-server

I think we can turn that into a Kubernetes manifest without much trouble

builder@DESKTOP-QADGF36:~/Workspaces/linx$ cat manifest.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: linxfile-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 2Gi
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: linxmeta-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 1Gi
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: linx-server-configmap
data:
  linx-server.conf: |
    bind: 127.0.0.1:8080
    sitename: myLinx
    maxsize: 4294967296
    maxexpiry: 86400
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: linx-server-deployment
spec:
  replicas: 1
  selector:
    matchLabels:
      app: linx-server
  template:
    metadata:
      labels:
        app: linx-server
    spec:
      containers:
        - name: linx-server
          image: andreimarcu/linx-server
          command: ["-config", "/data/linx-server.conf"]
          ports:
          - containerPort: 8080
            protocol: TCP
          volumeMounts:
          - name: config-volume
            mountPath: /data/linx-server.conf
            subPath: linx-server.conf
          - name: linx-file-volume
            mountPath: /data/files
          - name: linx-meta-volume
            mountPath: /data/meta
      volumes:
        - name: config-volume
          configMap:
            defaultMode: 420
            name: linx-server-configmap
        - name: linx-file-volume
          persistentVolumeClaim:
            claimName: linxfile-pvc
        - name: linx-meta-volume
          persistentVolumeClaim:
            claimName: linxmeta-pvc
---
apiVersion: v1
kind: Service
metadata:
  name: linx-server-service
spec:
  selector:
    app: linx-server
  ports:
    - protocol: TCP
      port: 8080
      targetPort: 8080

I can now create with a quick kubectl command

$ kubectl apply -f ./manifest.yaml
persistentvolumeclaim/linxfile-pvc created
persistentvolumeclaim/linxmeta-pvc created
configmap/linx-server-configmap created
deployment.apps/linx-server-deployment created
service/linx-server-service created

The first issue I noticed was the command wasn’t quite right and was causing the pod to fall over

builder@DESKTOP-QADGF36:~/Workspaces/linx$ kubectl get pods -l app=linx-server
NAME                                      READY   STATUS             RESTARTS      AGE
linx-server-deployment-58cf6bd897-vnmbt   0/1     CrashLoopBackOff   3 (28s ago)   76s
builder@DESKTOP-QADGF36:~/Workspaces/linx$ kubectl logs linx-server-deployment-58cf6bd897-vnmbt
builder@DESKTOP-QADGF36:~/Workspaces/linx$ kubectl describe pod linx-server-deployment-58cf6bd897-vnmbt | tail -n 10
  ----     ------     ----               ----               -------
  Normal   Scheduled  77s                default-scheduler  Successfully assigned default/linx-server-deployment-58cf6bd897-vnmbt to builder-hp-elitebook-745-g5
  Normal   Pulled     75s                kubelet            Successfully pulled image "andreimarcu/linx-server" in 1.970830284s (1.970857312s including waiting)
  Normal   Pulled     74s                kubelet            Successfully pulled image "andreimarcu/linx-server" in 628.179356ms (628.218327ms including waiting)
  Normal   Pulled     58s                kubelet            Successfully pulled image "andreimarcu/linx-server" in 403.825084ms (403.850088ms including waiting)
  Normal   Pulling    35s (x4 over 77s)  kubelet            Pulling image "andreimarcu/linx-server"
  Normal   Pulled     35s                kubelet            Successfully pulled image "andreimarcu/linx-server" in 403.600029ms (403.629153ms including waiting)
  Normal   Created    35s (x4 over 75s)  kubelet            Created container linx-server
  Warning  Failed     35s (x4 over 75s)  kubelet            Error: failed to create containerd task: failed to create shim task: OCI runtime create failed: runc create failed: unable to start container process: exec: "-config": executable file not found in $PATH: unknown
  Warning  BackOff    8s (x7 over 74s)   kubelet            Back-off restarting failed container linx-server in pod linx-server-deployment-58cf6bd897-vnmbt_default(c57599bb-640e-47f9-b7a0-a1bc6914ff36)

I decided to test locally by making the dirs and conf file

$ mkdir -p /home/builder/Workspaces/linx/meta
$ mkdir -p /home/builder/Workspaces/linx/files
$ cat /home/builder/Workspaces/linx/linx-server.conf:
bind = 127.0.0.1:8899
sitename = myLinx
maxsize = 4294967296
maxexpiry = 86400

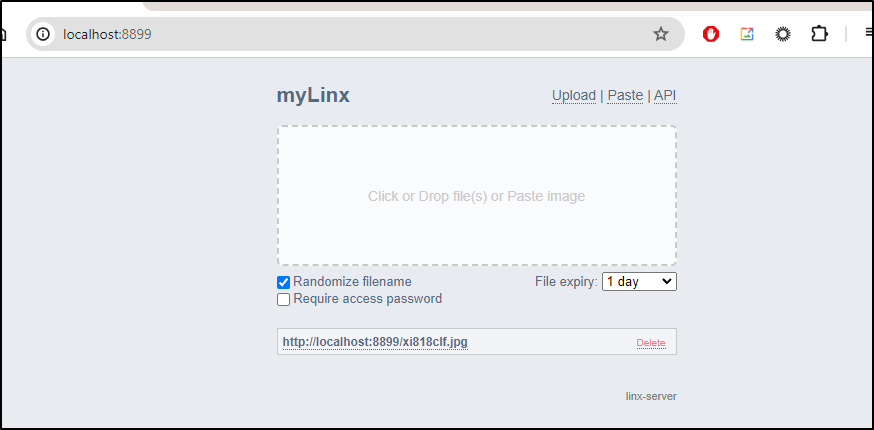

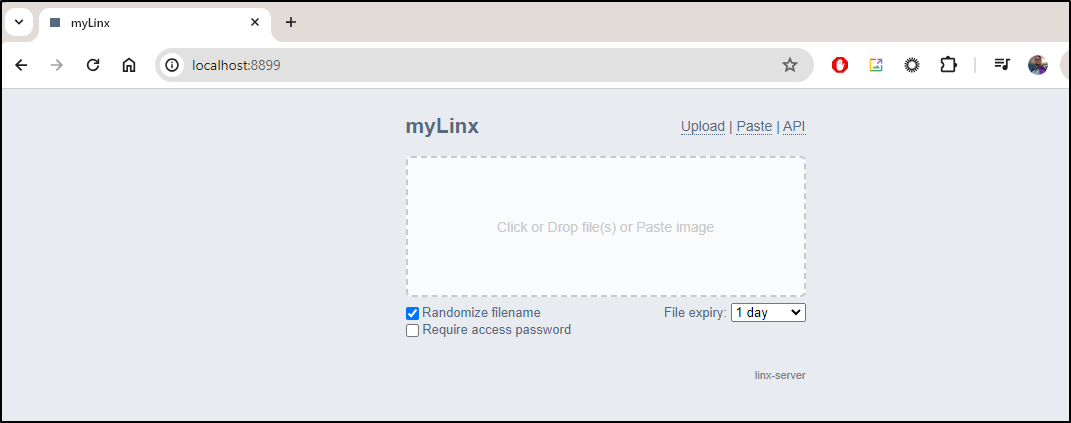

Then running the container locally

builder@DESKTOP-QADGF36:~/Workspaces/linx$  docker run -p 8899:8899 -v /home/builder/Workspaces/linx/files:/data/files -v /home/builder/Workspaces/linx/meta:/data/meta -v /home/builder/Workspaces/linx/linx-server.conf:/data/linx-server.conf andreimarcu/linx-server -config /data/linx-server.conf

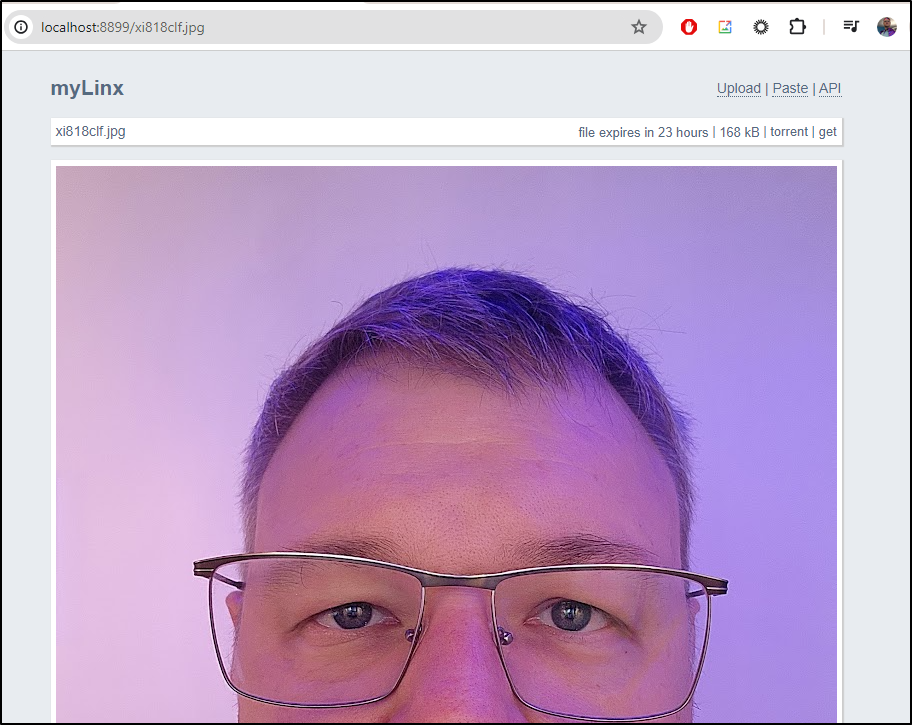

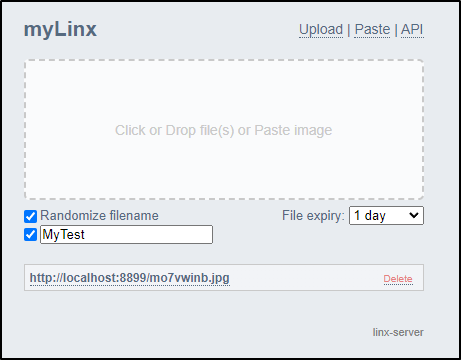

2024/04/26 11:06:11 Serving over http, bound on 0.0.0.0:8080

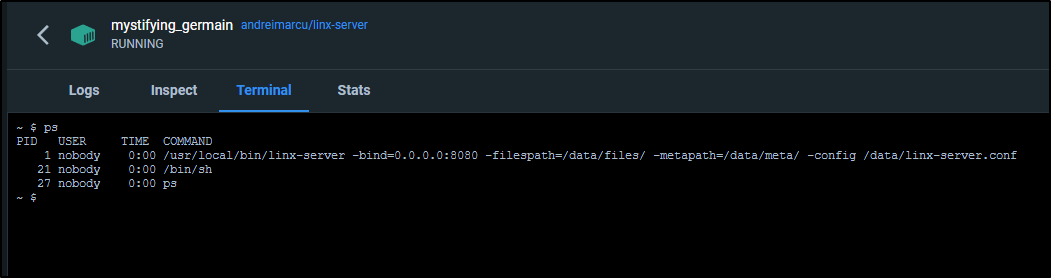

Using Docker Desktop, I looked up the actual running command

which was

~ $ ps
PID   USER     TIME  COMMAND
    1 nobody    0:00 /usr/local/bin/linx-server -bind=0.0.0.0:8080 -filespath=/data/files/ -metapath=/data/meta/ -config /data/linx-server.conf
   21 nobody    0:00 /bin/sh
   27 nobody    0:00 ps
~ $
~ $

Let’s change the command block to match as well as the configmap to use “=” instead of “:”

$ cat manifest.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: linxfile-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 2Gi
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: linxmeta-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 1Gi
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: linx-server-configmap
data:
  linx-server.conf: |
    bind = 127.0.0.1:8080
    sitename = myLinx
    maxsize = 4294967296
    maxexpiry = 86400
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: linx-server-deployment
spec:
  replicas: 1
  selector:
    matchLabels:
      app: linx-server
  template:
    metadata:
      labels:
        app: linx-server
    spec:
      containers:
        - name: linx-server
          image: andreimarcu/linx-server
          command:
            - "/usr/local/bin/linx-server"
            - "-bind=0.0.0.0:8080"
            - "-filespath=/data/files/"
            - "-metapath=/data/meta/"
            - "-config"
            - "/data/linx-server.conf"
          ports:
          - containerPort: 8080
            protocol: TCP
          volumeMounts:
          - name: config-volume
            mountPath: /data/linx-server.conf
            subPath: linx-server.conf
          - name: linx-file-volume
            mountPath: /data/files
          - name: linx-meta-volume
            mountPath: /data/meta
      volumes:
        - name: config-volume
          configMap:
            defaultMode: 420
            name: linx-server-configmap
        - name: linx-file-volume
          persistentVolumeClaim:
            claimName: linxfile-pvc
        - name: linx-meta-volume
          persistentVolumeClaim:
            claimName: linxmeta-pvc
---
apiVersion: v1
kind: Service
metadata:
  name: linx-server-service
spec:
  selector:
    app: linx-server
  ports:
    - protocol: TCP
      port: 8080
      targetPort: 8080

Let’s apply

builder@DESKTOP-QADGF36:~/Workspaces/linx$ kubectl apply -f ./manifest.yaml
persistentvolumeclaim/linxfile-pvc unchanged
persistentvolumeclaim/linxmeta-pvc unchanged
configmap/linx-server-configmap configured
deployment.apps/linx-server-deployment configured
service/linx-server-service unchanged

This time it worked

$ kubectl get pods -l app=linx-server
NAME                                      READY   STATUS    RESTARTS   AGE
linx-server-deployment-5cbf857bb5-897cr   1/1     Running   0          38s

I port-forwarded to the pod

$ kubectl port-forward linx-server-deployment-5cbf857bb5-897cr 8899:8080
Forwarding from 127.0.0.1:8899 -> 8080
Forwarding from [::1]:8899 -> 8080
Handling connection for 8899
Handling connection for 8899
Handling connection for 8899
Handling connection for 8899

I can now see the site

I clicked the box and uploaded an image

And I can verify it comes up

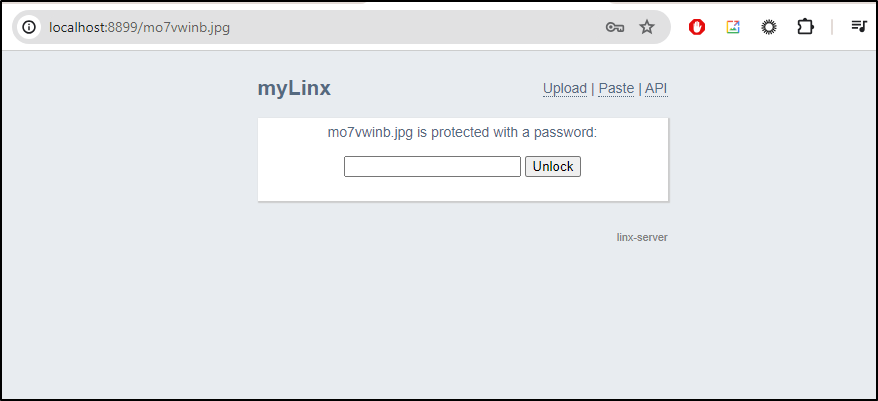

If I enter a password when uploading, it will upload and create a URL

Which I would need to enter to view the file

On this tool, let’s expose but use Azure DNS this time

$ az account set --subscription "Pay-As-You-Go" && az network dns record-set a add-record -g idjdnsrg -z tpk.pw -a 75.73.224.240 -n linx
{
  "ARecords": [
    {
      "ipv4Address": "75.73.224.240"
    }
  ],
  "TTL": 3600,
  "etag": "f49fe289-7963-4ad7-a330-0e82b10b70ae",
  "fqdn": "linx.tpk.pw.",
  "id": "/subscriptions/d955c0ba-13dc-44cf-a29a-8fed74cbb22d/resourceGroups/idjdnsrg/providers/Microsoft.Network/dnszones/tpk.pw/A/linx",
  "name": "linx",
  "provisioningState": "Succeeded",
  "resourceGroup": "idjdnsrg",
  "targetResource": {},
  "type": "Microsoft.Network/dnszones/A"
}

I’ll now create an ingress manifest

$ cat linx.ingress.yaml
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  annotations:
    cert-manager.io/cluster-issuer: azuredns-tpkpw
    ingress.kubernetes.io/ssl-redirect: "true"
    kubernetes.io/ingress.class: nginx
    kubernetes.io/tls-acme: "true"
    nginx.ingress.kubernetes.io/ssl-redirect: "true"
  name: linx-ingress
spec:
  rules:
  - host: linx.tpk.pw
    http:
      paths:
      - backend:
          service:
            name: linx-server-service
            port:
              number: 8080
        path: /
        pathType: Prefix
  tls:
  - hosts:
    - linx.tpk.pw
    secretName: linx-tls

And apply it

$ kubectl apply -f ./linx.ingress.yaml
ingress.networking.k8s.io/linx-ingress created

It was soon sorted

builder@DESKTOP-QADGF36:~$ kubectl get cert linx-tls
NAME       READY   SECRET     AGE
linx-tls   False   linx-tls   56s
builder@DESKTOP-QADGF36:~$ kubectl get cert linx-tls
NAME       READY   SECRET     AGE
linx-tls   True    linx-tls   85s

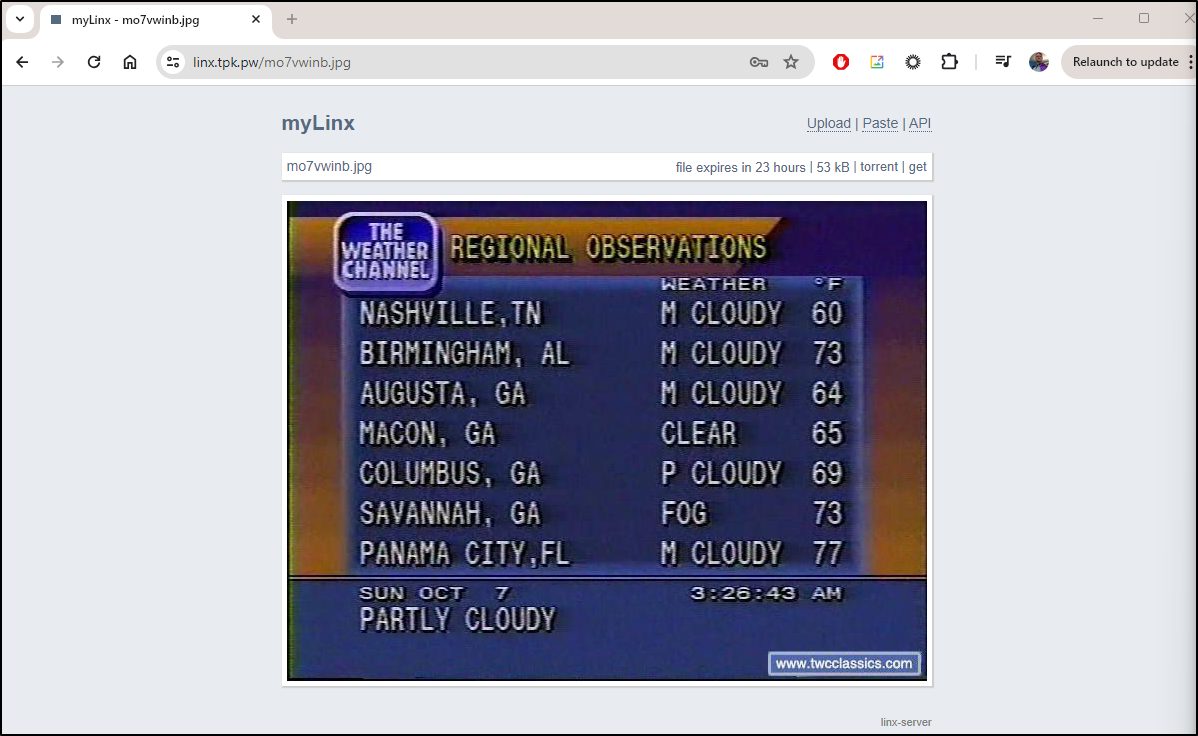

Now that it’s exposed, I can check it is working

Passwords

The author does support passwords by way of the scrypted library.

I’m still a bit stumped on how to generate them.

For instance, looking at the test code

package apikeys

import (
	"testing"
)

func TestCheckAuth(t *testing.T) {
	authKeys := []string{
		"vhvZ/PT1jeTbTAJ8JdoxddqFtebSxdVb0vwPlYO+4HM=",
		"vFpNprT9wbHgwAubpvRxYCCpA2FQMAK6hFqPvAGrdZo=",
	}

	if r, err := CheckAuth(authKeys, ""); err != nil && r {
		t.Fatal("Authorization passed for empty key")
	}

	if r, err := CheckAuth(authKeys, "thisisnotvalid"); err != nil && r {
		t.Fatal("Authorization passed for invalid key")
	}

	if r, err := CheckAuth(authKeys, "haPVipRnGJ0QovA9nyqK"); err != nil && !r {
		t.Fatal("Authorization failed for valid key")
	}
}

We see that somehow one of these two keys

		"vhvZ/PT1jeTbTAJ8JdoxddqFtebSxdVb0vwPlYO+4HM=",
		"vFpNprT9wbHgwAubpvRxYCCpA2FQMAK6hFqPvAGrdZo=",

matches

haPVipRnGJ0QovA9nyqK

Looking at the scrypted conf

const (
	scryptSalt   = "linx-server"
	scryptN      = 16384
	scryptr      = 8
	scryptp      = 1
	scryptKeyLen = 32
)

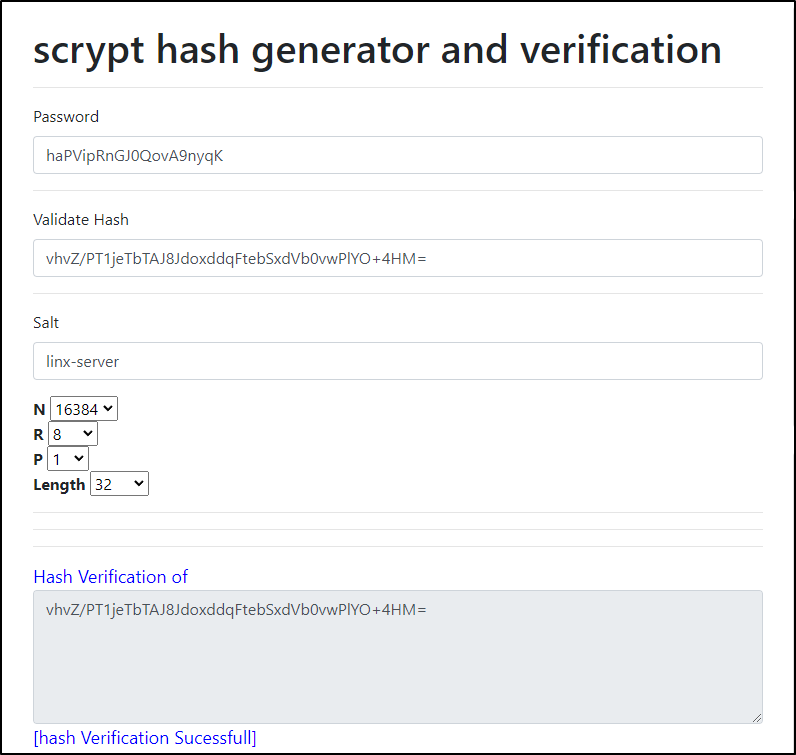

I found a web encrypter that worked at https://8gwifi.org/scrypt.jsp.

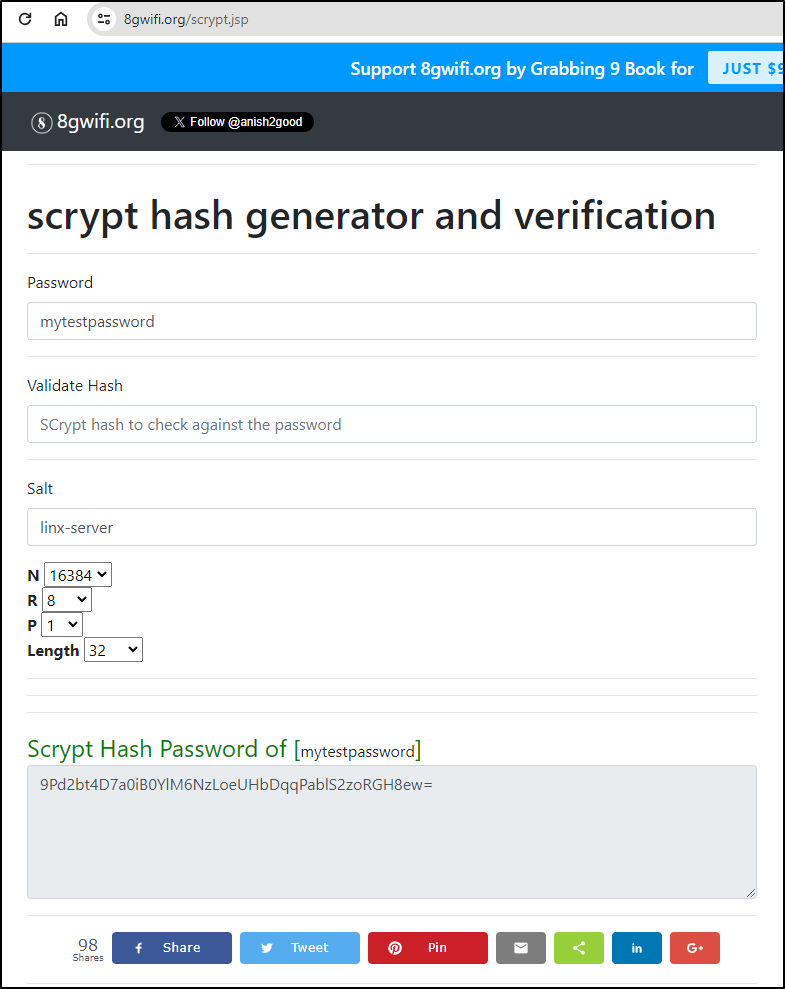

I’ll try and create a test password to use

Which I can use in the manifest

$ cat ./manifest.yaml
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: linxfile-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 2Gi
---
apiVersion: v1
kind: PersistentVolumeClaim
metadata:
  name: linxmeta-pvc
spec:
  accessModes:
    - ReadWriteOnce
  resources:
    requests:
      storage: 1Gi
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: linx-server-auth
data:
  authfile.conf: |
    9Pd2bt4D7a0iB0YlM6NzLoeUHbDqqPablS2zoRGH8ew=
---
apiVersion: v1
kind: ConfigMap
metadata:
  name: linx-server-configmap
data:
  linx-server.conf: |
    bind = 127.0.0.1:8080
    sitename = myLinx
    maxsize = 4294967296
    maxexpiry = 86400
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: linx-server-deployment
spec:
  replicas: 1
  selector:
    matchLabels:
      app: linx-server
  template:
    metadata:
      labels:
        app: linx-server
    spec:
      containers:
        - name: linx-server
          image: andreimarcu/linx-server
          command:
            - "/usr/local/bin/linx-server"
            - "-bind=0.0.0.0:8080"
            - "-filespath=/data/files/"
            - "-metapath=/data/meta/"
            - "-authfile=/data/authfile.conf"
            - "-basicauth=true"
            - "-config"
            - "/data/linx-server.conf"
          ports:
          - containerPort: 8080
            protocol: TCP
          volumeMounts:
          - name: config-volume
            mountPath: /data/linx-server.conf
            subPath: linx-server.conf
          - name: auth-volume
            mountPath: /data/authfile.conf
            subPath: authfile.conf
          - name: linx-file-volume
            mountPath: /data/files
          - name: linx-meta-volume
            mountPath: /data/meta
      volumes:
        - name: config-volume
          configMap:
            defaultMode: 420
            name: linx-server-configmap
        - name: auth-volume
          configMap:
            defaultMode: 420
            name: linx-server-auth
        - name: linx-file-volume
          persistentVolumeClaim:
            claimName: linxfile-pvc
        - name: linx-meta-volume
          persistentVolumeClaim:
            claimName: linxmeta-pvc
---
apiVersion: v1
kind: Service
metadata:
  name: linx-server-service
spec:
  selector:
    app: linx-server
  ports:
    - protocol: TCP
      port: 8080
      targetPort: 8080

I’ll apply

$ kubectl apply -f ./manifest.yaml
persistentvolumeclaim/linxfile-pvc unchanged
persistentvolumeclaim/linxmeta-pvc unchanged
configmap/linx-server-auth configured
configmap/linx-server-configmap unchanged
deployment.apps/linx-server-deployment unchanged
service/linx-server-service unchanged

Then rotate the pod to make the configmap take affect

$ kubectl delete pod -l app=linx-server
pod "linx-server-deployment-688974f8c5-j24gr" deleted

Here you can see using the password in action

To change passwords, generate in a similar fashion, update the manifest and rotate the pod

builder@DESKTOP-QADGF36:~/Workspaces/linx$ !v
vi manifest.yaml
builder@DESKTOP-QADGF36:~/Workspaces/linx$ kubectl delete pod -l app=linx-server
pod "linx-server-deployment-688974f8c5-ffxdp" deleted

Summary

Today we explored setting up Opengist, an easy-to-use code sharing tool. Once exposed via TLS in Kubernetes, we explored several of its features including git cloning, passwords and accounts. We did have to punt on SSH as my Ingress makes that a bit of a challenge.

Second, we looked at Linx-server, a nice Open-source media sharing tool. As before, we set this up in Kubernetes and exposed it via TLS. Lastly, we looked into how passwords work and how one can generate and update new ones.
