Dockerizing Tests: Part 2

Published: Apr 5, 2022 by Isaac Johnson

In our last post, we covered how to containerize our tests as part of a docker build. Today we will continue that idea to see how we can move the building of images off our local systems into the cloud or via a GitOps systems. To start, we’ll explore is via Azure using Azure Container Registry (ACR).

Additionally, we’ll look at GitOps, this time via Flux built-in to AKS as a preview feature to automatically deploy the containers we are building and tagging in ACR.

Create an ACR

Azure Container Registry (ACR) can be used for much more than just storing OCI compliant images.

First, let’s create a resource group

$ az group create --location centralus -n idjacrdemo02
{
  "id": "/subscriptions/8defc61d-657a-453d-a6ff-cb9f91289a61/resourceGroups/idjacrdemo02",
  "location": "centralus",
  "managedBy": null,
  "name": "idjacrdemo02",
  "properties": {
    "provisioningState": "Succeeded"
  },
  "tags": null,
  "type": "Microsoft.Resources/resourceGroups"
}

I would like us to try a preview feature of ACR which is to log to a Log Analytics WS. Let’s also create a workspace

$ az monitor log-analytics workspace create -g idjacrdemo02 --workspace-name idjacrws
{
  "createdDate": "Wed, 06 Apr 2022 11:12:36 GMT",
  "customerId": "e2ab502d-265c-4130-a12b-8bd284342e6d",
  "eTag": null,
  "features": {
    "clusterResourceId": null,
    "disableLocalAuth": null,
    "enableDataExport": null,
    "enableLogAccessUsingOnlyResourcePermissions": true,
    "immediatePurgeDataOn30Days": null,
    "legacy": 0,
    "searchVersion": 1
  },
  "forceCmkForQuery": null,
  "id": "/subscriptions/8defc61d-657a-453d-a6ff-cb9f91289a61/resourcegroups/idjacrdemo02/providers/microsoft.operationalinsights/workspaces/idjacrws",
  "location": "centralus",
  "modifiedDate": "Wed, 06 Apr 2022 11:12:37 GMT",
  "name": "idjacrws",
  "privateLinkScopedResources": null,
  "provisioningState": "Succeeded",
  "publicNetworkAccessForIngestion": "Enabled",
  "publicNetworkAccessForQuery": "Enabled",
  "resourceGroup": "idjacrdemo02",
  "retentionInDays": 30,
  "sku": {
    "capacityReservationLevel": null,
    "lastSkuUpdate": "Wed, 06 Apr 2022 11:12:36 GMT",
    "name": "pergb2018"
  },
  "tags": null,
  "type": "Microsoft.OperationalInsights/workspaces",
  "workspaceCapping": {
    "dailyQuotaGb": -1.0,
    "dataIngestionStatus": "RespectQuota",
    "quotaNextResetTime": "Wed, 06 Apr 2022 19:00:00 GMT"
  }
}

Then we can create our ACR and point it to the workspace

$ az acr create -n idjacrdemo02 -g idjacrdemo02 --workspace idjacrws --admin-enabled true --sku Standard
Argument '--workspace' is in preview and under development. Reference and support levels: https://aka.ms/CLI_refstatus
{
  "adminUserEnabled": true,
  "anonymousPullEnabled": false,
  "creationDate": "2022-04-06T11:11:06.021628+00:00",
  "dataEndpointEnabled": false,
  "dataEndpointHostNames": [],
  "encryption": {
    "keyVaultProperties": null,
    "status": "disabled"
  },
  "id": "/subscriptions/8defc61d-657a-453d-a6ff-cb9f91289a61/resourceGroups/idjacrdemo02/providers/Microsoft.ContainerRegistry/registries/idjacrdemo02",
  "identity": null,
  "location": "centralus",
  "loginServer": "idjacrdemo02.azurecr.io",
  "name": "idjacrdemo02",
  "networkRuleBypassOptions": "AzureServices",
  "networkRuleSet": null,
  "policies": {
    "exportPolicy": {
      "status": "enabled"
    },
    "quarantinePolicy": {
      "status": "disabled"
    },
    "retentionPolicy": {
      "days": 7,
      "lastUpdatedTime": "2022-04-06T11:13:47.500489+00:00",
      "status": "disabled"
    },
    "trustPolicy": {
      "status": "disabled",
      "type": "Notary"
    }
  },
  "privateEndpointConnections": [],
  "provisioningState": "Succeeded",
  "publicNetworkAccess": "Enabled",
  "resourceGroup": "idjacrdemo02",
  "sku": {
    "name": "Standard",
    "tier": "Standard"
  },
  "status": null,
  "systemData": {
    "createdAt": "2022-04-06T11:11:06.021628+00:00",
    "createdBy": "Isaac.Johnson@mediware.com",
    "createdByType": "User",
    "lastModifiedAt": "2022-04-06T11:13:47.329755+00:00",
    "lastModifiedBy": "Isaac.Johnson@mediware.com",
    "lastModifiedByType": "User"
  },
  "tags": {},
  "type": "Microsoft.ContainerRegistry/registries",
  "zoneRedundancy": "Disabled"
}

/content/images/2022/04/dockerwithtests2-01.png

With this made, we could just start building in ACR using the Azure CLI

If you recall our workspace from the last blog:

builder@DESKTOP-QADGF36:~/Workspaces/dockerWithTests2$ ls
Dockerfile  node_modules  package-lock.json  package.json  server.js  tests

(and if you want to just catch up, the repo is public, just git clone https://github.com/idjohnson/dockerWithTests2.git)

Building with Azure CLI

Just run the build command locally:

$ az acr build --registry idjacrdemo02 --image dockerwithtests:v1 .
Packing source code into tar to upload...
Excluding '.gitignore' based on default ignore rules
Excluding '.git' based on default ignore rules
Uploading archived source code from '/tmp/build_archive_705f45bdd13d486d8cd62dcb70c6b031.tar.gz'...
Sending context (5.175 MiB) to registry: idjacrdemo02...
Queued a build with ID: cj1
Waiting for an agent...
2022/04/06 11:18:54 Downloading source code...
2022/04/06 11:18:55 Finished downloading source code
2022/04/06 11:18:55 Using acb_vol_6759b62c-79bb-4eac-804c-3a518ca7c2ab as the home volume
2022/04/06 11:18:55 Setting up Docker configuration...
2022/04/06 11:18:56 Successfully set up Docker configuration
2022/04/06 11:18:56 Logging in to registry: idjacrdemo02.azurecr.io
2022/04/06 11:18:57 Successfully logged into idjacrdemo02.azurecr.io
2022/04/06 11:18:57 Executing step ID: build. Timeout(sec): 28800, Working directory: '', Network: ''
2022/04/06 11:18:57 Scanning for dependencies...
2022/04/06 11:18:57 Successfully scanned dependencies
2022/04/06 11:18:57 Launching container with name: build
Sending build context to Docker daemon  21.38MB
Step 1/13 : FROM node:17.6.0 as base
17.6.0: Pulling from library/node
e4d61adff207: Already exists
4ff1945c672b: Already exists
ff5b10aec998: Already exists
12de8c754e45: Already exists
ada1762e7602: Pulling fs layer
6d1aaa85aab9: Pulling fs layer
a238e70d0a8a: Pulling fs layer
a9d886ece6c9: Pulling fs layer
a213b9afda04: Pulling fs layer
a9d886ece6c9: Waiting
a213b9afda04: Waiting
6d1aaa85aab9: Verifying Checksum
6d1aaa85aab9: Download complete
a238e70d0a8a: Verifying Checksum
a238e70d0a8a: Download complete
a9d886ece6c9: Verifying Checksum
a9d886ece6c9: Download complete
a213b9afda04: Verifying Checksum
a213b9afda04: Download complete
ada1762e7602: Verifying Checksum
ada1762e7602: Download complete
ada1762e7602: Pull complete
6d1aaa85aab9: Pull complete
a238e70d0a8a: Pull complete
a9d886ece6c9: Pull complete
a213b9afda04: Pull complete
Digest: sha256:08e37ce0636ad9796900a180f2539f3110648e4f2c1b541bc0d4d3039e6b3251
Status: Downloaded newer image for node:17.6.0
 ---> 36fad710e29d
Step 2/13 : WORKDIR /code
 ---> Running in 234b0e7f20b9
Removing intermediate container 234b0e7f20b9
 ---> 9a0972c93165
Step 3/13 : COPY package.json package.json
 ---> b38febe7fe04
Step 4/13 : COPY package-lock.json package-lock.json
 ---> 1faaf1f6ab47
Step 5/13 : FROM base as test
 ---> 1faaf1f6ab47
Step 6/13 : RUN npm ci
 ---> Running in f53e7bfc49d3

added 209 packages, and audited 210 packages in 5s

27 packages are looking for funding
  run `npm fund` for details

found 0 vulnerabilities
npm notice
npm notice New minor version of npm available! 8.5.1 -> 8.6.0
npm notice Changelog: <https://github.com/npm/cli/releases/tag/v8.6.0>
npm notice Run `npm install -g npm@8.6.0` to update!
npm notice
Removing intermediate container f53e7bfc49d3
 ---> 643376414f6f
Step 7/13 : COPY . .
 ---> ea5694f0498e
Step 8/13 : RUN npm run test
 ---> Running in fc23f763b595

> nodewithtests@1.0.0 test
> mocha ./**/*.js



  Array
    #indexOf()
      ✔ should return -1 when the value is missing


  1 passing (11ms)

Removing intermediate container fc23f763b595
 ---> a2b05fa2d1f6
Step 9/13 : FROM base as prod
 ---> 1faaf1f6ab47
Step 10/13 : ENV NODE_ENV=production
 ---> Running in 9d3689b4d014
Removing intermediate container 9d3689b4d014
 ---> 426ba37e640e
Step 11/13 : RUN npm ci --production
 ---> Running in fe574e6b69ca

added 132 packages, and audited 133 packages in 3s

8 packages are looking for funding
  run `npm fund` for details

found 0 vulnerabilities
npm notice
npm notice New minor version of npm available! 8.5.1 -> 8.6.0
npm notice Changelog: <https://github.com/npm/cli/releases/tag/v8.6.0>
npm notice Run `npm install -g npm@8.6.0` to update!
npm notice
Removing intermediate container fe574e6b69ca
 ---> 338a31360ce9
Step 12/13 : COPY . .
 ---> 0e4c26442e62
Step 13/13 : CMD [ "node", "server.js" ]
 ---> Running in 3f8a5698b1ee
Removing intermediate container 3f8a5698b1ee
 ---> 9ed84ef34c60
Successfully built 9ed84ef34c60
Successfully tagged idjacrdemo02.azurecr.io/dockerwithtests:v1
2022/04/06 11:19:41 Successfully executed container: build
2022/04/06 11:19:41 Executing step ID: push. Timeout(sec): 3600, Working directory: '', Network: ''
2022/04/06 11:19:41 Pushing image: idjacrdemo02.azurecr.io/dockerwithtests:v1, attempt 1
The push refers to repository [idjacrdemo02.azurecr.io/dockerwithtests]
0587f5174c9d: Preparing
00b8f07d9446: Preparing
20af7065848e: Preparing
cb8d14911f50: Preparing
3210d9f31b35: Preparing
0d26169e1f03: Preparing
ee94197d9e68: Preparing
d7650b5a3403: Preparing
070a1f23eb0a: Preparing
316e3949bffa: Preparing
e3f84a8cee1f: Preparing
48144a6f44ae: Preparing
26d5108b2cba: Preparing
89fda00479fc: Preparing
0d26169e1f03: Waiting
ee94197d9e68: Waiting
d7650b5a3403: Waiting
070a1f23eb0a: Waiting
316e3949bffa: Waiting
e3f84a8cee1f: Waiting
48144a6f44ae: Waiting
26d5108b2cba: Waiting
89fda00479fc: Waiting
cb8d14911f50: Pushed
20af7065848e: Pushed
3210d9f31b35: Pushed
0d26169e1f03: Pushed
00b8f07d9446: Pushed
0587f5174c9d: Pushed
ee94197d9e68: Pushed
070a1f23eb0a: Pushed
d7650b5a3403: Pushed
26d5108b2cba: Pushed
48144a6f44ae: Pushed
316e3949bffa: Pushed
89fda00479fc: Pushed
e3f84a8cee1f: Pushed
v1: digest: sha256:483c9370db7036f199efdb7c17c7e66c67cdfaa0e9bd8d15e17708539ce102ac size: 3259
2022/04/06 11:20:19 Successfully pushed image: idjacrdemo02.azurecr.io/dockerwithtests:v1
2022/04/06 11:20:19 Step ID: build marked as successful (elapsed time in seconds: 44.207690)
2022/04/06 11:20:19 Populating digests for step ID: build...
2022/04/06 11:20:20 Successfully populated digests for step ID: build
2022/04/06 11:20:20 Step ID: push marked as successful (elapsed time in seconds: 37.840104)
2022/04/06 11:20:20 The following dependencies were found:
2022/04/06 11:20:20
- image:
    registry: idjacrdemo02.azurecr.io
    repository: dockerwithtests
    tag: v1
    digest: sha256:483c9370db7036f199efdb7c17c7e66c67cdfaa0e9bd8d15e17708539ce102ac
  runtime-dependency:
    registry: registry.hub.docker.com
    repository: library/node
    tag: 17.6.0
    digest: sha256:08e37ce0636ad9796900a180f2539f3110648e4f2c1b541bc0d4d3039e6b3251
  git: {}

Run ID: cj1 was successful after 1m27s

There is a bit to unpack on the above. Let’s break down what happens above.

First, we upload our repo and then ACR will pull base images

/content/images/2022/04/dockerwithtests2-02.png

ACR the builds the image and runs tests

/content/images/2022/04/dockerwithtests2-03.png

If successful, it will then push the container to ACR (itself) then give us the image details

/content/images/2022/04/dockerwithtests2-04.png

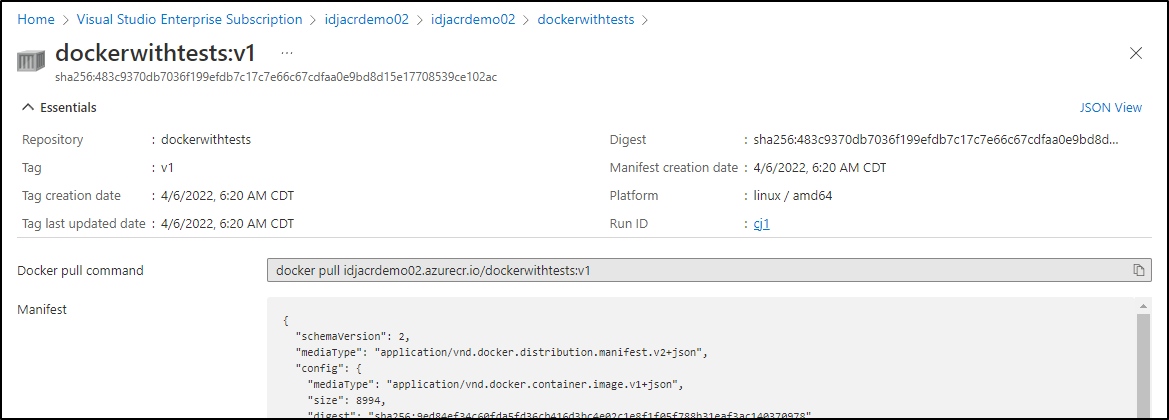

And we can see that reflected in ACR via the portal

/content/images/2022/04/dockerwithtests2-05.png

We can also list the images using the command line

builder@DESKTOP-QADGF36:~/Workspaces/dockerWithTests2$ az acr repository show -n idjacrdemo02 --repository dockerwithtests
{
  "changeableAttributes": {
    "deleteEnabled": true,
    "listEnabled": true,
    "readEnabled": true,
    "teleportEnabled": false,
    "writeEnabled": true
  },
  "createdTime": "2022-04-06T11:20:19.1837284Z",
  "imageName": "dockerwithtests",
  "lastUpdateTime": "2022-04-06T11:20:19.2494238Z",
  "manifestCount": 1,
  "registry": "idjacrdemo02.azurecr.io",
  "tagCount": 1
}
builder@DESKTOP-QADGF36:~/Workspaces/dockerWithTests2$ az acr repository show-tags -n idjacrdemo02 --repository dockerwithtests
[
  "v1"
]

Hookdeck

I’m going to setup HookDeck to do some webhook testing.

We can create an account at https://dashboard.hookdeck.com/signup

/content/images/2022/04/dockerwithtests2-06.png

I’ll use Mock API for now and give a source name

/content/images/2022/04/dockerwithtests2-07.png

Then it will give me the Webhook URL I can use (https://events.hookdeck.com/e/src_nfGNrFa0LOE2JcdY7uyNrpV9)

/content/images/2022/04/dockerwithtests2-08.png

Clicking done will show the dashboard:

/content/images/2022/04/dockerwithtests2-09.png

Next, I’m going to enable a webhook on an repository action on my ACR to use that endpoint. Click “+ Add” from Services/Webhooks in the portal and add the webhook

/content/images/2022/04/dockerwithtests2-10.png

We can see it was created

/content/images/2022/04/dockerwithtests2-11.png

Now let’s build a new tag.

builder@DESKTOP-QADGF36:~/Workspaces/dockerWithTests2$ az acr build --registry idjacrdemo02 --image dockerwithtests:v2 .
Packing source code into tar to upload...
Excluding '.gitignore' based on default ignore rules
Excluding '.git' based on default ignore rules
Uploading archived source code from '/tmp/build_archive_981202325a214146b7ef2e1eeabef0e6.tar.gz'...
Sending context (5.175 MiB) to registry: idjacrdemo02...
Queued a build with ID: cj2
Waiting for an agent...
2022/04/06 11:36:42 Downloading source code...
2022/04/06 11:36:44 Finished downloading source code
2022/04/06 11:36:44 Using acb_vol_573ed97a-c15c-44fa-b74a-30b740029a57 as the home volume
2022/04/06 11:36:44 Setting up Docker configuration...
2022/04/06 11:36:45 Successfully set up Docker configuration
2022/04/06 11:36:45 Logging in to registry: idjacrdemo02.azurecr.io
2022/04/06 11:36:46 Successfully logged into idjacrdemo02.azurecr.io
2022/04/06 11:36:46 Executing step ID: build. Timeout(sec): 28800, Working directory: '', Network: ''
2022/04/06 11:36:46 Scanning for dependencies...
2022/04/06 11:36:46 Successfully scanned dependencies
2022/04/06 11:36:46 Launching container with name: build
Sending build context to Docker daemon  21.38MB
Step 1/13 : FROM node:17.6.0 as base
17.6.0: Pulling from library/node
e4d61adff207: Already exists
4ff1945c672b: Already exists
ff5b10aec998: Already exists
12de8c754e45: Already exists
ada1762e7602: Pulling fs layer
6d1aaa85aab9: Pulling fs layer
a238e70d0a8a: Pulling fs layer
a9d886ece6c9: Pulling fs layer
a213b9afda04: Pulling fs layer
a9d886ece6c9: Waiting
a213b9afda04: Waiting
6d1aaa85aab9: Verifying Checksum
6d1aaa85aab9: Download complete
a9d886ece6c9: Verifying Checksum
a9d886ece6c9: Download complete
a238e70d0a8a: Verifying Checksum
a238e70d0a8a: Download complete
a213b9afda04: Verifying Checksum
a213b9afda04: Download complete
ada1762e7602: Verifying Checksum
ada1762e7602: Download complete
ada1762e7602: Pull complete
6d1aaa85aab9: Pull complete
a238e70d0a8a: Pull complete
a9d886ece6c9: Pull complete
a213b9afda04: Pull complete
Digest: sha256:08e37ce0636ad9796900a180f2539f3110648e4f2c1b541bc0d4d3039e6b3251
Status: Downloaded newer image for node:17.6.0
 ---> 36fad710e29d
Step 2/13 : WORKDIR /code
 ---> Running in 89beefdd8a48
Removing intermediate container 89beefdd8a48
 ---> f85ae95fd37b
Step 3/13 : COPY package.json package.json
 ---> 35880f254bc9
Step 4/13 : COPY package-lock.json package-lock.json
 ---> 05d6e38e0514
Step 5/13 : FROM base as test
 ---> 05d6e38e0514
Step 6/13 : RUN npm ci
 ---> Running in 6441db13d605

added 209 packages, and audited 210 packages in 5s

27 packages are looking for funding
  run `npm fund` for details

found 0 vulnerabilities
npm notice
npm notice New minor version of npm available! 8.5.1 -> 8.6.0
npm notice Changelog: <https://github.com/npm/cli/releases/tag/v8.6.0>
npm notice Run `npm install -g npm@8.6.0` to update!
npm notice
Removing intermediate container 6441db13d605
 ---> 10a2d3f802d3
Step 7/13 : COPY . .
 ---> 15c8ca566443
Step 8/13 : RUN npm run test
 ---> Running in d7b000df4feb

> nodewithtests@1.0.0 test
> mocha ./**/*.js



  Array
    #indexOf()
      ✔ should return -1 when the value is missing


  1 passing (6ms)

Removing intermediate container d7b000df4feb
 ---> 62eb24478ec1
Step 9/13 : FROM base as prod
 ---> 05d6e38e0514
Step 10/13 : ENV NODE_ENV=production
 ---> Running in 22c48708ea0e
Removing intermediate container 22c48708ea0e
 ---> c8f609b723a1
Step 11/13 : RUN npm ci --production
 ---> Running in 3dce3590a07d

added 132 packages, and audited 133 packages in 3s

8 packages are looking for funding
  run `npm fund` for details

found 0 vulnerabilities
npm notice
npm notice New minor version of npm available! 8.5.1 -> 8.6.0
npm notice Changelog: <https://github.com/npm/cli/releases/tag/v8.6.0>
npm notice Run `npm install -g npm@8.6.0` to update!
npm notice
Removing intermediate container 3dce3590a07d
 ---> bbf4e04ac702
Step 12/13 : COPY . .
 ---> 3258675446a4
Step 13/13 : CMD [ "node", "server.js" ]
 ---> Running in e90c99367756
Removing intermediate container e90c99367756
 ---> b37d7953d010
Successfully built b37d7953d010
Successfully tagged idjacrdemo02.azurecr.io/dockerwithtests:v2
2022/04/06 11:37:32 Successfully executed container: build
2022/04/06 11:37:32 Executing step ID: push. Timeout(sec): 3600, Working directory: '', Network: ''
2022/04/06 11:37:32 Pushing image: idjacrdemo02.azurecr.io/dockerwithtests:v2, attempt 1
The push refers to repository [idjacrdemo02.azurecr.io/dockerwithtests]
1a8392fc1475: Preparing
df84361b92e8: Preparing
bf0572ef523b: Preparing
6defdd362e80: Preparing
feb4b72dcc5b: Preparing
0d26169e1f03: Preparing
ee94197d9e68: Preparing
d7650b5a3403: Preparing
070a1f23eb0a: Preparing
316e3949bffa: Preparing
e3f84a8cee1f: Preparing
48144a6f44ae: Preparing
26d5108b2cba: Preparing
89fda00479fc: Preparing
0d26169e1f03: Waiting
ee94197d9e68: Waiting
d7650b5a3403: Waiting
070a1f23eb0a: Waiting
316e3949bffa: Waiting
e3f84a8cee1f: Waiting
48144a6f44ae: Waiting
26d5108b2cba: Waiting
89fda00479fc: Waiting
6defdd362e80: Pushed
feb4b72dcc5b: Pushed
bf0572ef523b: Pushed
ee94197d9e68: Layer already exists
0d26169e1f03: Layer already exists
d7650b5a3403: Layer already exists
070a1f23eb0a: Layer already exists
316e3949bffa: Layer already exists
48144a6f44ae: Layer already exists
e3f84a8cee1f: Layer already exists
26d5108b2cba: Layer already exists
89fda00479fc: Layer already exists
1a8392fc1475: Pushed
df84361b92e8: Pushed
v2: digest: sha256:c814af787e44cdacefc58b3ce2cd93e97e4b54fdd6a39e29e41813f4e36e9077 size: 3259
2022/04/06 11:37:36 Successfully pushed image: idjacrdemo02.azurecr.io/dockerwithtests:v2
2022/04/06 11:37:36 Step ID: build marked as successful (elapsed time in seconds: 46.362353)
2022/04/06 11:37:36 Populating digests for step ID: build...
2022/04/06 11:37:37 Successfully populated digests for step ID: build
2022/04/06 11:37:37 Step ID: push marked as successful (elapsed time in seconds: 3.294926)
2022/04/06 11:37:37 The following dependencies were found:
2022/04/06 11:37:37
- image:
    registry: idjacrdemo02.azurecr.io
    repository: dockerwithtests
    tag: v2
    digest: sha256:c814af787e44cdacefc58b3ce2cd93e97e4b54fdd6a39e29e41813f4e36e9077
  runtime-dependency:
    registry: registry.hub.docker.com
    repository: library/node
    tag: 17.6.0
    digest: sha256:08e37ce0636ad9796900a180f2539f3110648e4f2c1b541bc0d4d3039e6b3251
  git: {}


Run ID: cj2 was successful after 55s

We see it triggered hookdeck

/content/images/2022/04/dockerwithtests2-12.png

The details tell us all we need to know:

/content/images/2022/04/dockerwithtests2-13.png

Here is our body JSON

{
  "id": "9f308453-5c44-43d9-ac5f-afd168105ce1",
  "timestamp": "2022-04-06T11:37:35.669466415Z",
  "action": "push",
  "target": {
    "mediaType": "application/vnd.docker.distribution.manifest.v2+json",
    "size": 3259,
    "digest": "sha256:c814af787e44cdacefc58b3ce2cd93e97e4b54fdd6a39e29e41813f4e36e9077",
    "length": 3259,
    "repository": "dockerwithtests",
    "tag": "v2"
  },
  "request": {
    "id": "554576a7-7267-41b4-8a02-9d6869686bcc",
    "host": "idjacrdemo02.azurecr.io",
    "method": "PUT",
    "useragent": "docker/20.10.9+azure-1 go/go1.16.8 git-commit/79ea9d3080181d755855d5924d0f4f116faa9463 kernel/5.4.0-1068-azure os/linux arch/amd64 UpstreamClient(Docker-Client/20.10.9+azure-1 \\(linux\\))"
  }
}

I should also point out that we are indeed getting logs and events in our ALM workspace

/content/images/2022/04/dockerwithtests2-14.png

which we can use to get all sorts of details; such as Data Types over time

/content/images/2022/04/dockerwithtests2-15.png

or workspace usage

/content/images/2022/04/dockerwithtests2-16.png

So now the question is knowing that we can have ACR trigger webhooks, and knowing that we could enable GitOps in AKS or GKE just as easy, what might be a scalable pattern for automated deployments?

If our ACR is really in charge of the build and tests (CI), what performs the CD?

ACR Tasks

First, create a Github token https://github.com/settings/tokens/new

/content/images/2022/04/dockerwithtests2-17.png

Next we need ot create our task definition file. Per the docs, we can build, tag, test, and push. However, for this simple example, we will just implement build tag and push.

builder@DESKTOP-72D2D9T:~/Workspaces/dockerWithTests2$ vi taskmulti.yaml
builder@DESKTOP-72D2D9T:~/Workspaces/dockerWithTests2$ cat taskmulti.yaml
version: v1.1.0
steps:
# Build target image
- build: -t {{.Run.Registry}}/dockerwithtests:{{.Run.ID}} -f Dockerfile .
# Push image
- push:
  - {{.Run.Registry}}/dockerwithtests:{{.Run.ID}}

Let’s set some env vars then push the task up to ACR

$ ACR_NAME=idjacrdemo02
$ GIT_USER=idjohnson
$ GIT_PAT=ghp_asdfasdfasdfasdasdfasdsdasdasdfasdfasd

Create the task (trigger)

builder@DESKTOP-72D2D9T:~/Workspaces/dockerWithTests2$ az acr task create --registry $ACR_NAME --name gitopstrigger --context https://github.com/$GIT_USER/dockerWithTests2.git#main --file taskmulti.yaml --git-access-token $GIT_PAT
{
  "agentConfiguration": {
    "cpu": 2
  },
  "creationDate": "2022-04-07T02:09:23.708948+00:00",
  "credentials": null,
  "id": "/subscriptions/8defc61d-657a-453d-a6ff-cb9f91289a61/resourceGroups/idjacrdemo02/providers/Microsoft.ContainerRegistry/registries/idjacrdemo02/tasks/gitopstrigger",
  "identity": null,
  "location": "centralus",
  "name": "gitopstrigger",
  "platform": {
    "architecture": "amd64",
    "os": "linux",
    "variant": null
  },
  "provisioningState": "Succeeded",
  "resourceGroup": "idjacrdemo02",
  "status": "Enabled",
  "step": {
    "baseImageDependencies": null,
    "contextAccessToken": null,
    "contextPath": "https://github.com/idjohnson/dockerWithTests2.git#main",
    "taskFilePath": "taskmulti.yaml",
    "type": "FileTask",
    "values": [],
    "valuesFilePath": null
  },
  "systemData": {
    "createdAt": "2022-04-07T02:09:23.5921154+00:00",
    "createdBy": "Isaac.Johnson@mediware.com",
    "createdByType": "User",
    "lastModifiedAt": "2022-04-07T02:09:23.5921154+00:00",
    "lastModifiedBy": "Isaac.Johnson@mediware.com",
    "lastModifiedByType": "User"
  },
  "tags": null,
  "timeout": 3600,
  "trigger": {
    "baseImageTrigger": {
      "baseImageTriggerType": "Runtime",
      "name": "defaultBaseimageTriggerName",
      "status": "Enabled",
      "updateTriggerEndpoint": null,
      "updateTriggerPayloadType": "Default"
    },
    "sourceTriggers": [
      {
        "name": "defaultSourceTriggerName",
        "sourceRepository": {
          "branch": "main",
          "repositoryUrl": "https://github.com/idjohnson/dockerWithTests2.git#main",
          "sourceControlAuthProperties": null,
          "sourceControlType": "Github"
        },
        "sourceTriggerEvents": [
          "commit"
        ],
        "status": "Enabled"
      }
    ],
    "timerTriggers": null
  },
  "type": "Microsoft.ContainerRegistry/registries/tasks"
}

We can see now see the Task in our Registry

/content/images/2022/04/dockerwithtests2-18.png

To test, we add and push

builder@DESKTOP-72D2D9T:~/Workspaces/dockerWithTests2$ git add taskmulti.yaml
builder@DESKTOP-72D2D9T:~/Workspaces/dockerWithTests2$ git commit -m "adding ACR Task steps"
[main dfc2e88] adding ACR Task steps
 1 file changed, 7 insertions(+)
 create mode 100644 taskmulti.yaml
builder@DESKTOP-72D2D9T:~/Workspaces/dockerWithTests2$ git push
Enumerating objects: 4, done.
Counting objects: 100% (4/4), done.
Delta compression using up to 4 threads
Compressing objects: 100% (3/3), done.
Writing objects: 100% (3/3), 413 bytes | 413.00 KiB/s, done.
Total 3 (delta 1), reused 0 (delta 0)
remote: Resolving deltas: 100% (1/1), completed with 1 local object.
To https://github.com/idjohnson/dockerWithTests2.git
   bf22908..dfc2e88  main -> main

And can see a run triggered

/content/images/2022/04/dockerwithtests2-19.png

We can see it built and pushed the new cj3 tag

/content/images/2022/04/dockerwithtests2-20.png

Mutliple tags

Let’s push a tag from Commit

builder@DESKTOP-72D2D9T:~/Workspaces/dockerWithTests2$ cat taskmulti.yaml
version: v1.1.0
steps:
# Build target image
- build: -t {{.Run.Registry}}/dockerwithtests:{{.Run.ID}} -t {{.Run.Registry}}/dockerwithtests:{{.Run.Commit}} -f Dockerfile .
# Push image
- push:
  - {{.Run.Registry}}/dockerwithtests:{{.Run.Commit}}
- push:
  - {{.Run.Registry}}/dockerwithtests:{{.Run.ID}}

/content/images/2022/04/dockerwithtests2-21.png

We can see that for the last week, we’re at $1.18

/content/images/2022/04/dockerwithtests2-22.png

GitOps with AKS

Let’s create a Kubernetes Cluster we can use for Gitops.

First create (or update) a service principal

builder@DESKTOP-72D2D9T:~/Workspaces/dockerWithTests2$ az ad sp create-for-rbac -n idjaks45sp.mediwareinformationsystems.onmicrosoft.com --skip-assignment --output json > my_sp.json
Changing "idjaks45sp.mediwareinformationsystems.onmicrosoft.com" to a valid URI of "http://idjaks45sp.mediwareinformationsystems.onmicrosoft.com", which is the required format used for service principal names
Found an existing application instance of "b2049cf3-082e-47e5-a141-24305989b5a5". We will patch it
builder@DESKTOP-72D2D9T:~/Workspaces/dockerWithTests2$ export SP_PASS=`cat my_sp.json | jq -r .password`
builder@DESKTOP-72D2D9T:~/Workspaces/dockerWithTests2$ export SP_ID=`cat my_sp.json | jq -r .appId`

Then we can make the cluster

builder@DESKTOP-72D2D9T:~/Workspaces/dockerWithTests2$ az aks create --resource-group idjacrdemo02 --name idjaks46 --location centralus --node-c
ount 2 --enable-cluster-autoscaler --min-count 2 --max-count 3 --generate-ssh-keys --network-plugin azure --network-policy azure --service-princ
ipal $SP_ID --client-secret $SP_PASS
 - Running ..

First, we can enable GitOps via the Portal

/content/images/2022/04/dockerwithtests2-23.png

Next, define a workspace to install Flux into and select the scope of the Flux Operator

/content/images/2022/04/dockerwithtests2-24.png

Next, we need our Github URL

builder@DESKTOP-72D2D9T:~/Workspaces/dockerWithTests2$ git remote show origin | head -n4
* remote origin
  Fetch URL: https://github.com/idjohnson/dockerWithTests2.git
  Push  URL: https://github.com/idjohnson/dockerWithTests2.git
  HEAD branch: main

And because we are using a Public repo:

/content/images/2022/04/dockerwithtests2-25.png

we do not need to add auth credentials (but would if we were using a private one)

/content/images/2022/04/dockerwithtests2-26.png

We will store our YAMLs in a “k8s” folder we will create

/content/images/2022/04/dockerwithtests2-27.png

Lastly, review and create

/content/images/2022/04/dockerwithtests2-28.png

We will make a k8s folder now and create a deployment and customization. I’ll use a basic nginx deployment but override with a known image from our ACR

builder@DESKTOP-72D2D9T:~/Workspaces/dockerWithTests2$ cat k8s/deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
  name: my-nginx
spec:
  selector:
    matchLabels:
      run: my-nginx
  replicas: 2
  template:
    metadata:
      labels:
        run: my-nginx
    spec:
      containers:
      - name: my-nginx
        image: nginx
        ports:
        - containerPort: 80
builder@DESKTOP-72D2D9T:~/Workspaces/dockerWithTests2$ cat k8s/kustomization.yaml
resources:
- deployment.yaml
images:
- name: nginx
  newName: idjacrdemo02.azurecr.io/dockerwithtests
  newTag: cj3

We’ll add and push

builder@DESKTOP-72D2D9T:~/Workspaces/dockerWithTests2$ git add k8s/
builder@DESKTOP-72D2D9T:~/Workspaces/dockerWithTests2$ git commit -m "create initial gitops folders"
[main 085a7ee] create initial gitops folders
 2 files changed, 25 insertions(+)
 create mode 100644 k8s/deployment.yaml
 create mode 100644 k8s/kustomization.yaml
builder@DESKTOP-72D2D9T:~/Workspaces/dockerWithTests2$ git push
Enumerating objects: 6, done.
Counting objects: 100% (6/6), done.
Delta compression using up to 4 threads
Compressing objects: 100% (5/5), done.
Writing objects: 100% (5/5), 640 bytes | 320.00 KiB/s, done.
Total 5 (delta 1), reused 0 (delta 0)
remote: Resolving deltas: 100% (1/1), completed with 1 local object.
To https://github.com/idjohnson/dockerWithTests2.git
   e19c83b..085a7ee  main -> main

The problem I encountered, even when I chose GitOps on default, were errors setting up Flux into the AKS cluster. No usable error message was really given.

Via Portal

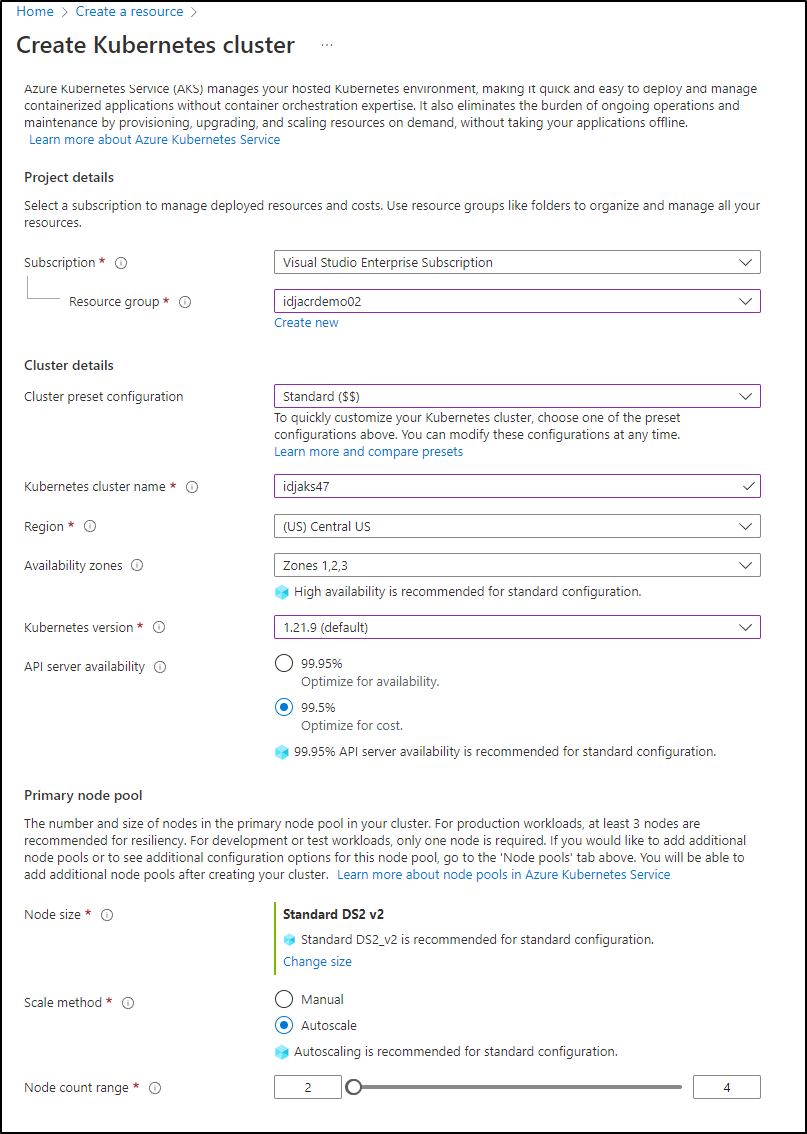

I’ll create a new AKS in the same RG. There are a few more options we can pick in the Portal such as cluster preset configuration and API server availability

/content/images/2022/04/dockerwithtests2-29.png

We could enable AAD based RBAC if we chose here. Then we would manage access via Portal or CLI tying to AD groups. I bring this up as so often I see companies build out Kubernetes and then try to jerry rig in AAD RBAC later. You could save so much time just leveraging AAD at create time.

/content/images/2022/04/dockerwithtests2-30.png

I will enable HTTP application routing as this is a dev cluster

/content/images/2022/04/dockerwithtests2-31.png

We can integrate to our ACR right now in the wizard. This means we won’t need an imagePullSecret later

/content/images/2022/04/dockerwithtests2-32.png

Another advanced feature is to use AKV for secrets management. This works by using sidecars much like Istio or Hashi Vault. You can see more in the setup instructions here

/content/images/2022/04/dockerwithtests2-33.png

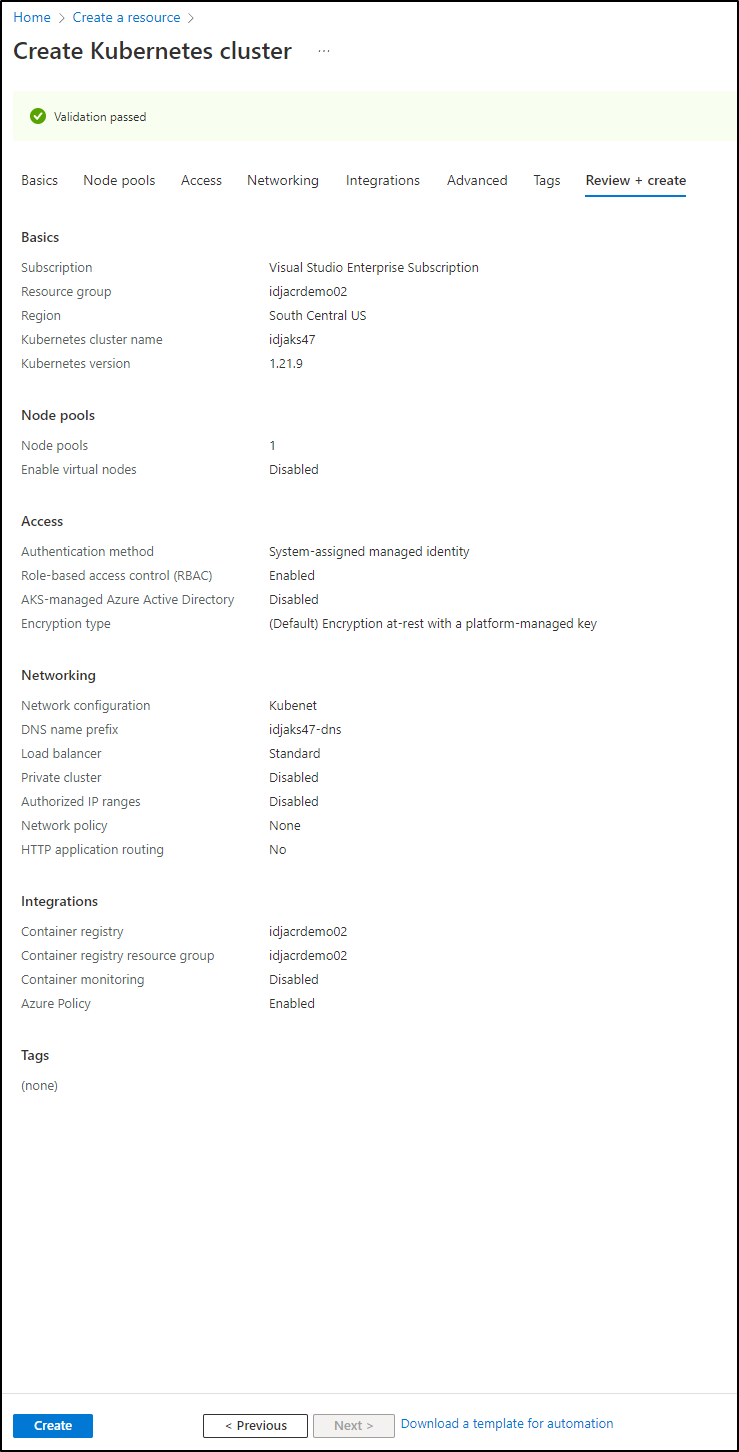

I had to tweak some settings for my subscription including region, but I finally passed validation so i could create

/content/images/2022/04/dockerwithtests2-34.png

We now have our AKS

/content/images/2022/04/dockerwithtests2-35.png

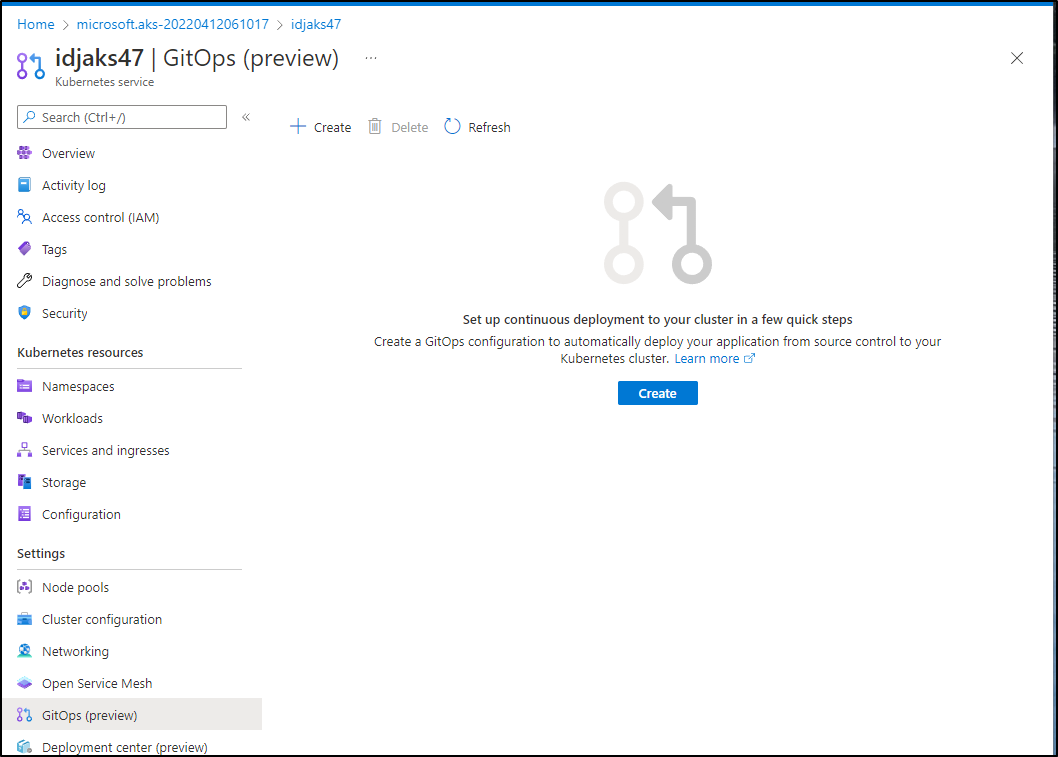

Let’s try a basic GitOps setup to the default namespace. This should be the simplest path

/content/images/2022/04/dockerwithtests2-36.png

set to default and cluster scope

/content/images/2022/04/dockerwithtests2-37.png

we’ll add our Github URL (https://github.com/idjohnson/dockerWithTests2.git) and set to main

/content/images/2022/04/dockerwithtests2-38.png

add a simple kustomization (need at least one)

/content/images/2022/04/dockerwithtests2-39.png

and chose to create

/content/images/2022/04/dockerwithtests2-40.png

Perhaps it was due to adding Policy? I cannot be sure, but this time it seems to be on track to setup GitOps

/content/images/2022/04/dockerwithtests2-41.png

and now it succeeds

/content/images/2022/04/dockerwithtests2-42.png

We can look at details

/content/images/2022/04/dockerwithtests2-43.png

The pods did not launch, so we can check the Configuration Objects to see why

/content/images/2022/04/dockerwithtests2-44.png

I’ll change my namespace in the yaml (and create it on the fly)

/content/images/2022/04/dockerwithtests2-45.png

We can now see that the simplepath configuration is shown as healthy and compliant

/content/images/2022/04/dockerwithtests2-47.png

and that the new namespace was created

/content/images/2022/04/dockerwithtests2-46.png

And we can see our container referenced:

/content/images/2022/04/dockerwithtests2-48.png

apiVersion: v1
kind: Service
metadata:
  name: nginx-app-svc
  namespace: test
spec:
  type: LoadBalancer
  ports:
  - port: 80
  selector:
    run: my-nginx

Let’s create a service to ingress traffic

builder@DESKTOP-QADGF36:~/Workspaces/dockerWithTests2/k8s$ git diff
diff --git a/k8s/deployment.yaml b/k8s/deployment.yaml
index e719506..6d8e201 100644
--- a/k8s/deployment.yaml
+++ b/k8s/deployment.yaml
@@ -25,3 +25,15 @@ spec:
         image: nginx
         ports:
         - containerPort: 80
+---
+apiVersion: v1
+kind: Service
+metadata:
+  name: nginx-run-svc
+  namespace: test
+spec:
+  type: LoadBalancer
+  ports:
+  - port: 80
+  selector:
+    run: my-nginx
builder@DESKTOP-QADGF36:~/Workspaces/dockerWithTests2/k8s$ cat deployment.yaml
kind: Namespace
apiVersion: v1
metadata:
  name: test
  labels:
    name: test
---
apiVersion: apps/v1
kind: Deployment
metadata:
  name: my-nginx
  namespace: test
spec:
  selector:
    matchLabels:
      run: my-nginx
  replicas: 2
  template:
    metadata:
      labels:
        run: my-nginx
    spec:
      containers:
      - name: my-nginx
        image: nginx
        ports:
        - containerPort: 80
---
apiVersion: v1
kind: Service
metadata:
  name: nginx-run-svc
  namespace: test
spec:
  type: LoadBalancer
  ports:
  - port: 80
  selector:
    run: my-nginx
builder@DESKTOP-QADGF36:~/Workspaces/dockerWithTests2/k8s$ git add deployment.yaml
builder@DESKTOP-QADGF36:~/Workspaces/dockerWithTests2/k8s$ git commit -m "add svc with LB"
[main 816ed91] add svc with LB
 1 file changed, 12 insertions(+)
builder@DESKTOP-QADGF36:~/Workspaces/dockerWithTests2/k8s$ git push
Enumerating objects: 7, done.
Counting objects: 100% (7/7), done.
Delta compression using up to 16 threads
Compressing objects: 100% (4/4), done.
Writing objects: 100% (4/4), 517 bytes | 517.00 KiB/s, done.
Total 4 (delta 2), reused 0 (delta 0)
remote: Resolving deltas: 100% (2/2), completed with 2 local objects.
To https://github.com/idjohnson/dockerWithTests2.git
   b325185..816ed91  main -> main

Note: we could also create it on the fly in the portal (but code is better):

/content/images/2022/04/dockerwithtests2-49.png

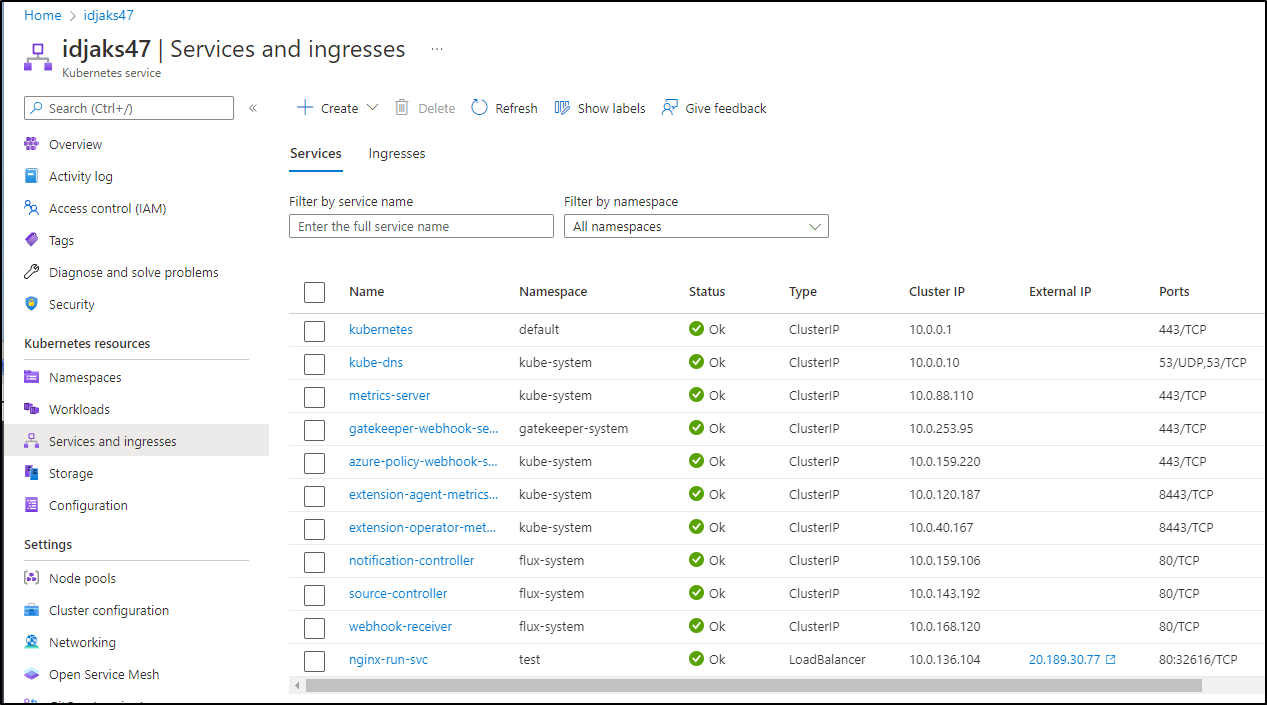

This creates a service

/content/images/2022/04/dockerwithtests2-50.png

However, it doesn’t seem to load a page

/content/images/2022/04/dockerwithtests2-51.png

The reason is Ronin operates on port 8000, not 80. We can actually correct this in code and deploy via Gitops (Flux to sync in 2m)

/content/images/2022/04/dockerwithtests2-52.png

We simply need to change the containerport in the deployment yaml

builder@DESKTOP-QADGF36:~/Workspaces/dockerWithTests2/k8s$ git diff
diff --git a/k8s/deployment.yaml b/k8s/deployment.yaml
index 6d8e201..56b6cca 100644
--- a/k8s/deployment.yaml
+++ b/k8s/deployment.yaml
@@ -24,7 +24,7 @@ spec:
       - name: my-nginx
         image: nginx
         ports:
-        - containerPort: 80
+        - containerPort: 8000
 ---
 apiVersion: v1
 kind: Service
builder@DESKTOP-QADGF36:~/Workspaces/dockerWithTests2/k8s$ git add deployment.yaml
builder@DESKTOP-QADGF36:~/Workspaces/dockerWithTests2/k8s$ git commit -m "Change containerport to 8000"
[main 207654a] Change containerport to 8000
 1 file changed, 1 insertion(+), 1 deletion(-)
builder@DESKTOP-QADGF36:~/Workspaces/dockerWithTests2/k8s$ git push
Enumerating objects: 7, done.
Counting objects: 100% (7/7), done.
Delta compression using up to 16 threads
Compressing objects: 100% (4/4), done.
Writing objects: 100% (4/4), 398 bytes | 398.00 KiB/s, done.
Total 4 (delta 2), reused 0 (delta 0)
remote: Resolving deltas: 100% (2/2), completed with 2 local objects.
To https://github.com/idjohnson/dockerWithTests2.git
   816ed91..207654a  main -> main

We can see when a revision is pulled in

/content/images/2022/04/dockerwithtests2-53.png

however, due to not forcing, the service did not change

builder@DESKTOP-QADGF36:~/Workspaces/dockerWithTests2/k8s$ kubectl get svc -n test
NAME            TYPE           CLUSTER-IP     EXTERNAL-IP    PORT(S)        AGE
nginx-run-svc   LoadBalancer   10.0.136.104   20.189.30.77   80:32616/TCP   14m
builder@DESKTOP-QADGF36:~/Workspaces/dockerWithTests2/k8s$ git diff
diff --git a/k8s/deployment.yaml b/k8s/deployment.yaml
index 56b6cca..c4ae3ec 100644
--- a/k8s/deployment.yaml
+++ b/k8s/deployment.yaml
@@ -29,7 +29,7 @@ spec:
 apiVersion: v1
 kind: Service
 metadata:
-  name: nginx-run-svc
+  name: nginx-run-svc2
   namespace: test
 spec:
   type: LoadBalancer
builder@DESKTOP-QADGF36:~/Workspaces/dockerWithTests2/k8s$ git add deployment.yaml
builder@DESKTOP-QADGF36:~/Workspaces/dockerWithTests2/k8s$ git commit -m "Update name of service to force updated"
[main 66c0055] Update name of service to force updated
 1 file changed, 1 insertion(+), 1 deletion(-)
builder@DESKTOP-QADGF36:~/Workspaces/dockerWithTests2/k8s$ git push
Enumerating objects: 7, done.
Counting objects: 100% (7/7), done.
Delta compression using up to 16 threads
Compressing objects: 100% (4/4), done.
Writing objects: 100% (4/4), 404 bytes | 404.00 KiB/s, done.
Total 4 (delta 2), reused 0 (delta 0)
remote: Resolving deltas: 100% (2/2), completed with 2 local objects.
To https://github.com/idjohnson/dockerWithTests2.git
   207654a..66c0055  main -> main

We can watch when it was applied

/content/images/2022/04/dockerwithtests2-54.png

Still not working, I double checked my YAML and saw it needed to set the Target port as it was not the standard port 80

builder@DESKTOP-QADGF36:~/Workspaces/dockerWithTests2$ git diff
diff --git a/k8s/deployment.yaml b/k8s/deployment.yaml
index c4ae3ec..1e6da6c 100644
--- a/k8s/deployment.yaml
+++ b/k8s/deployment.yaml
@@ -29,11 +29,14 @@ spec:
 apiVersion: v1
 kind: Service
 metadata:
-  name: nginx-run-svc2
+  name: nginx-run-svc
   namespace: test
 spec:
   type: LoadBalancer
   ports:
   - port: 80
+    targetPort: 8000
+    protocol: TCP
+    name: http
   selector:
     run: my-nginx

And now see our original service external IP properly serve traffic (redirecting 80 to 8000)

/content/images/2022/04/dockerwithtests2-55.png

Solving the fixed tag

We have one last thing to change. Right now, we are fixed to the ‘cj3’ tag

$ cat kustomization.yaml
resources:
- deployment.yaml
images:
- name: nginx
  newName: idjacrdemo02.azurecr.io/dockerwithtests
  newTag: cj3

We can change to:

  1. build and push a standarddev tag
  2. use that in our kustomization for the image override
  3. set our deployment to always pull the image (since we are re-using a tag)

We need to update our ACR Task to build and push another tag, this time ‘devlatest’

builder@DESKTOP-QADGF36:~/Workspaces/dockerWithTests2$ cat taskmulti.yaml
version: v1.1.0
steps:
# Build target image
- build: -t {{.Run.Registry}}/dockerwithtests:devlatest -t {{.Run.Registry}}/dockerwithtests:{{.Run.ID}} -t {{.Run.Registry}}/dockerwithtests:{{.Run.Commit}} -f Dockerfile .
# Push image
- push:
  - {{.Run.Registry}}/dockerwithtests:{{.Run.Commit}}
- push:
  - {{.Run.Registry}}/dockerwithtests:{{.Run.ID}}
- push:
  - {{.Run.Registry}}/dockerwithtests:devlatest

Push the change will trigger ACR to rebuild

/content/images/2022/04/dockerwithtests2-56.png

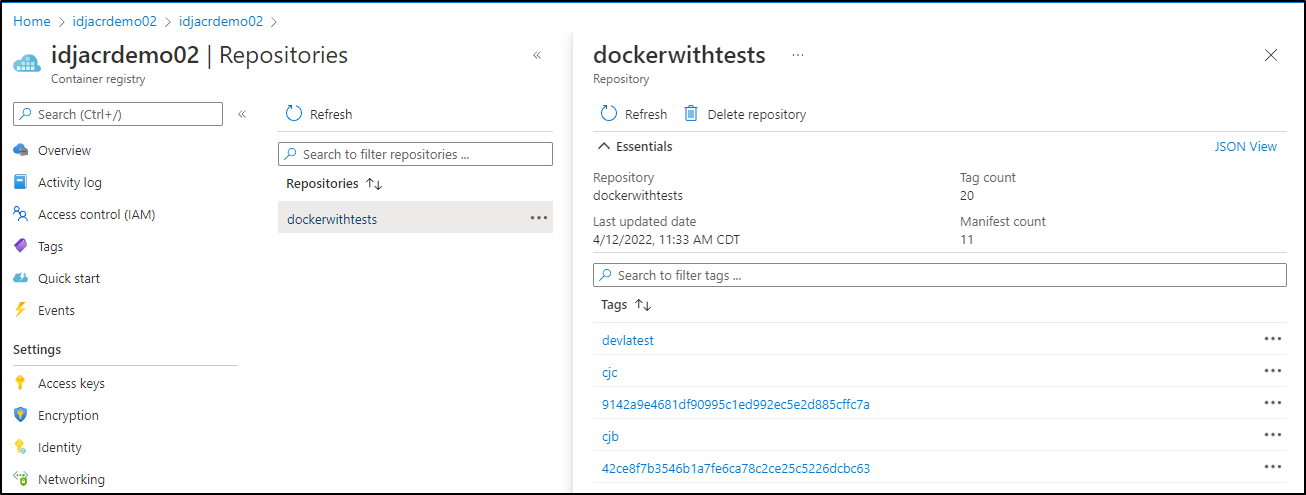

And now we see a ‘devlatest’ tag

/content/images/2022/04/dockerwithtests2-57.png

We see our ReplicaSet change over

/content/images/2022/04/dockerwithtests2-58.png

And the LB is already serving the traffic from the new pods

/content/images/2022/04/dockerwithtests2-59.png

Summary

We leveraged two Azure PaaS offerings, Azure Container Registry (ACR) and Azure Kubernetes Service (AKS) to work out a CICD-less GitOps workflow that automatically builds, tests, and deploys a containerized app to Kubernetes. We primarily leveraged ACR Tasks for the GitOps flow on container builds (Build and Test) and the GitOps (Flux V2) feature of AKS. However, it is worth noting that the GitOps feature in AKS is just a convenient wrapper around Flux v2.

We also leveraged a nice free webhook testing site, hookdeck, to verify our webhook payloads with ACR

/content/images/2022/04/dockerwithtests2-61.png

It’s worth noting we took a minor shortcut to get a full CICD-less deployment and that was to use an Always ImagePull Policy and reused a dev label. This could create a cluster of mixed images if we use multiple deployments with the same image name. However, this was because at present, Flux does not have the power to natively, in-line, substitute the SHA for the image. And since we are avoiding adding CICD tooling like Github, Gitlab, Jenkins or Azure DevOps, we have no other ability to edit inline the YAML.

However, as we tag all images with the immutable SHA, we know, from the manifest, which image matches devlatest. Additionally, we would likely have a follow-up release flow to move this app through deployment stages to production (which would likely involve regression and deeper integration testing).

The real goal here was to show that developers can get away from needing CICD tool suite to build and deploy containerized apps. We can follow ReleaseFlow and orchestrate building, testing and deploying apps without more tooling layers.

And someday I would expect Flux to expose inline variables (though, for the record, i did check):

/content/images/2022/04/dockerwithtests2-60.png

docker containers github hookdeck acr azure

Isaac Johnson

Isaac Johnson

Cloud Solutions Architect

Isaac is a CSA and DevOps engineer who focuses on cloud migrations and devops processes. He also is a dad to three wonderful daughters (hence the references to Princess King sprinkled throughout the blog).

Theme built by C.S. Rhymes
